Atlas TTC301 Tire Changer + WBT-210 Wheel Balancer Combo

TTC301 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo by Atlas

Is your shop struggling to keep up with the diverse wheel sizes rolling through your doors? The Atlas TC301 and WBT-210 combo package is here to save the day. This versatile pair handles everything from passenger cars to semi-trucks, with the TC301 changing tires up to 63" in diameter and the WBT-210 balancing wheels up to 47" wide.

But here's where it gets really interesting: this combo doesn't just handle a wide range of wheels - it does it with style and precision. The TC301's electric/hydraulic chuck clamps rims with up to 6,614 lbs of force, while the WBT-210's computer-controlled system balances wheels at 150 rpm for cars and 90 rpm for trucks. With features like automatic start/stop, self-calibration, and a wired mobile control unit, you'll breeze through jobs faster than ever. Don't let another day go by watching potential profits roll out of your shop.

Tire Changer TTC301+ Wheel Balancer WBT-210 Specification

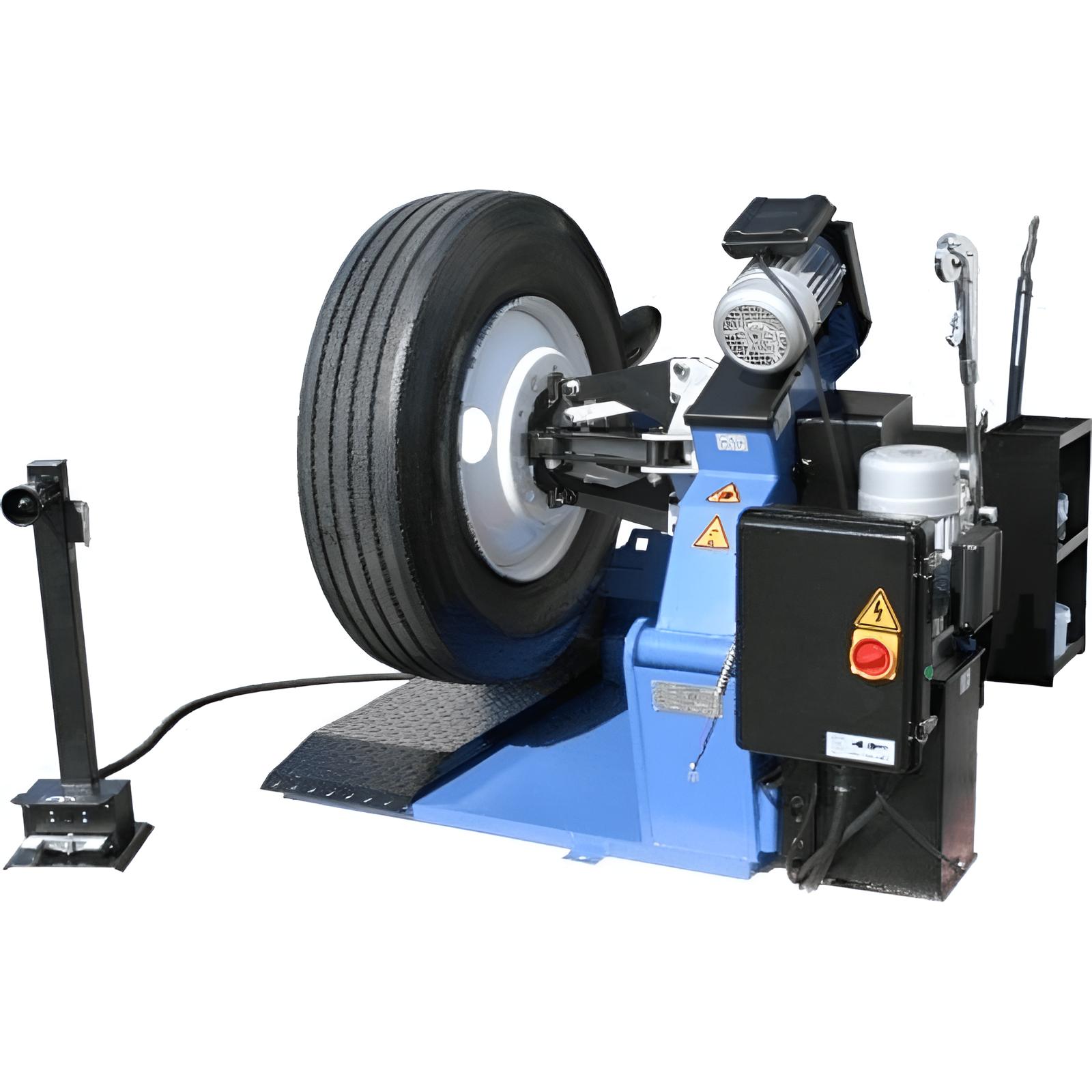

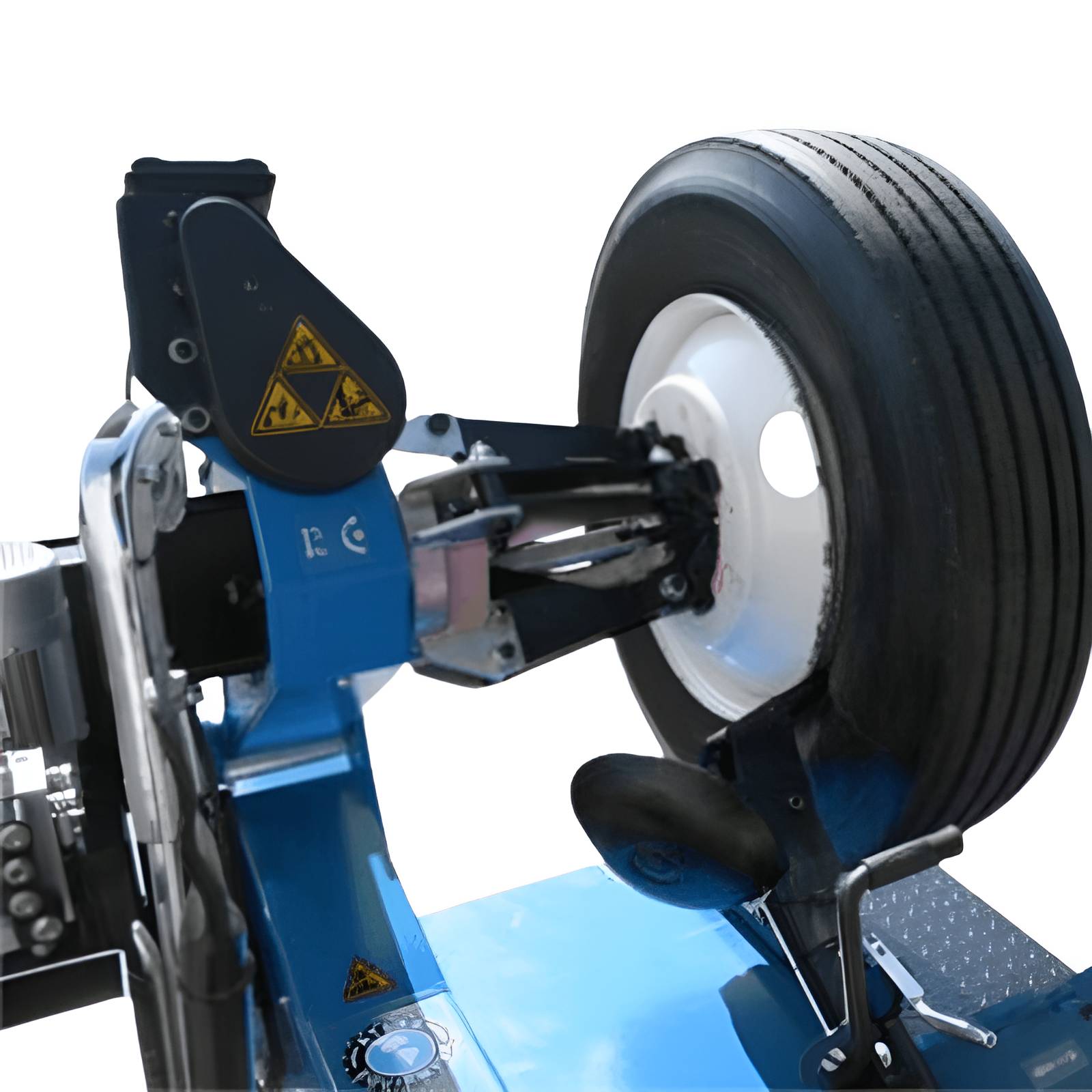

Atlas TC301 Specifications:

• Rim Clamping Range: 13" - 27"
• Minimum Clamping Size with Alloy Adapters: 6 3/8"
• Maximum Wheel Weight: 3,300 lbs.
• Maximum Tire Diameter: 63" (5' 3")
• Maximum Tire Width: 30 1/2" (2' 6 1/2")
• Clamping Power: 6,614 lbs.
• Operating Pressure: 0-1885 PSI
• Acoustic Pressure: <70 dBA
• Bead Breaker Force: 4112 lbs.
• Tool Arm Positioning: Manual
• Tool Head Positioning: Manual
• Construction: Single piece frame with solid floor plate
• Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
• Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
• Shipping Weight: 1,390 lbs.

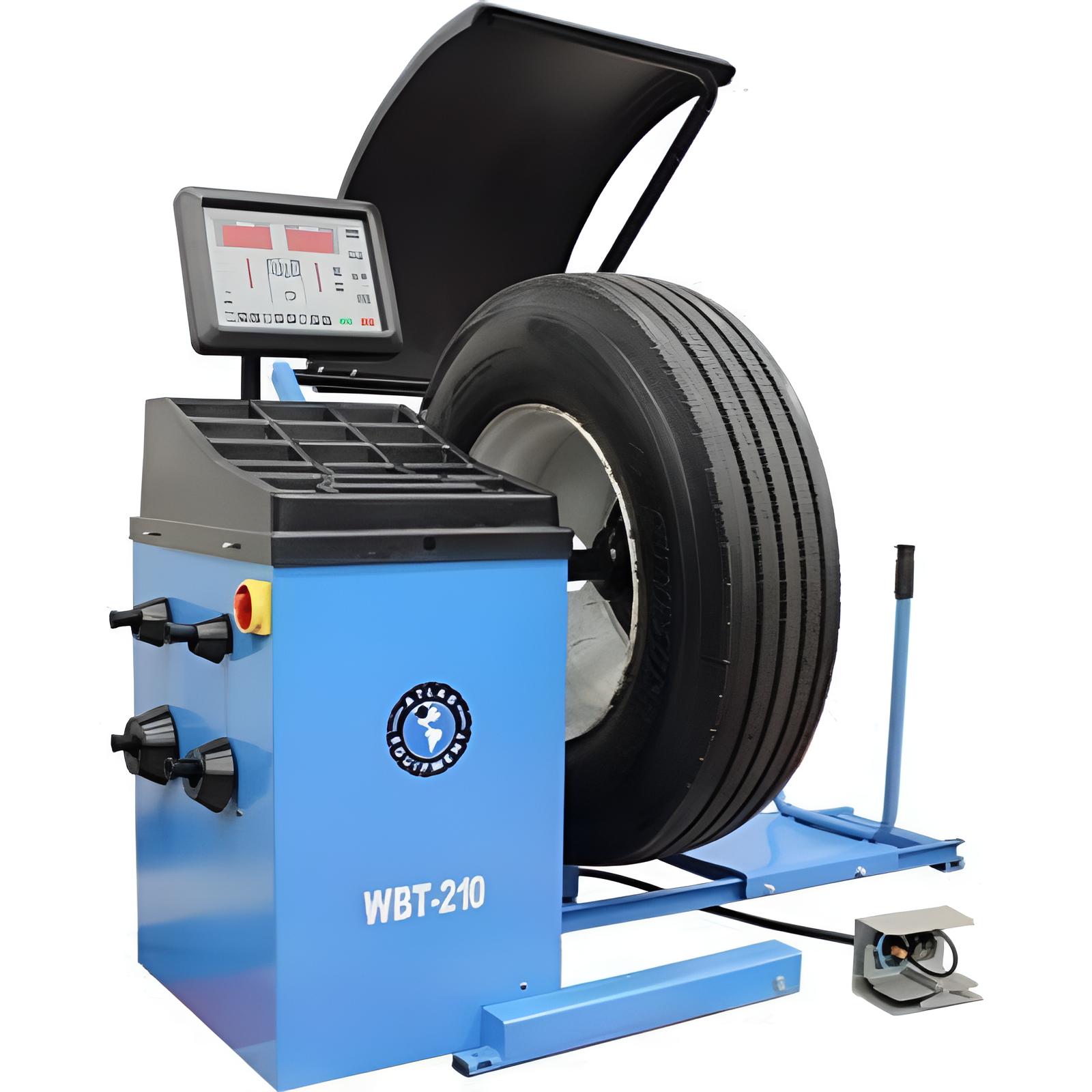

Atlas WBT-210 Specifications:

• Maximum Tire Diameter: 47"
• Rim Sizes (Cars and Light Trucks): 10" - 32"
• Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Maximum Wheel Weight: 440 lbs.
• Balancing Speed: 150 rpm (Car-Light Truck Mode) / 90 rpm (Truck Mode)
• Data Entry: Manual entry for all dimensions
• Measurements: Standard or Metric
• Accuracy: 1 gram (Car-Light Truck Mode) / 10 grams (Truck Mode)
• Weight Position Resolution: 1.4 degrees
• Self Calibration: Yes
• Motor: 1/3 HP
• Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
• Power Supply: 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
• Shipping Weight: 725 lbs.

TTC301 Tire Changer + WBT-210 Wheel Balancer Special Features

TTC301

• Standard Truck Tire Changer
• Handles rims from 13″ to 27″ and tire diameters in excess of 63″
• Accommodates tires with a max width of up to 30 1/2″
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty

WBT-210

• Computer Controlled Heavy Duty Spin Balancer
• Cone sets for car and light truck tires
• Cone and spacer set for truck, bus, or implement tires
• Plastic Quick Release Nut included
• Heavy duty steel wing nut included
• Pneumatic wheel lift (external air supply required)
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading the unbalance between planes
• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers Included
• Wheel Width Calipers Included
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty
• Optional Item(Sold Separately)
  • Large Universal Adapter for WBT-210

Atlas TTC301 + WBT-210 Documentation

  Atlas TTC301 Tire Changer Product Manual

  Atlas WBT-210 Wheel Balancer Product Manual

Atlas TTC301 Tire Changer + WBT-210 Wheel Balancer Sold Separately

• TTC301 Tire Changer
• WBT-210 Wheel Balancer
