Atlas TTC305A Tire Changer + WBT-210 Wheel Balancer Combo

TTC305A Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo by Atlas

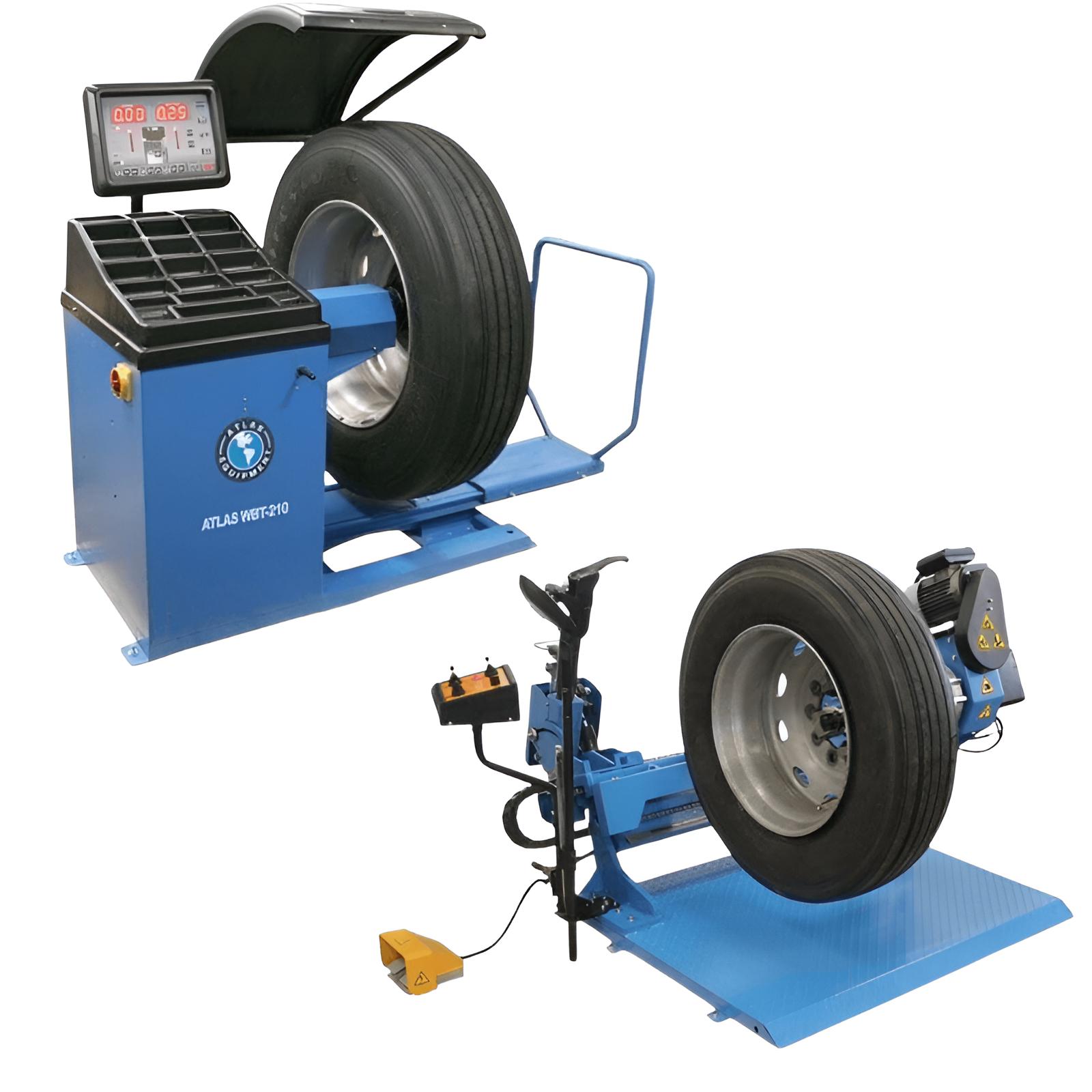

Meet the dynamic duo that's about to transform your tire shop: the Atlas TC305A truck tire changer and WBT-210 wheel balancer combo. The TC305A, a fully automatic marvel, handles rims from 8 to 26 inches and tires up to a whopping 55 inches in diameter. Its partner in crime, the WBT-210, balances everything from dainty 14-inch steelies to hefty 300-pound semi-truck tires with equal finesse.

The TC305A, born from Italian-Asian collaboration, brings automatic precision to your tire changes. Meanwhile, the WBT-210's versatility shines with its ability to balance wheels up to 32 inches and those mud-loving "gumbo-mudders." From passenger cars to semi-trucks, this 1-2 punch has you covered.

Tire Changer TTC305A + Wheel Balancer WBT-210 Specification

Atlas TC305A Specifications

• Rim Clamping Range: 13" - 26"
• Minimum Clamping Size with Alloy Adapters: 8"
• Max Wheel Weight: 838 lbs.
• Max Tire Diameter: 55"
• Max Tire Width: 30 1/2" (2' 6 1/2")
• Clamping Power: 6,600 lbs.
• Operating Pressure: 0-1885 PSI
• Acoustic Pressure: <70dBA
• Bead Breaker Force: 3990 lbs.
• Tool Arm Positioning: Automatic
• Tool Head Positioning: Automatic
• Construction: Single Piece Frame with Solid Floor Plate
• Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
• Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
• Shipping Weight: 1,490 lbs.

Atlas WBT-210 Specifications

• Max Tire Diameter: 47"
• Rim Sizes (Cars and Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max Wheel Weight: 440 lbs.
• Balancing Speed: 150 rpm Car-Light Truck Mode / 90 rpm Truck Mode
• Data Entry: All Dimensions Manual Entry
• Measurements: Standard or Metric
• Accuracy: 1 gram Car-Light Truck Mode / 10 gram Truck Mode
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/3 HP
• Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
• Power Supply: 220v +/- 5% (209-231 volts), 1-phase, 30 amp breaker required

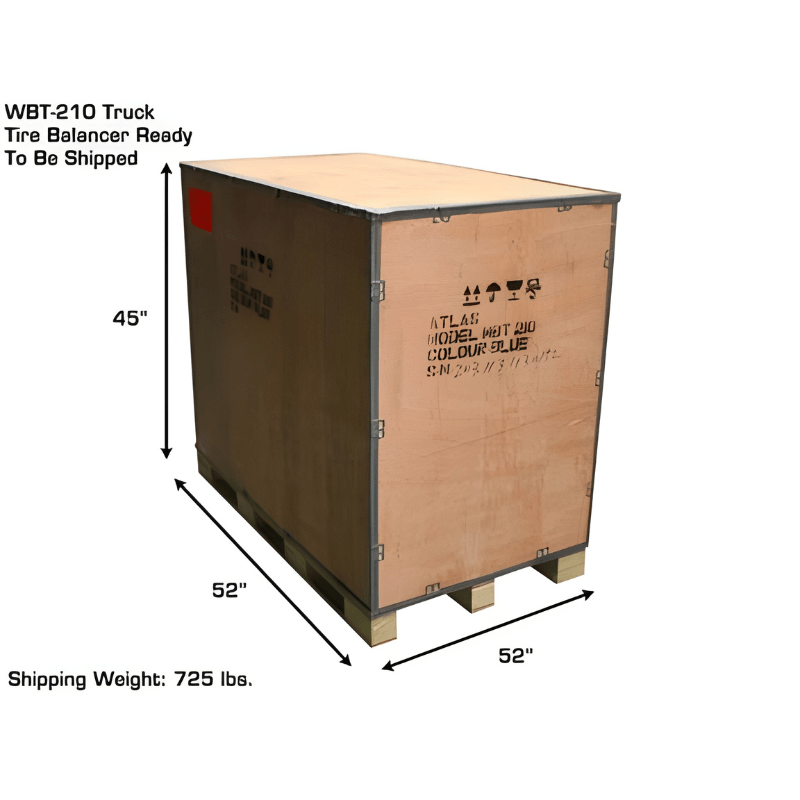

• Shipping Weight: 725 lbs.

TTC305A Tire Changer + WBT-210 Wheel Balancer Special Features

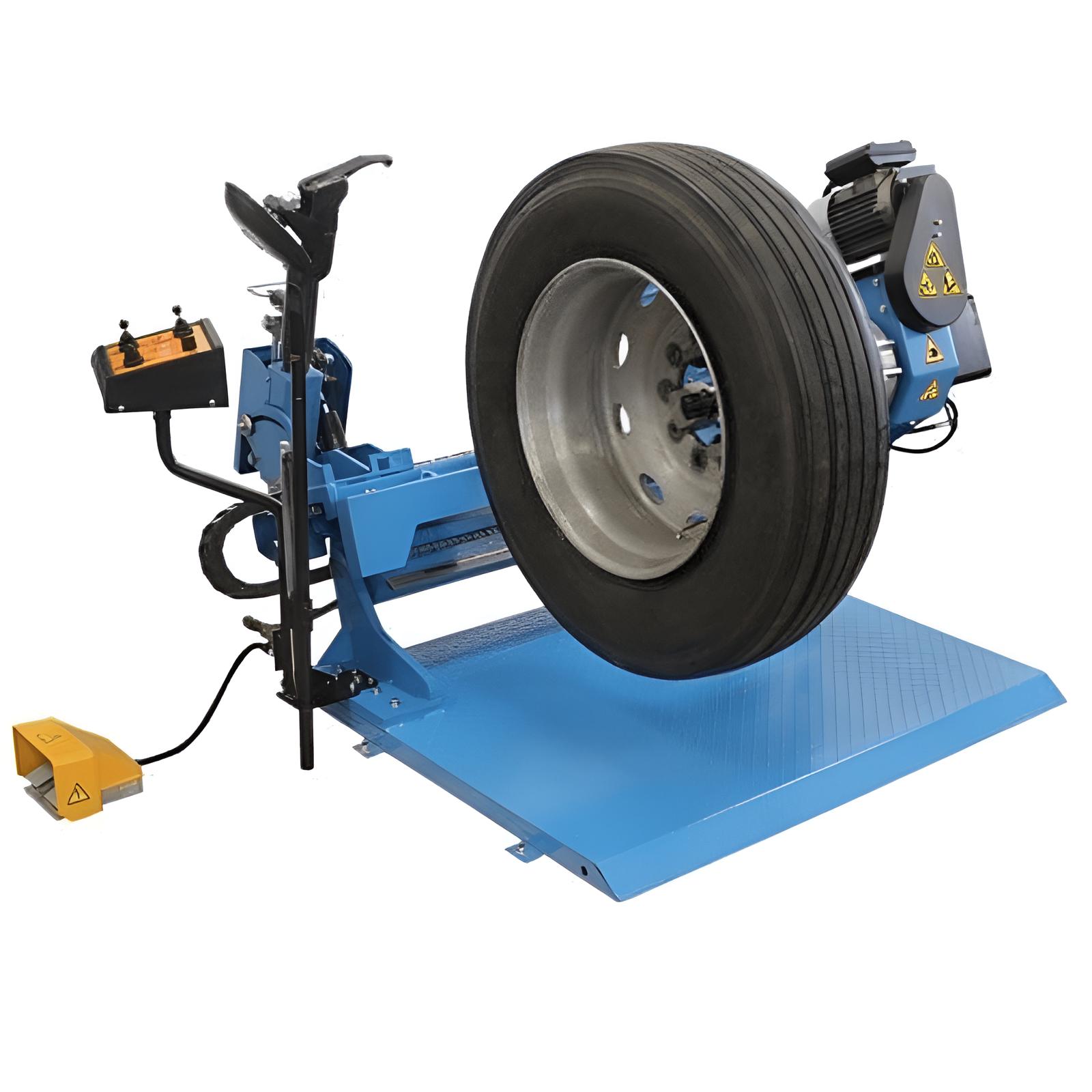

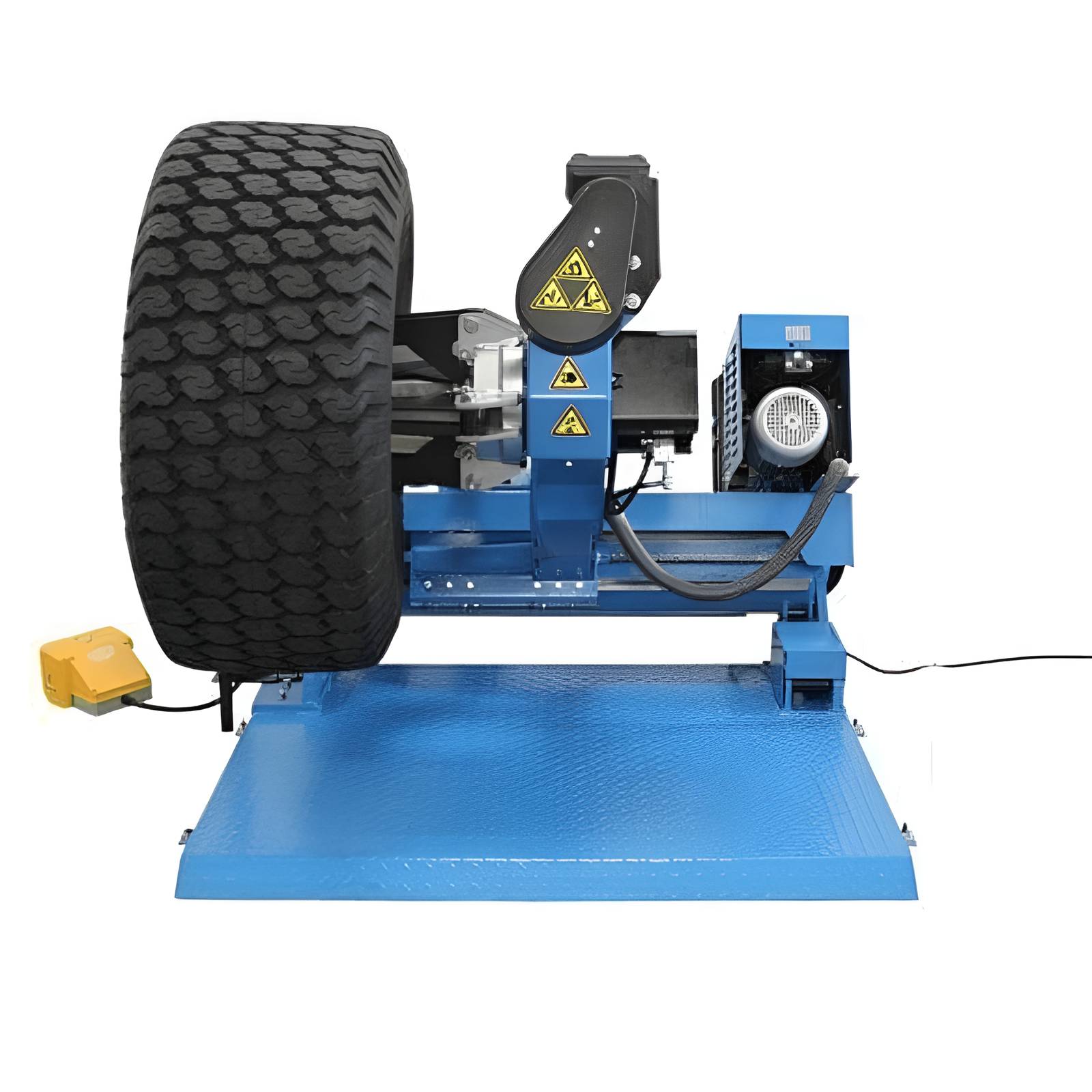

TTC305A

• Fully Automatic Truck Tire Changer
• Handles rims from 8″ to 26″ and tire diameters in excess of 55″
• Accommodates tires with a max width of up to 30 1/2″
• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
• Bead Breaker
• Interchangeable Mount/Demount and Roller Heads

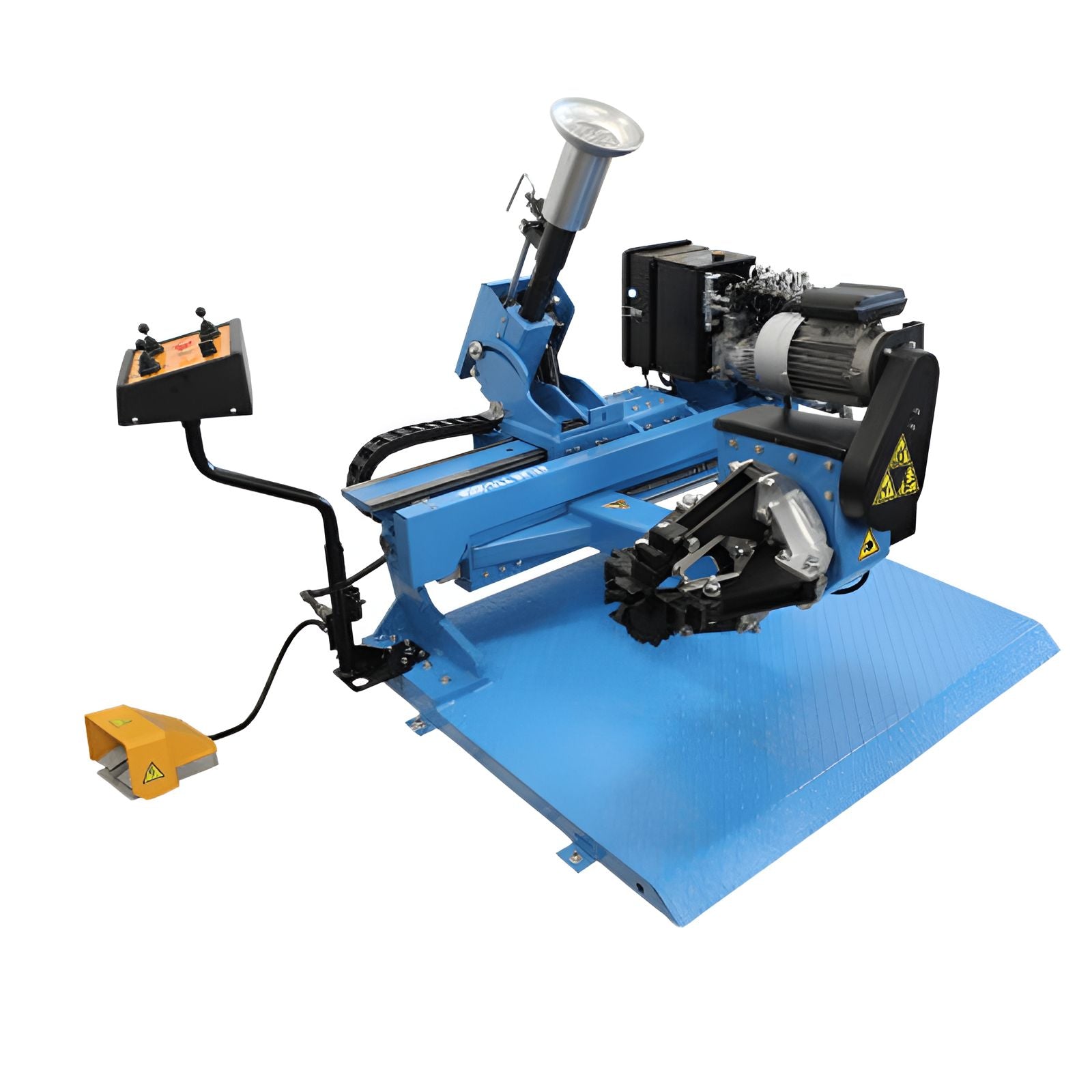

• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions

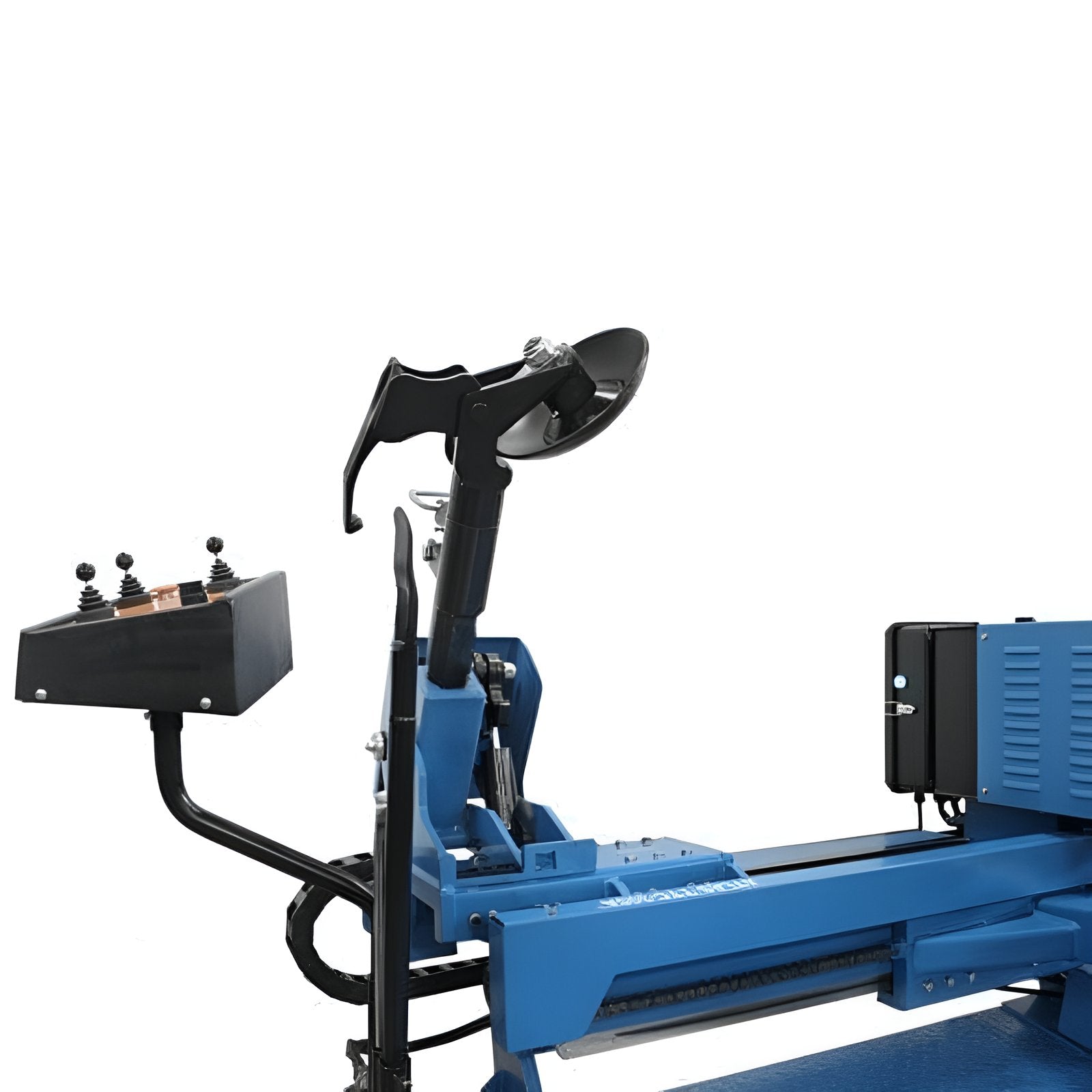

• Mounted Control Unit w/ additional Foot Pedal Controls
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty

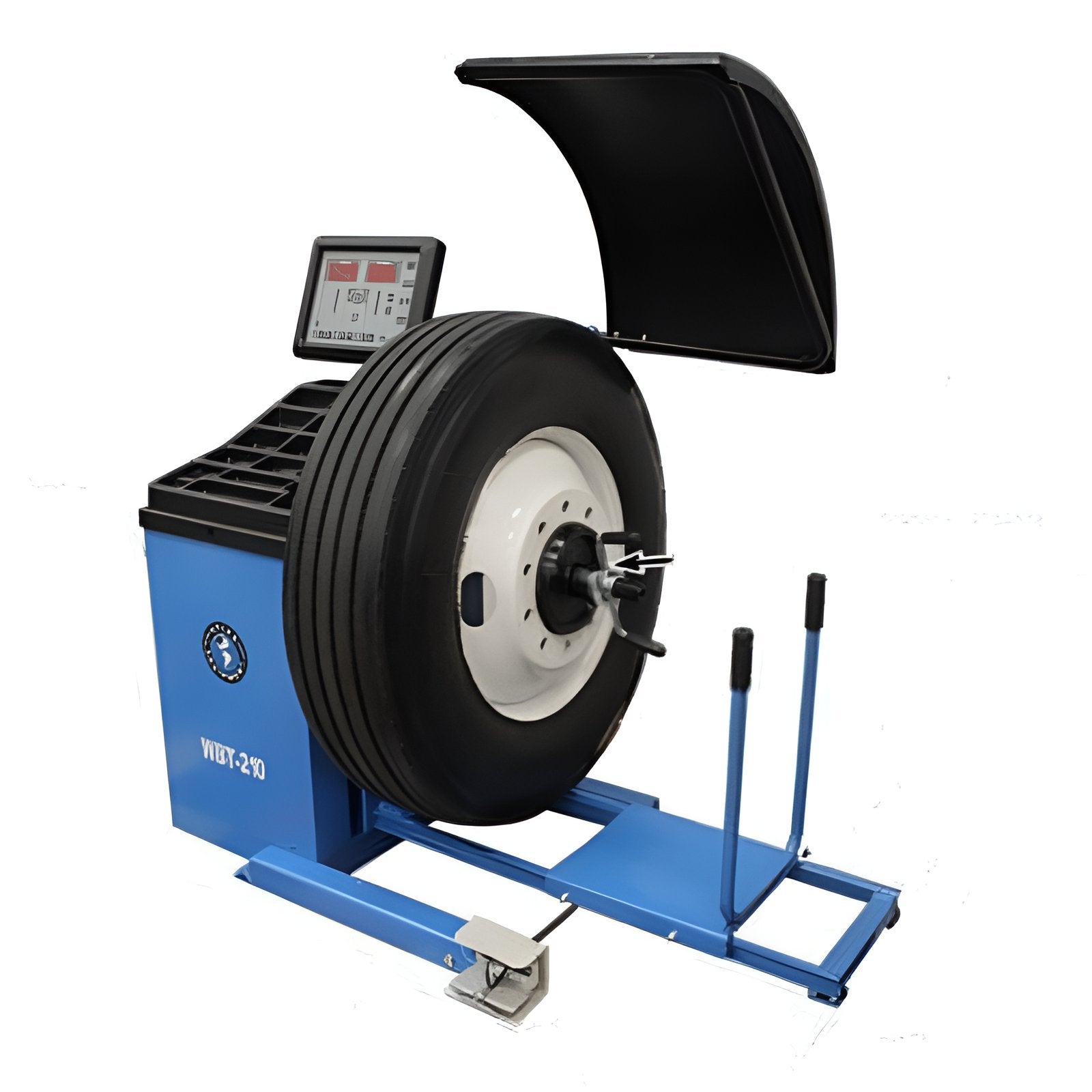

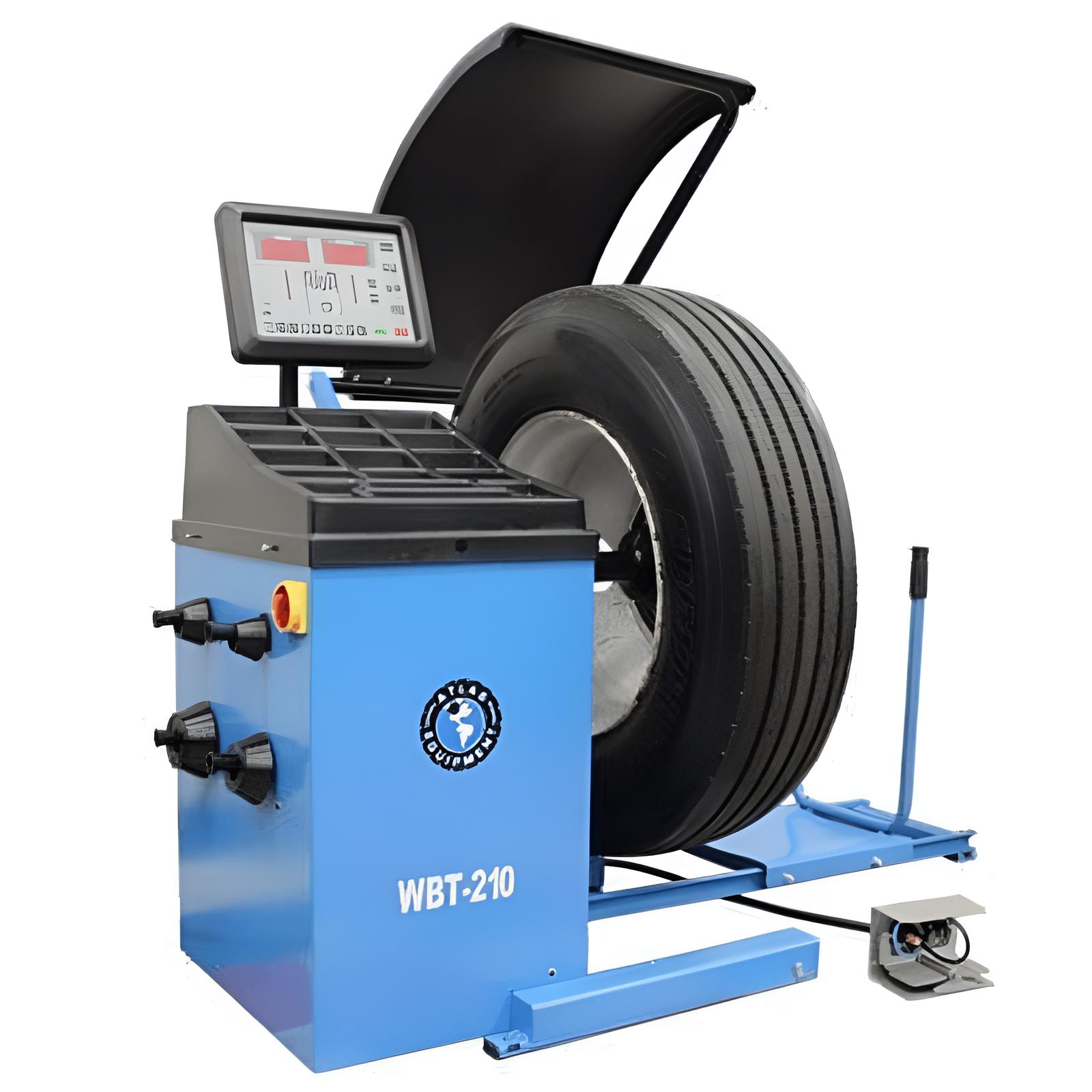

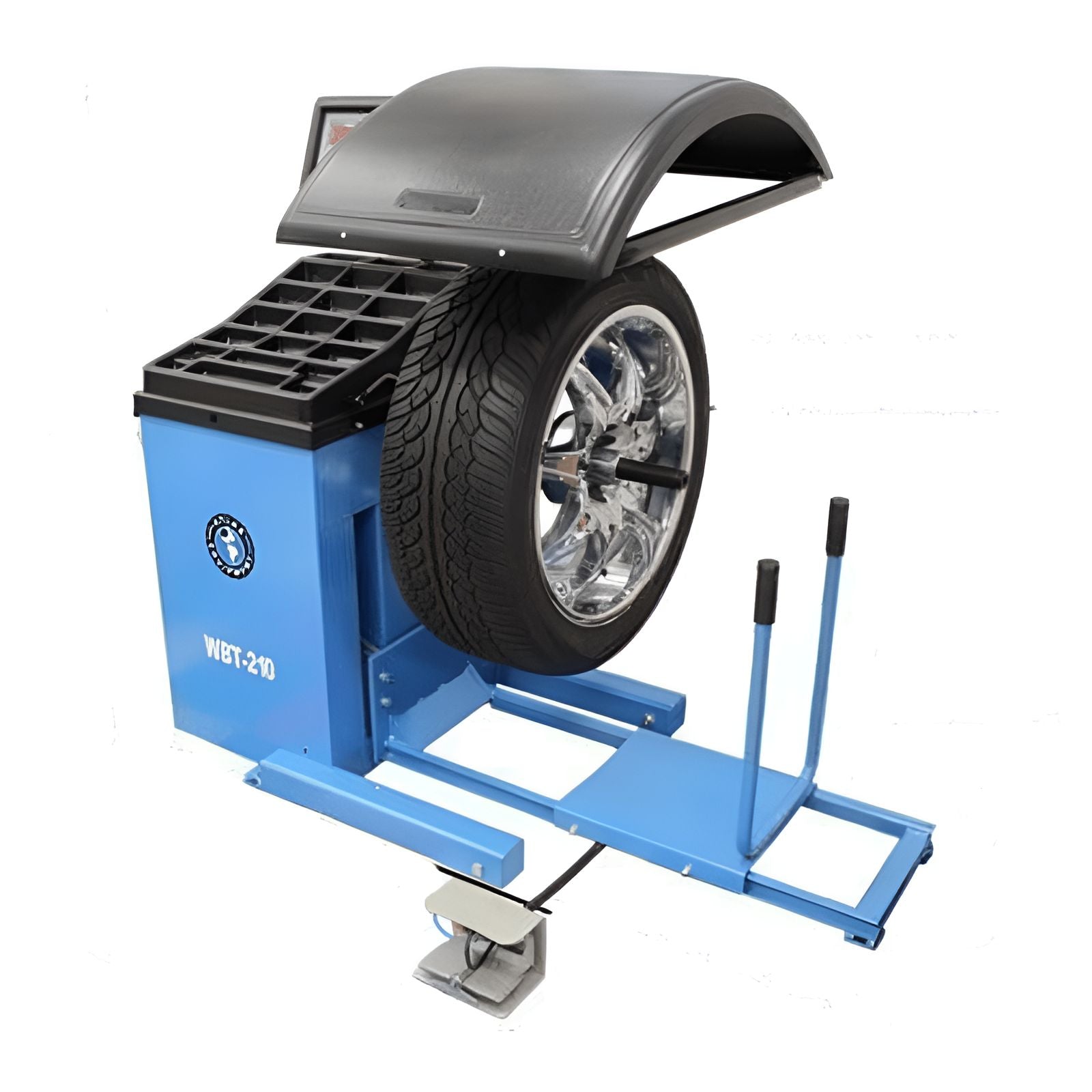

WBT-210

• Computer Controlled Heavy Duty Spin Balancer
• Cone sets for car and light truck tires
• Cone and spacer set for truck, bus, or implement tires
• Plastic Quick Release Nut included
• Heavy duty steel wing nut included
• Pneumatic wheel lift (external air supply required)
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading the unbalance between planes
• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers Included
• Wheel Width Calipers Included
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty
  • Large Universal Adapter for WBT-210

Atlas TTC305A + WBT-210 Documentation

 Atlas TTC305A Tire Changer Product Manual

  Atlas WBT-210 Wheel Balancer Product Manual

Atlas TTC305A Tire Changer Optional Items (sold separately):

• Atlas WBT-210 Heavy Duty Truck Wheel Balancer
• Atlas TTC305A Automated Truck Tire Changer
