iDEAL Mobile Column Lift, MSC-18K-X-236, Two Column Set, 36,000 lbs (ALI Certified)

SKU MSC-18K-X-236
by iDeal
  • Winter Sale Extended - Ends January 31
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $750.00
Original Price $19,999.00
Current Price $19,249.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

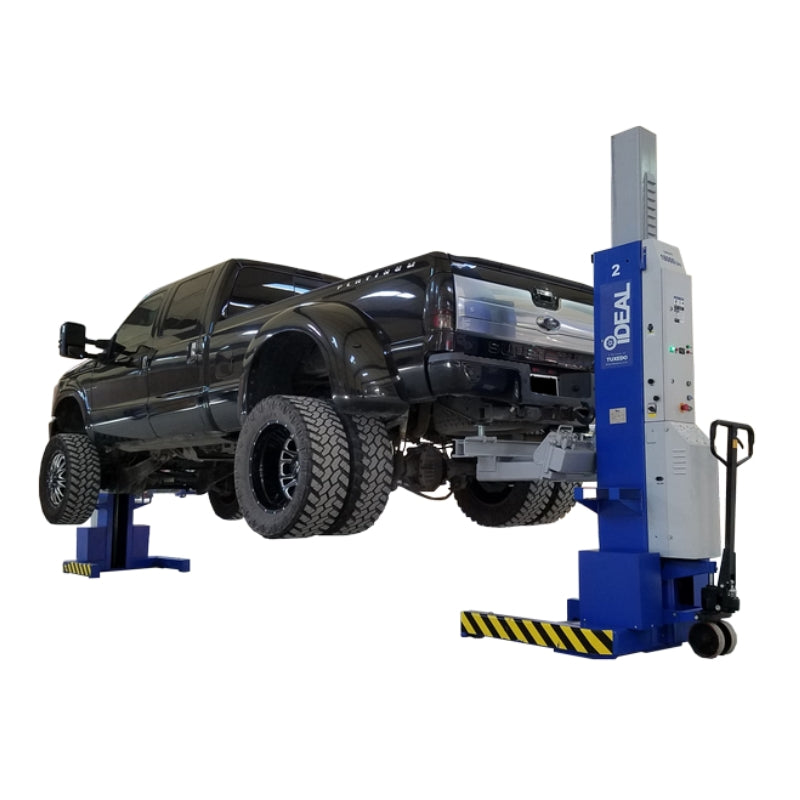

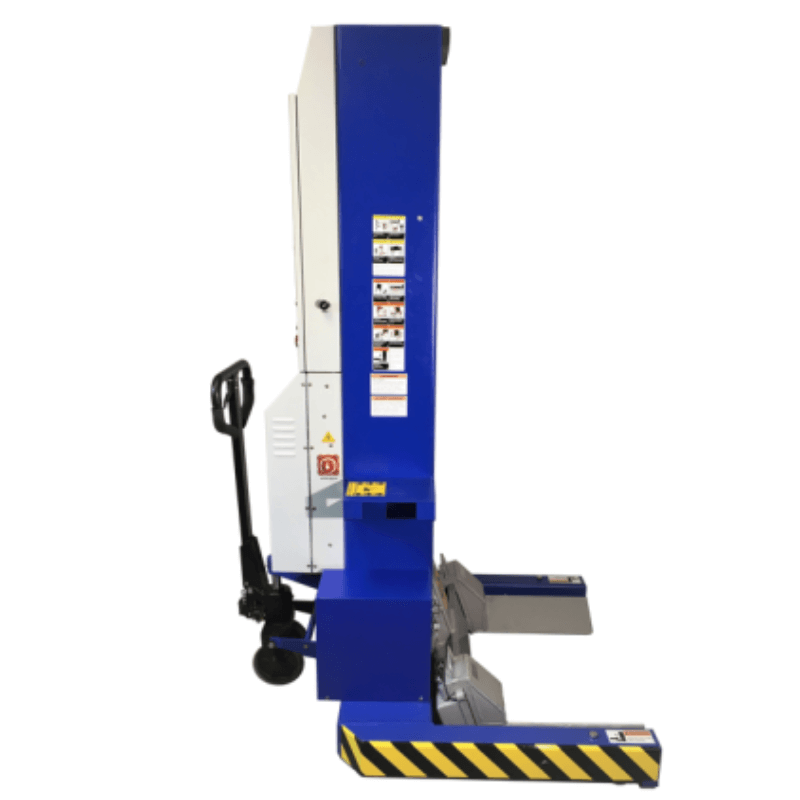

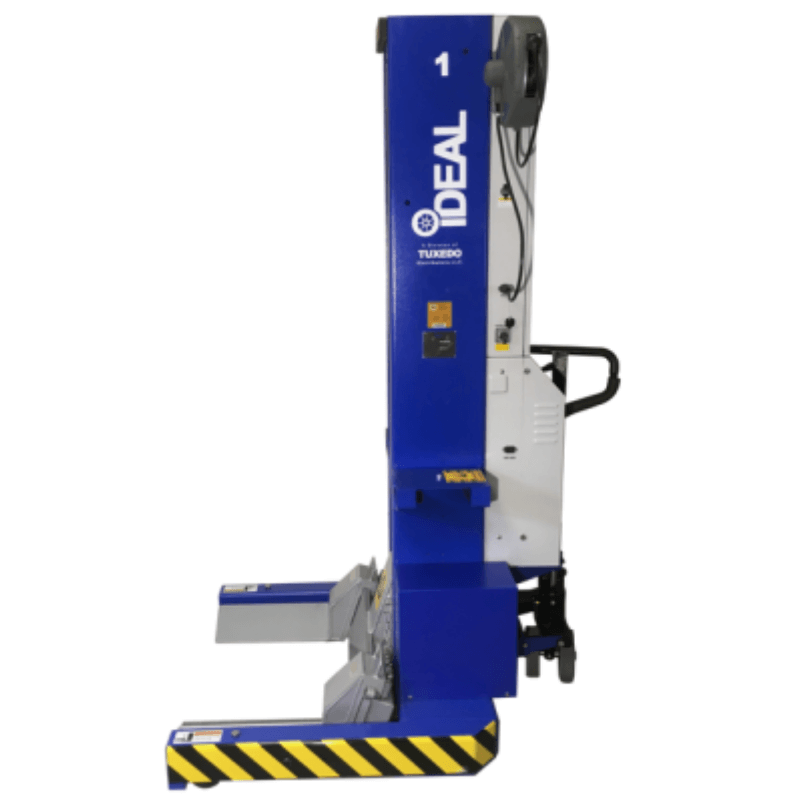

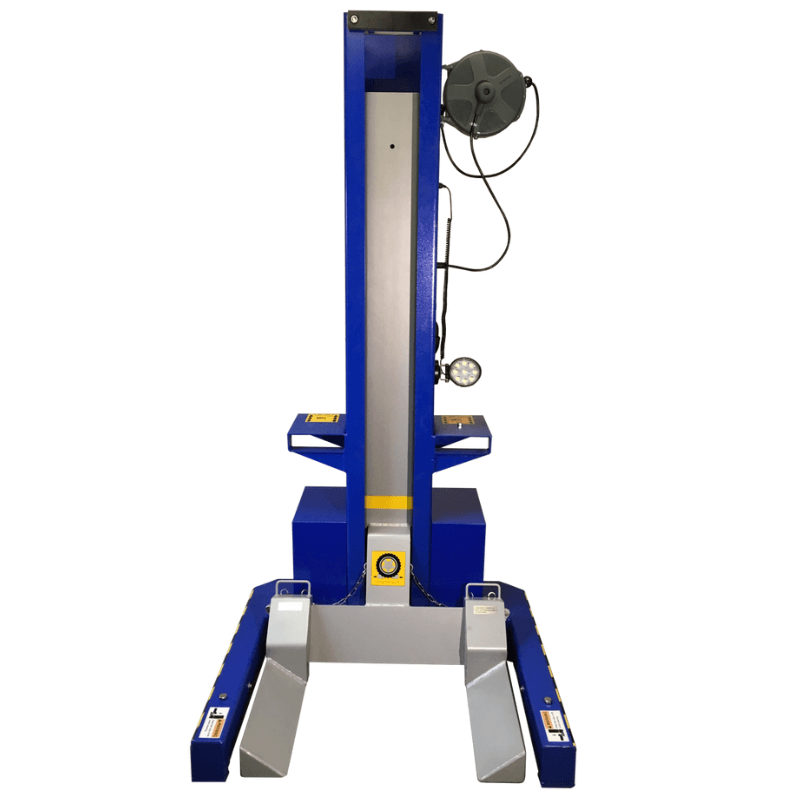

MSC-18K-X-236 Mobile Column Lift by iDeal

This isn't your grandpappy's rusty jackstand. This configuration can lift up to 36,000 lbs, The iDeal MSC-18K-X-236 Mobile Column Lift is like having the Incredible Hulk as your personal assistant - minus the anger issues and purple shorts. This lift doesn't just go up and down like a yo-yo. It's got more tricks up its sleeve than a magician at a truck stop. With independent mechanical locking systems, it's safer than a bubble-wrapped kitten in a padded room.

And let's talk about that U-Shape wiring configuration. No more awkward maneuvering like you're trying to parallel park a blimp. The MSC-18K-X-236, with its fancy LED light and adjustable lifting forks, is ready to transform your garage into a heavy-duty garage haven. Itching for an upgrade? You better scratch that itch.

Mobile Column Lift MSC-18K-X-236 Specifications:

  • MSC-18K-X-236, MSC-18K-X-472, MSC-18K-X-6108
  • Column Configurations: 2 Column, 4 Column, 6 Column
  • Capacity: 36,000 lbs., 72,000 lbs., 108,000 lbs.
  • Charging Voltage: 100-140VAC, 60HX, Single Phase
  • Lifting Height: 67.1″
  • Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
  • Column Width: 44.1″
  • Fork Adjustable Range: 12.6″ – 22″
  • Fork Length: 17.9″
  • Fork to Column Clearance: 10″
  • Rise Time: 100 Seconds
  • Max Distance between Columns: 32.8′
  • Min. Concrete Surface Strength: 3,000PSI
  • Set-Up / Operation: Indoors
  • Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included
  • Batteries Not Included
  • Weight: 3300 lbs
  • Pallet Dimensions: 45"L 96"W 90"H

MSC-18K-X-236 36,000 lbs. Mobile Column Lift Special Features:

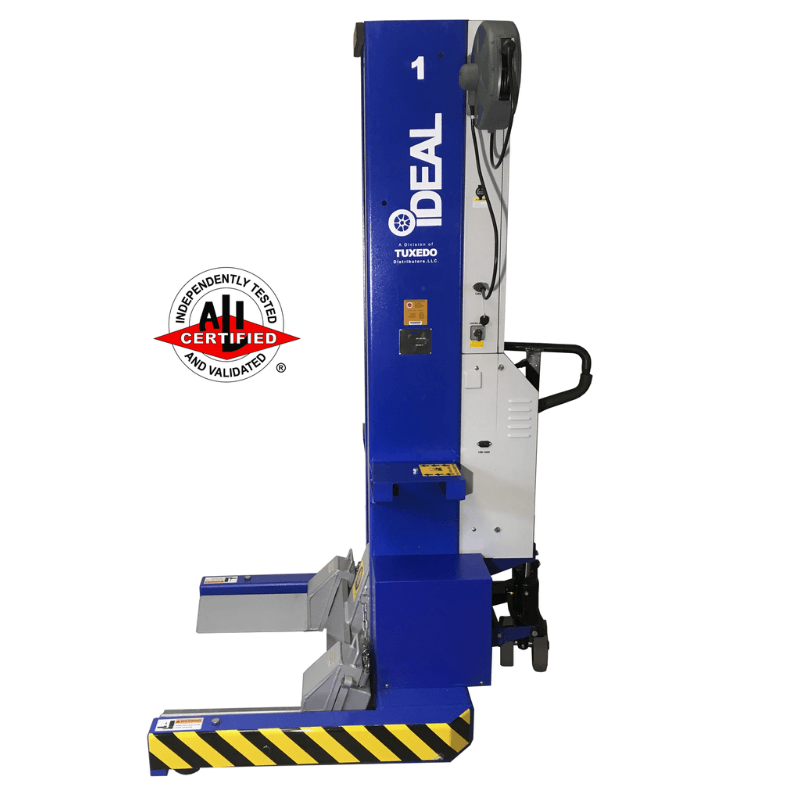

  • ALI Certified
  • 24VDC Battery Operation with Onboard Charging System
  • Communication Cable with Retractable Cable Reels
  • U-Shape Wiring Configuration for quick vehicle entry & exiting
  • Convenient Operation from any Column
  • Independent Mechanical Locking System
  • PLC & Optical Encoder provides continuous synchronization for Columns
  • Easily positioned with Pallet Jack type device with Poly Caster Wheels
  • Adjustable Lifting Forks for the widest range of Wheel Diameters
  • Emergency Switch per each Column, provides the highest safety assurance

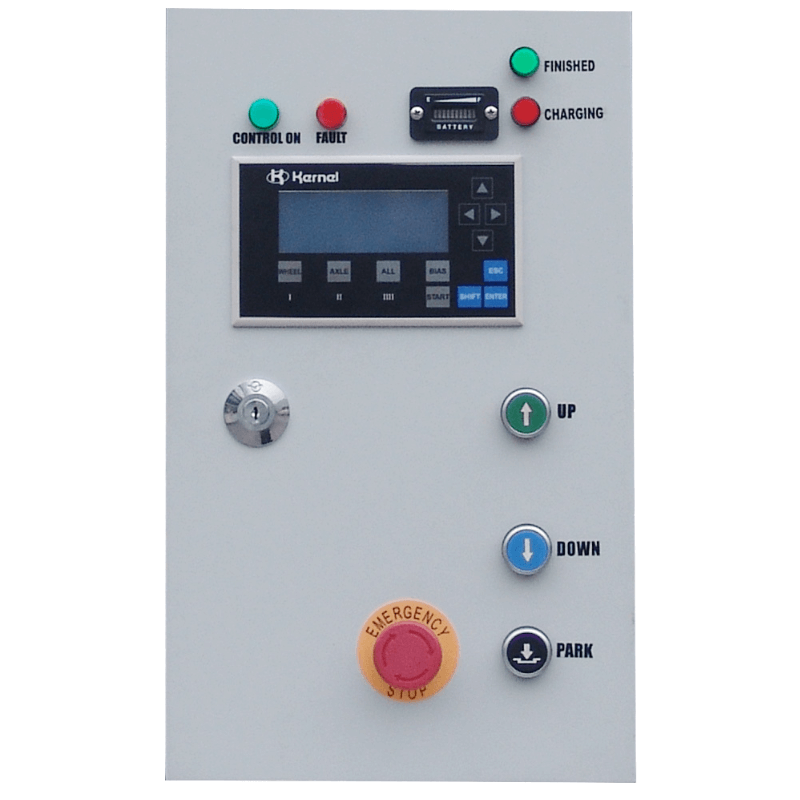

  • Easy to use Master Control Panel for Individual or Paired Synchronized Operation
  • LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
  • Conveniently stored out of the way when not in use to maximize work space
  • Available in Two, Four or Six Column Configurations

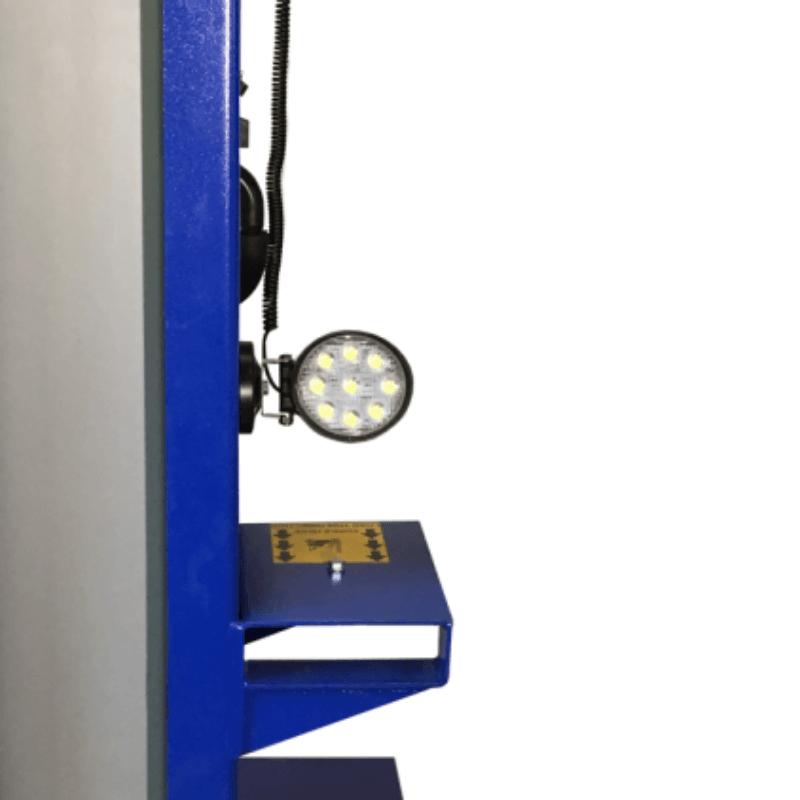

  • New! LED Light with Magnetic Base!!
  • New! Optional MSC ALI Certified Accessories available
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
  • iDeal Warranty:
    One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

iDeal MSC-18K-X-236 Documentation:

Mobile Column Lift MSC-18K-X-236 Lift Product Manual   iDeal MSC-18K-X-236 Mobile Column Lift Product Manual

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • Discount does NOT apply to on-sale items.
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $1499*

*Based on Nationwide Averages - Contact Us to see if we can ship for less.

Warehouse Pickup locations (No shipping charge):

  • Temecula, CA 92590
  • Orlando, FL 32824
  • Kennesaw, GA 30144
  • Elwood, IN 46036
  • Maple Grove, MN 55311
  • Reidsville, NC 27320
  • Bohemia, NY 11715
  • Reading, PA 19605
  • Alvarado, TX 76009
  • West Valley City, UT 84119
MSC-18K-X-236 Mobile Column Lift Diagram
