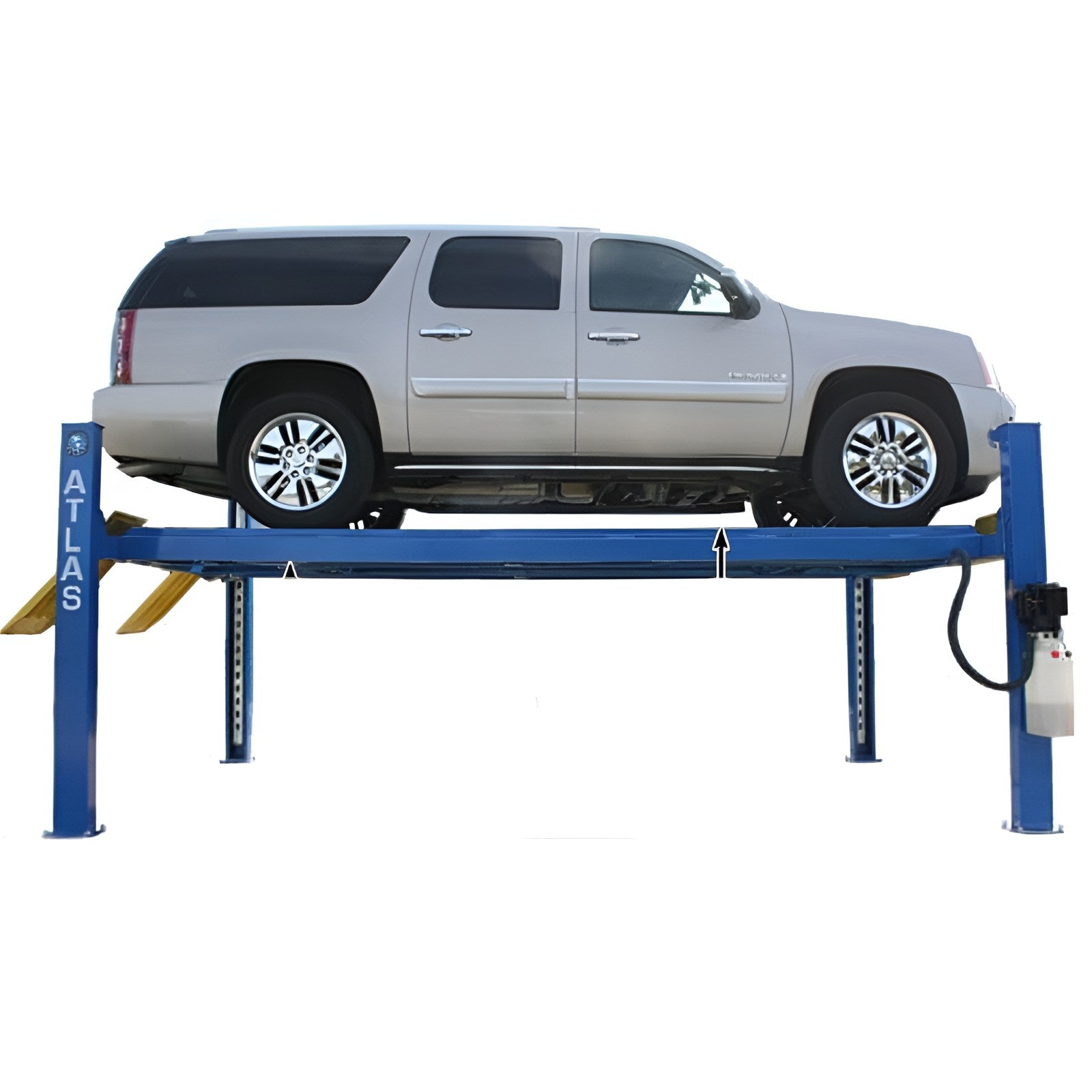

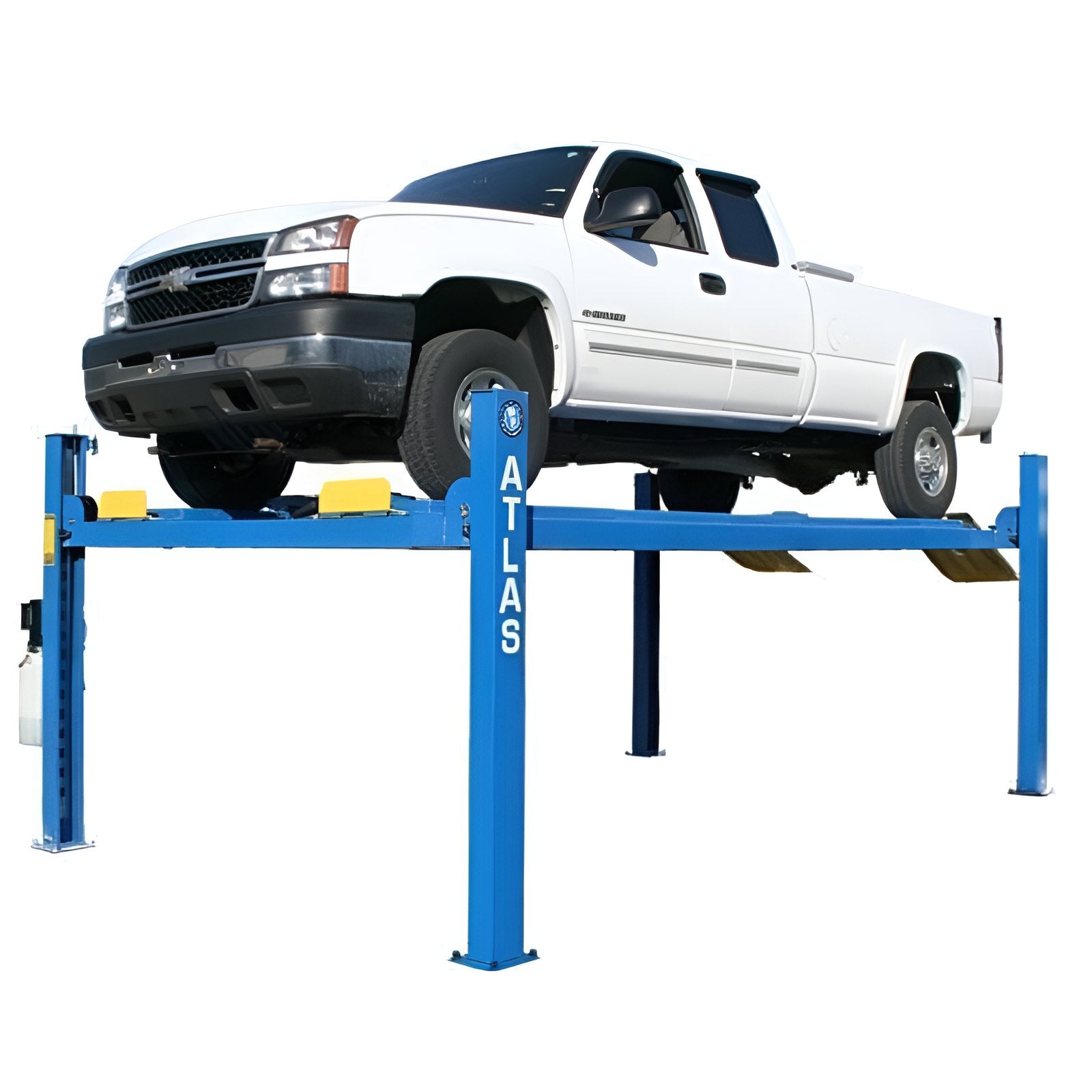

412A Alignment Lift by Atlas

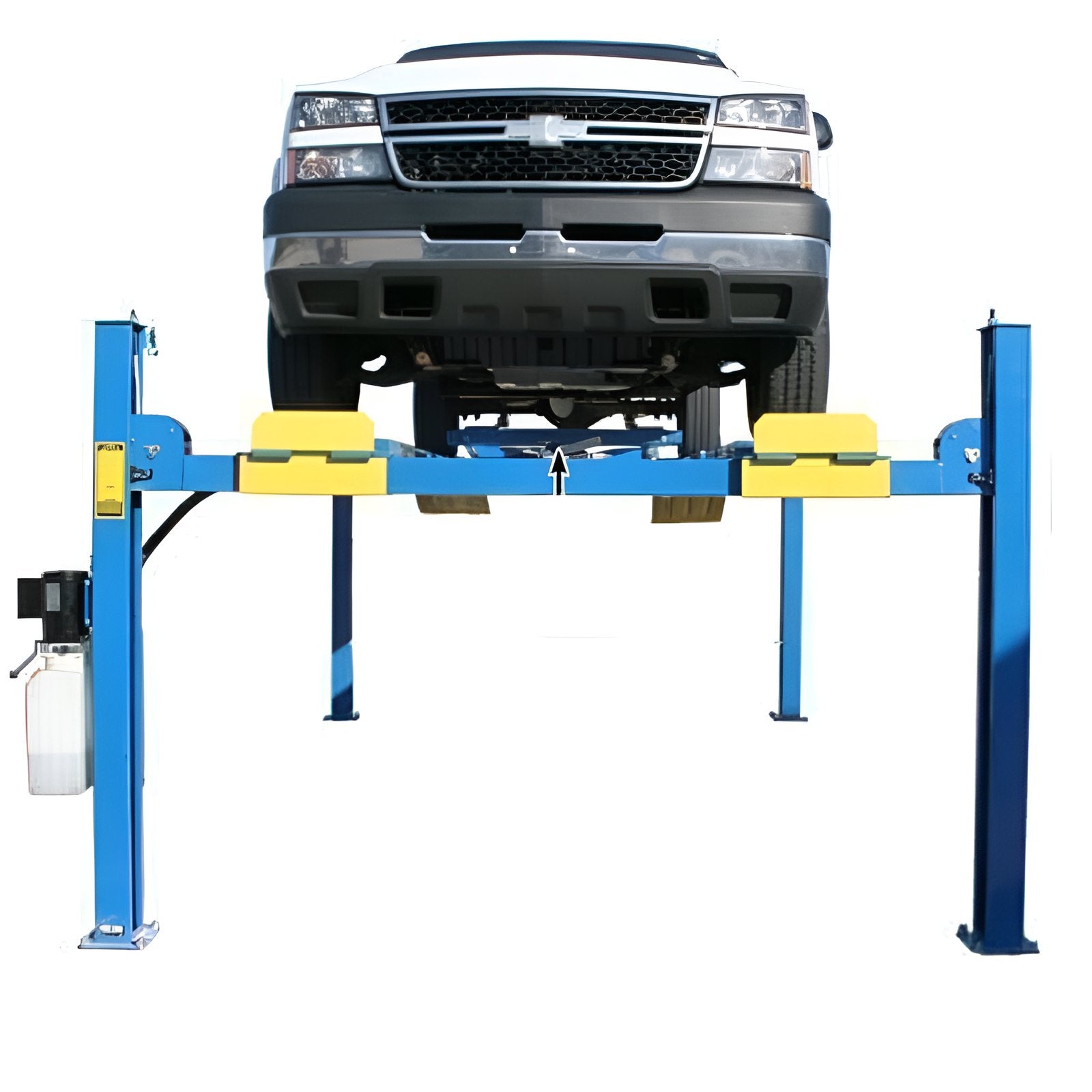

The Atlas® 412A 12,000-pound capacity four-post alignment lift is engineered to meet commercial-grade standards, ensuring enduring performance over many years of service. Setting a benchmark in its class, our Atlas® lifts boast exclusive features that set them apart from competitors.
With structural and aesthetic elements akin to higher-priced models, the Atlas® 412A delivers exceptional value without compromise. Rigorously tested, this lift system guarantees flawless operation at its maximum capacity.

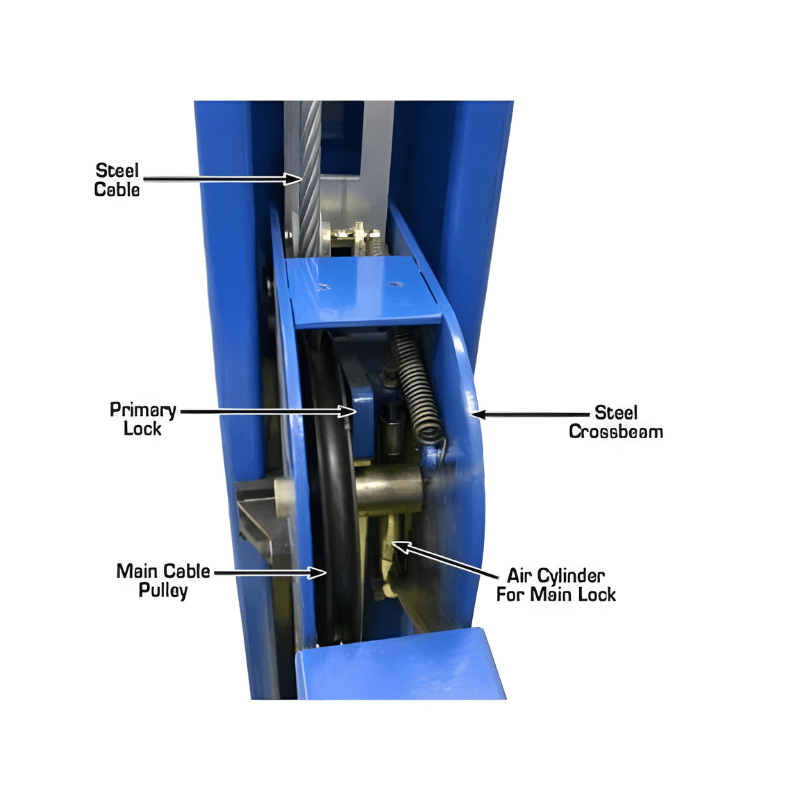

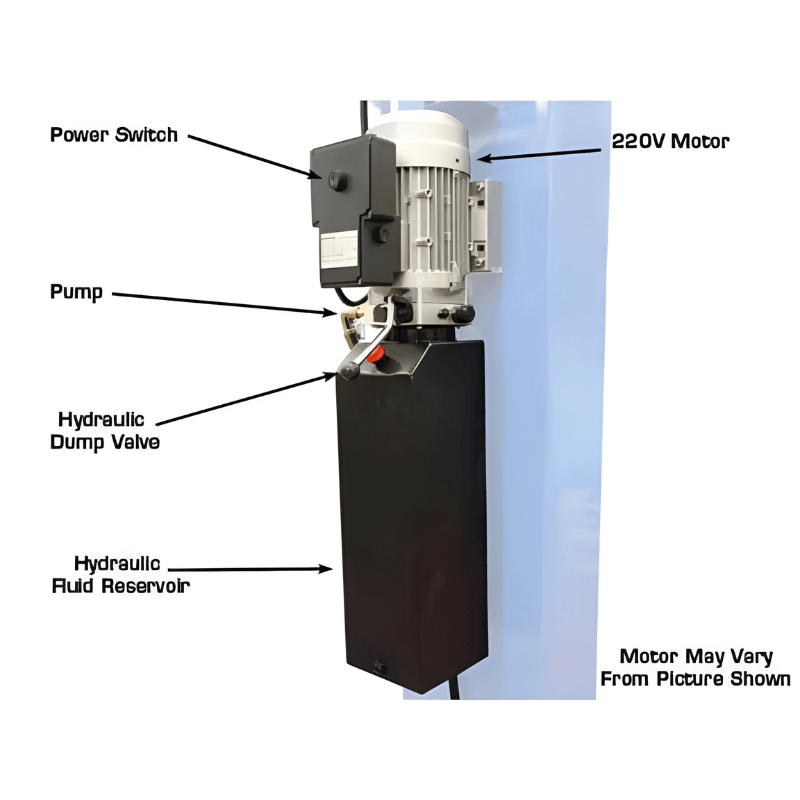

Powered by a robust cable system and an oversized hydraulic cylinder beneath the runway, the Atlas® 412A operates smoothly and efficiently on a 220-volt single-phase power unit. In contrast, competitors often rely on outdated chain lifting mechanisms and exposed hydraulic cylinders, prone to leveling challenges and unsightly dents.

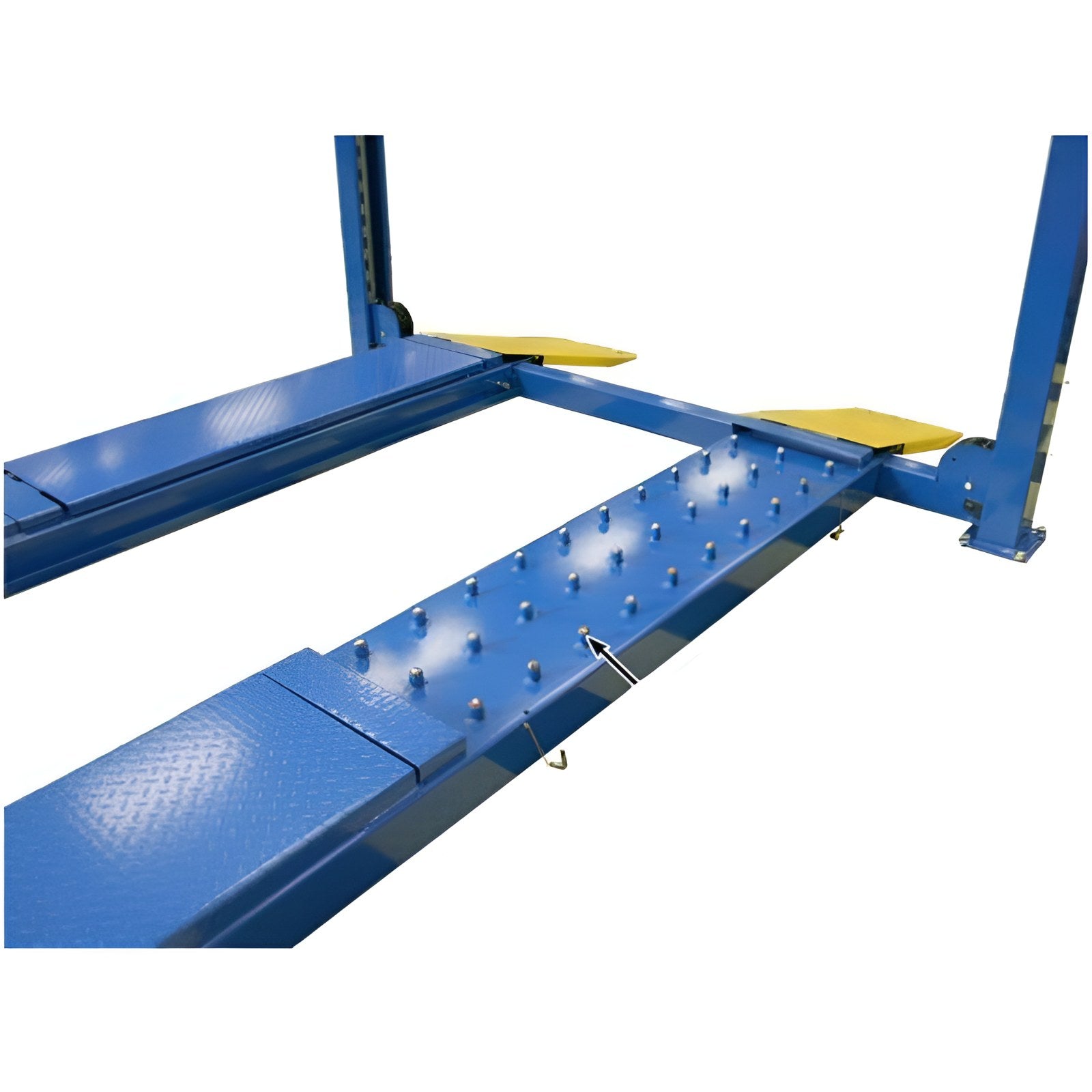

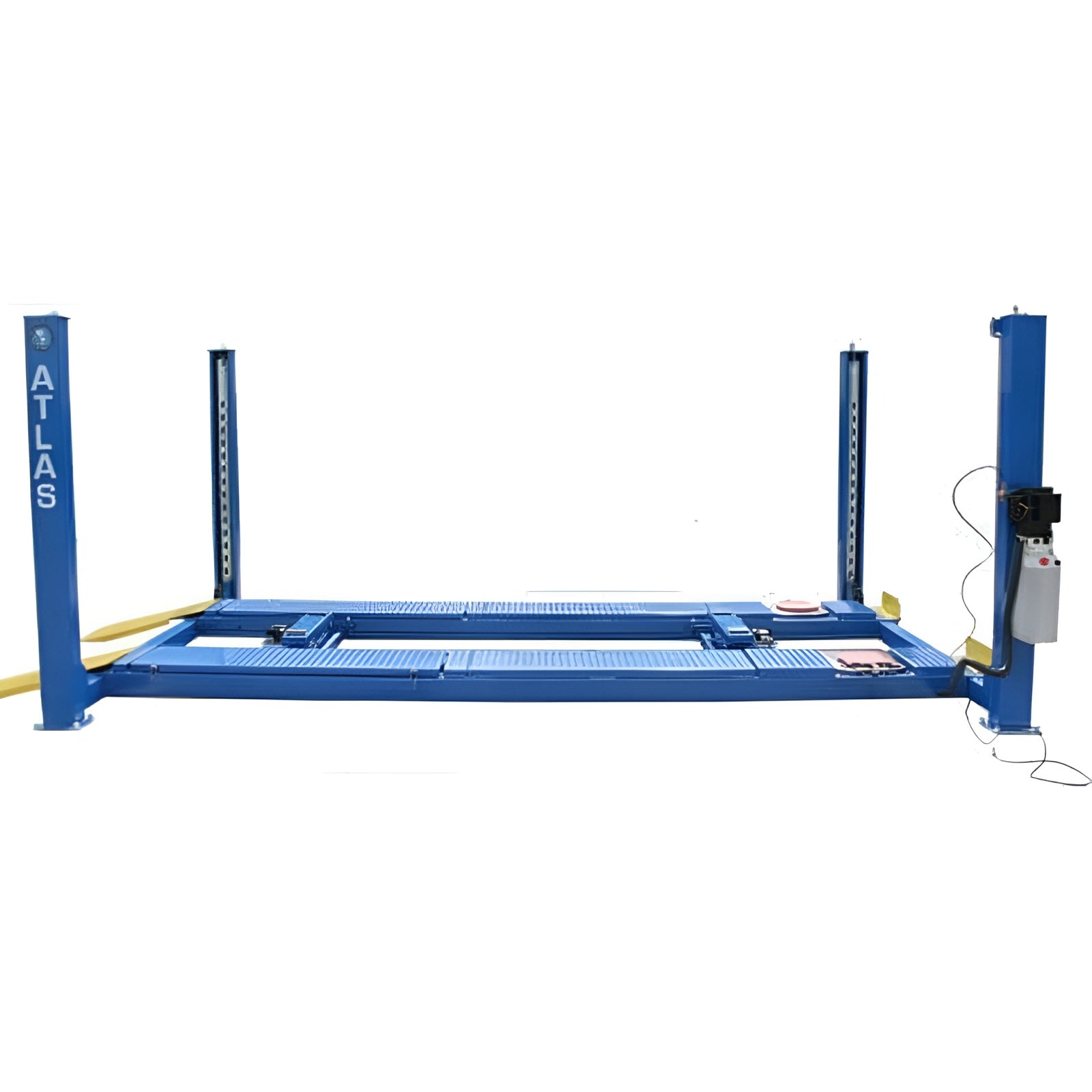

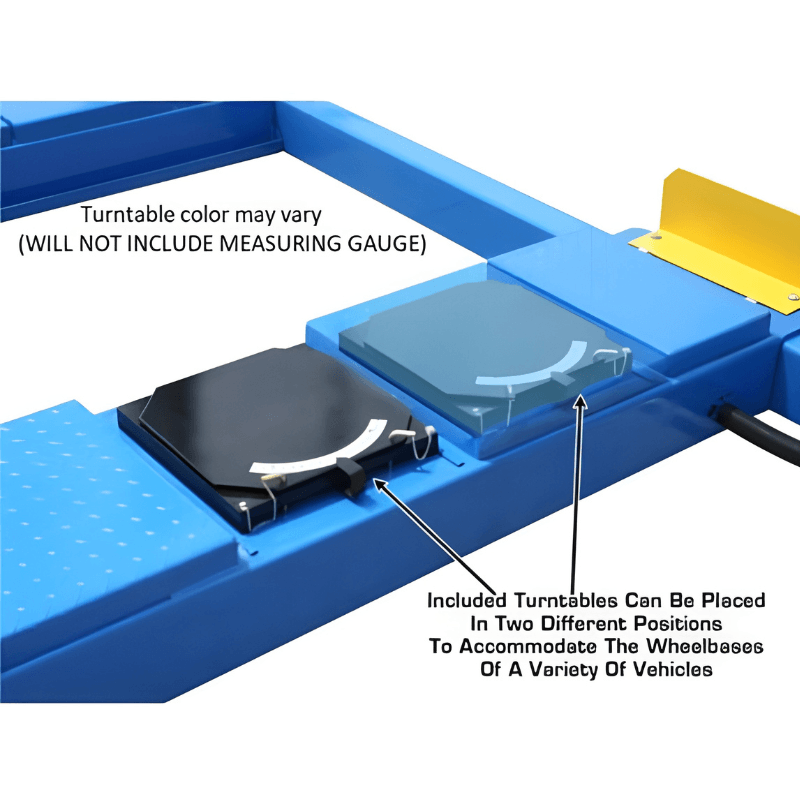

Equipped with built-in slip plates and adjustable turntables, the 412A ensures precise alignment for various wheelbases. Its versatility extends beyond alignments, thanks to metal cover plates that replace turntables when not in use, making it an adaptable solution for diverse automotive tasks.
Alignment Lift 412A Specifications:
- Capacity: 12,000 lb.
- Lifting Height: 77 3/4" (6' 5 3/4")
- Overall Width Of Columns (Without Motor): 126 1/4" (10' 6 1/4")
- Overall Width Of Columns (With Motor): 135 1/4" (11' 3 1/4")
- Overall Length With Approach Ramp: 236 1/2" (19' 8 1/2")
- Length Between Columns: 183 1/4" (15' 3 1/4")
- Runway Length: 194 1/2" (16' 2 1/2")
- Runway Width: 20"
- Thickness Of Runway: 7 1/2"
- Width Between Runways: 43 1/4" (w/ Rail 39 3/4")
- Outside Runway To Outside Runway: 83 1/4" (6' 11 1/4")
- Clearance Under Runways: 70 1/4" (5' 10 1/4")
- Clearance Between Columns: 112 5/8" (9' 4 5/8")
- Height Of Columns: 89 3/4" (7' 5 3/4")
- Maximum Wheel Base: 185" (15' 5")
- Drive Thru: 98" (8' 2")
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)

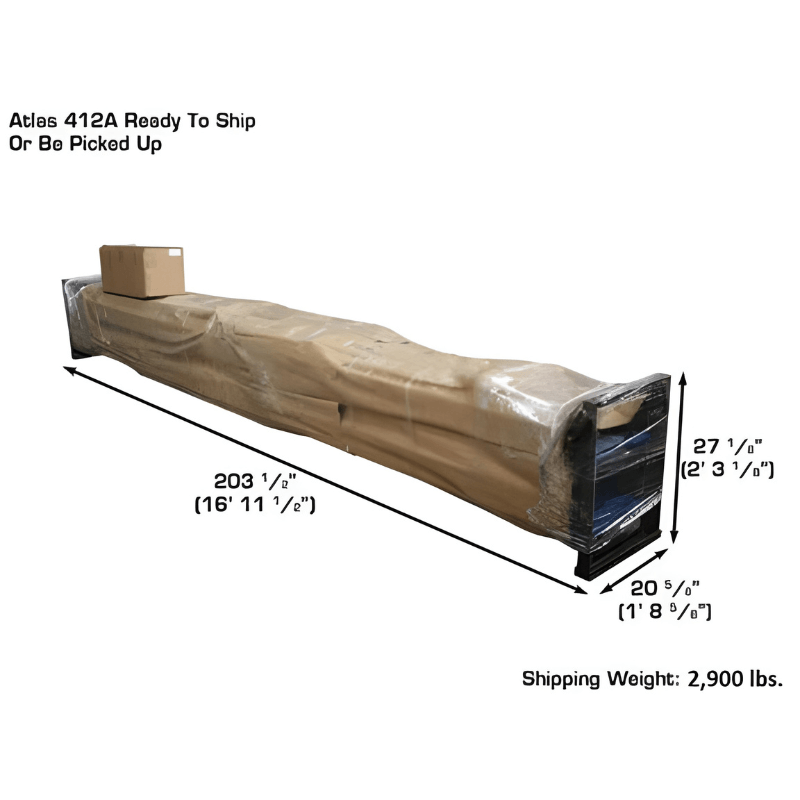

- Shipping Weight: 2,900 LBS.
- Requires a minimum of 6" of concrete with a 3000 psi. rating
412A 12,000 lb Alignment Lift Special Features:
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement
- Runway Covers Included (when Turntables are Removed)

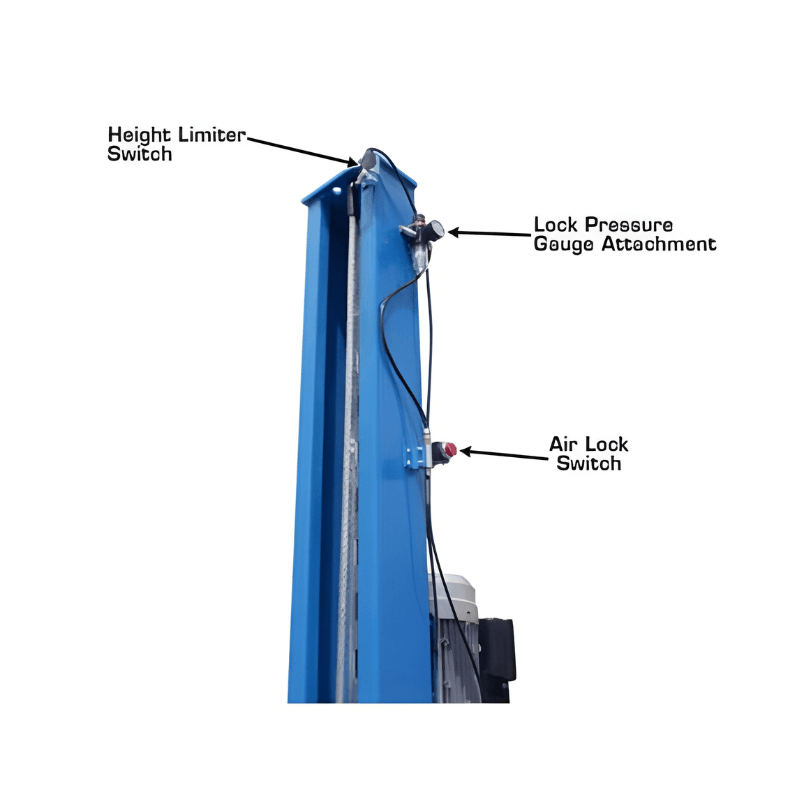

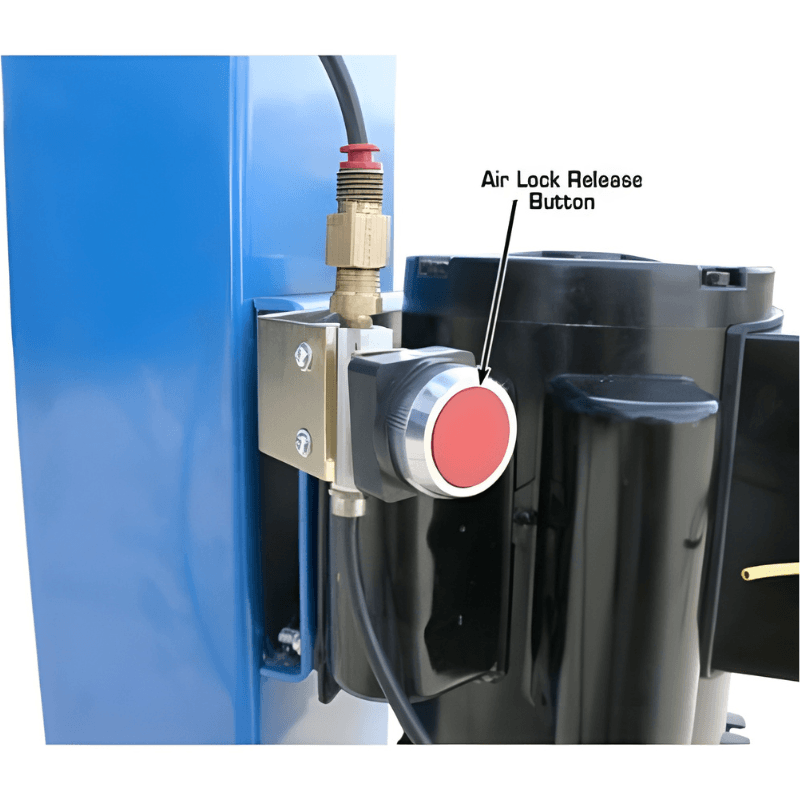

- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish

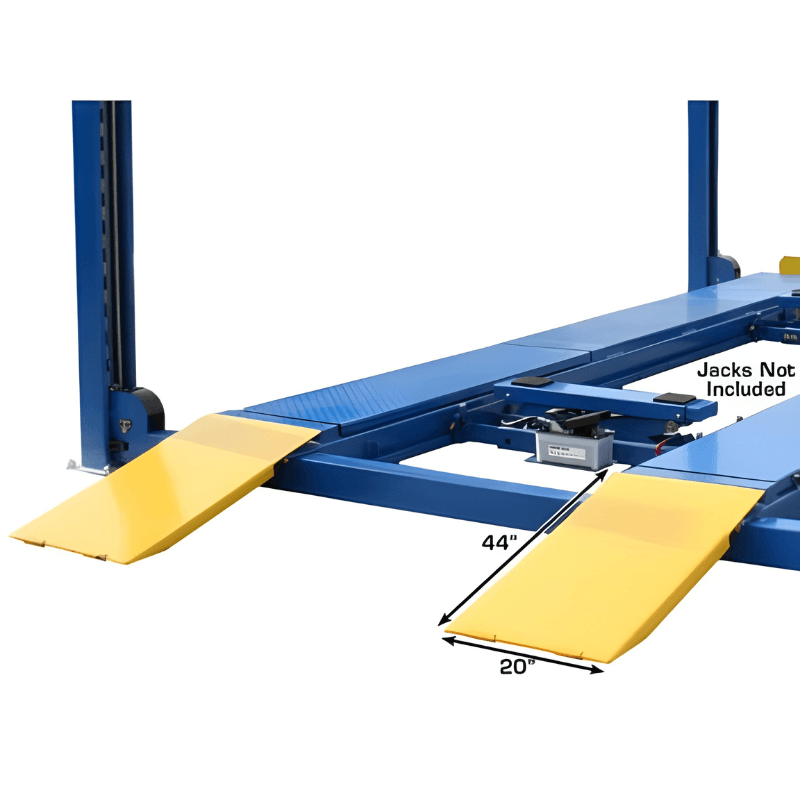

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)

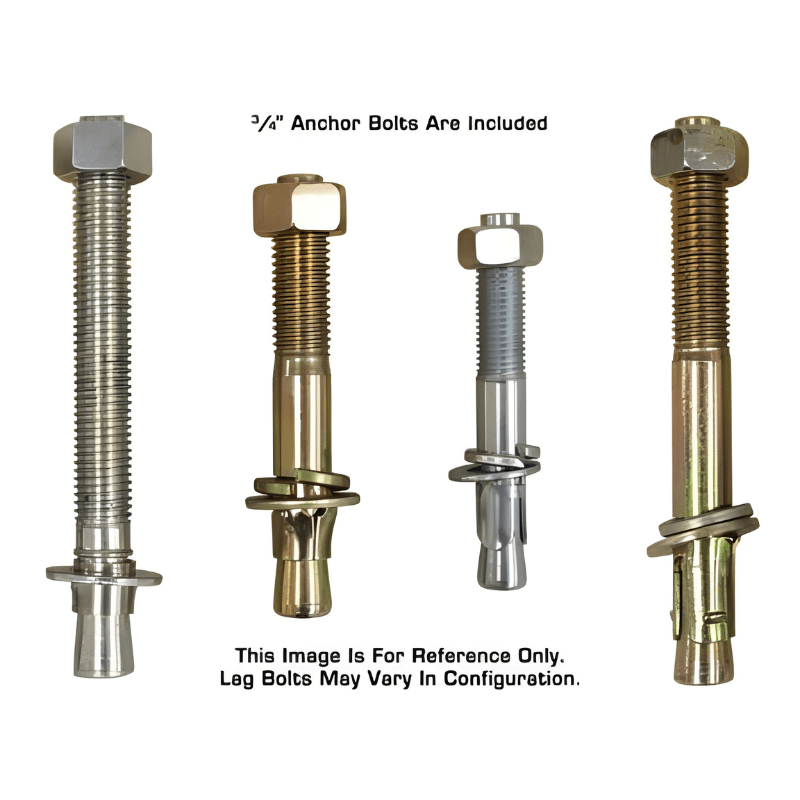

- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,900 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas 412A Documentation:
Atlas 412A Alignment Lift Product Manual
This Item has a FLAT RATE SHIPPING FEE: $799
*Warehouse pickup is not an option on Atlas alignment lifts.
**Due to Extra Large Size, product cannot be delivered to a freight terminal.
