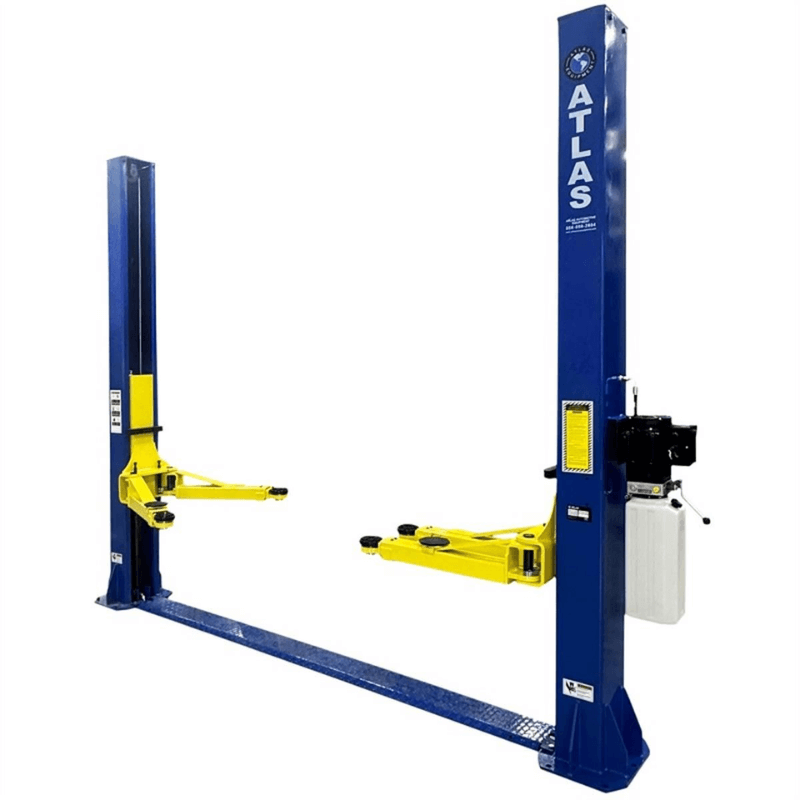

The Atlas ATEXH-TPF-9 is a robust, economically designed 9,000 lb. capacity baseplate 2-post lift ideal for homeowners, hobbyists, and small commercial garages. Featuring symmetric columns and arms, this lift offers dependable performance for servicing cars, SUVs, and light-duty trucks.
Its low-profile pad height allows for easy placement under low-clearance vehicles, while the overall height of just under 9' 4" makes it suitable for shops with height restrictions. The chain-over-roller design paired with dual hydraulic chain-drive cylinders ensures smooth, reliable lifting, while a spring-loaded Secondary Lock System (SLS) automatically engages in the event of a chain issue for added safety.
The 5mm thick steel columns and solid baseplates ensure long-lasting strength, while the lift operates on 220V single-phase power and requires 4" concrete with a 3000 PSI rating. Whether you're upgrading your home shop or outfitting a compact commercial space, the Atlas TPF-9 offers a reliable, space-efficient lifting solution.
Lifting Capacity: 9,000 lbs.
Lift Type: Baseplate, Open Top Design

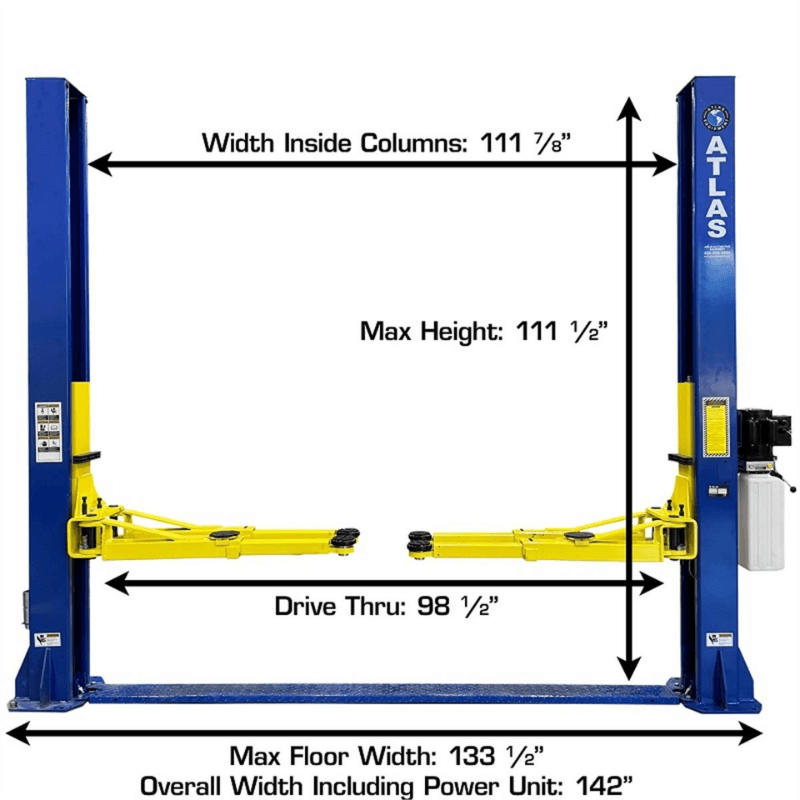

Overall Height: 111 1/2” (9' 3 1/2")
Overall Floor Width: 133 1/2” (11' 1 1/2")
Inside Column Width: 111 3/8” (9' 2 3/8”)
Drive Thru Clearance: 98 1/2” (8' 2 1/2”)
Maximum Lift Height (Without Adapters): 76 1/2"
Maximum Lift Height (With Adapters): 79 1/2"
Minimum Arm Height: 4"
Column Dimensions: 7 1/4" x 11"
Column Steel Thickness: 5mm
Base Plate Dimensions: 14 1/4" x 18"
Motor/Electrical Requirements: 220V, Single Phase, 30 Amp Breaker Recommended
Oil Requirement: 3–5 Gallons AW32 or AW46 (Not Included)
Adapter Heights: 4 pieces at 2.75" each
Arm Hole / Adapter Peg Size: 2”
Concrete Requirements: Minimum 4" depth at 3000 PSI
Shipping Weight: 1,400 lbs.
Symmetric arm configuration for balanced lifting
Dual hydraulic chain-drive cylinders for smooth, reliable operation
Automatic arm restraints enhance safety during lifting
Dual-point lock release system for secure load holding
Spring-loaded Secondary Lock System (SLS) for added safety
Low pad height ideal for cars with low clearance
Rubber carriage guards to prevent vehicle contact damage
Includes adjustable screw-up adapters for variable vehicle heights
Comes with a free 4-piece truck adapter set and sliding arm adapters
Mounting hardware included for installation convenience
Compact design ideal for residential or small commercial shops
Freight prepaid (as noted with this part number)
2-year structural warranty
1-year hydraulic parts-only warranty
