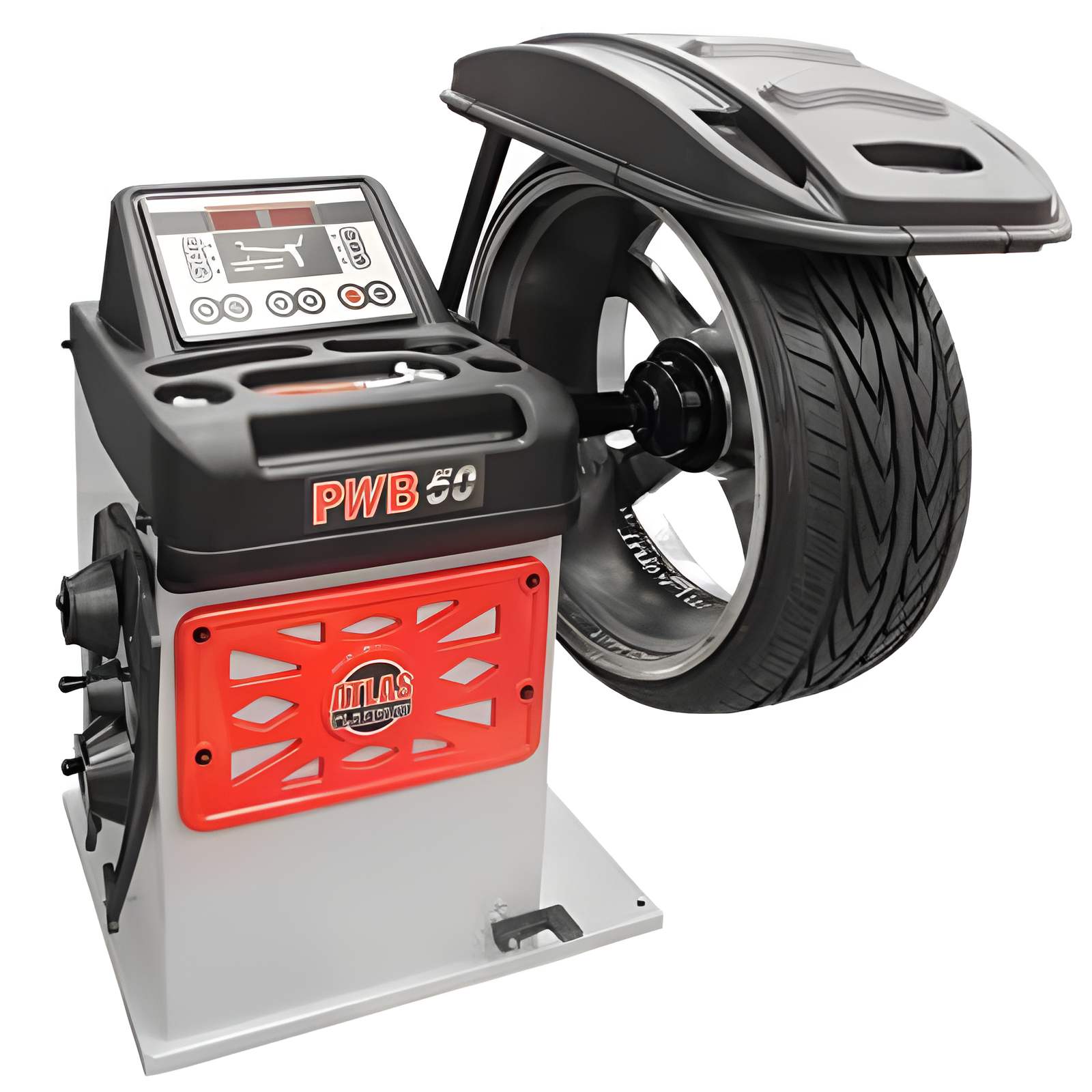

Atlas Platinum PWB50 Premium 2D Computer Wheel Balancer

PWB50 Wheel Balancer by Atlas

The Atlas® Platinum PWB50 stands as the pinnacle in electronic wheel balancing, boasting an intuitive LED display and seamless Automatic 2D Data Entry via a single gauge. With an array of ALU weight configurations, our machine empowers operators to choose optimal weight placement, guiding them precisely post-spin for flawless adhesive application. Effortlessly conceal weights with the Fast & Easy Split function (FES), while the Opposite Weight Function (OWF) grants convenient access for weight adjustment. Unlocking tire and wheel optimization through OPTIMATCH software, the PWB50 ensures efficient balancing even for the most challenging assemblies. Crafted with Italian precision and Atlas®'s renowned value, it guarantees speed, accuracy, and durability for high-volume passenger vehicle balancing worldwide.

Wheel Balancer PWB50 Specification:

• Rim Sizes (Cars And Light Trucks): 10"-30"
• Rim Width: 1 1/2"-20"

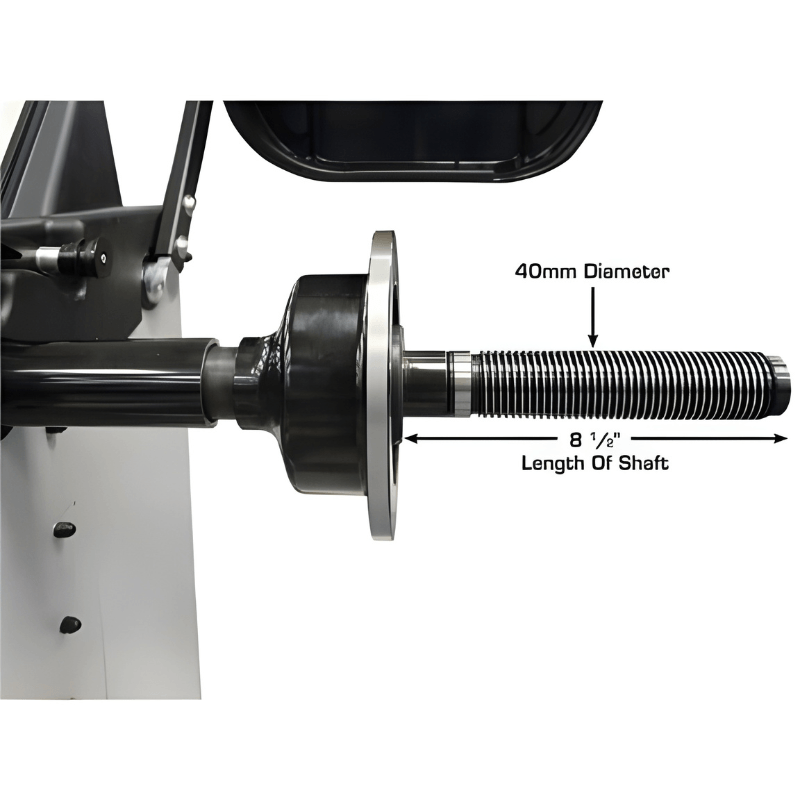

• Shaft Size: 40mm
• Max. Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Data Entry: Automatic 2D
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Cycle Time: 7 seconds
• Power Supply: 110volt
• Shipping Weight: 230 lbs.

PWB50 Wheel Balancer Special Features:

• Max Tire Diameter: 43"
• Platinum Computer Controlled Motorized Spin Balancer
• Italian Engineering and Components
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Optimatch, FES (Split), OPF (Opposite Position) Functions
• Special ALU-S and other ALU Programs
• Automatic 2D Data Entry
• NWN (no wheel need) System
• Self-Diagnosing and Self-calibrating
• USB hub for firmware update through PC/Notebook
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

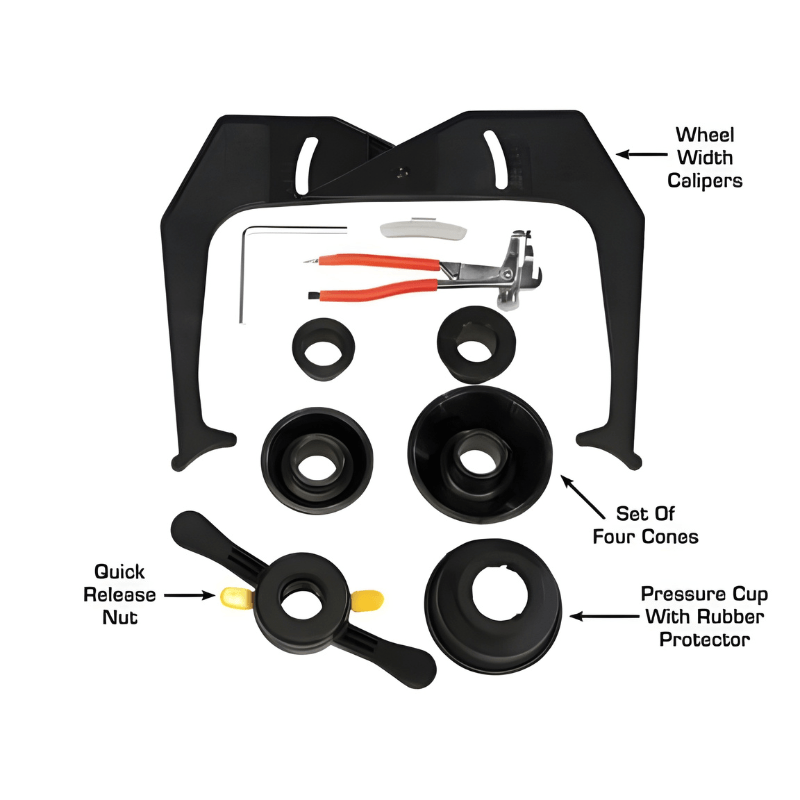

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Replacement Parts & Wear Items Always in Stock
• 2 Year Parts Only Warranty

Atlas PWB50 Documentation:

   Atlas PWB50 Wheel Balancer Product Manual

This Item has a FLAT RATE SHIPPING FEE: $199

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Fresno, CA
