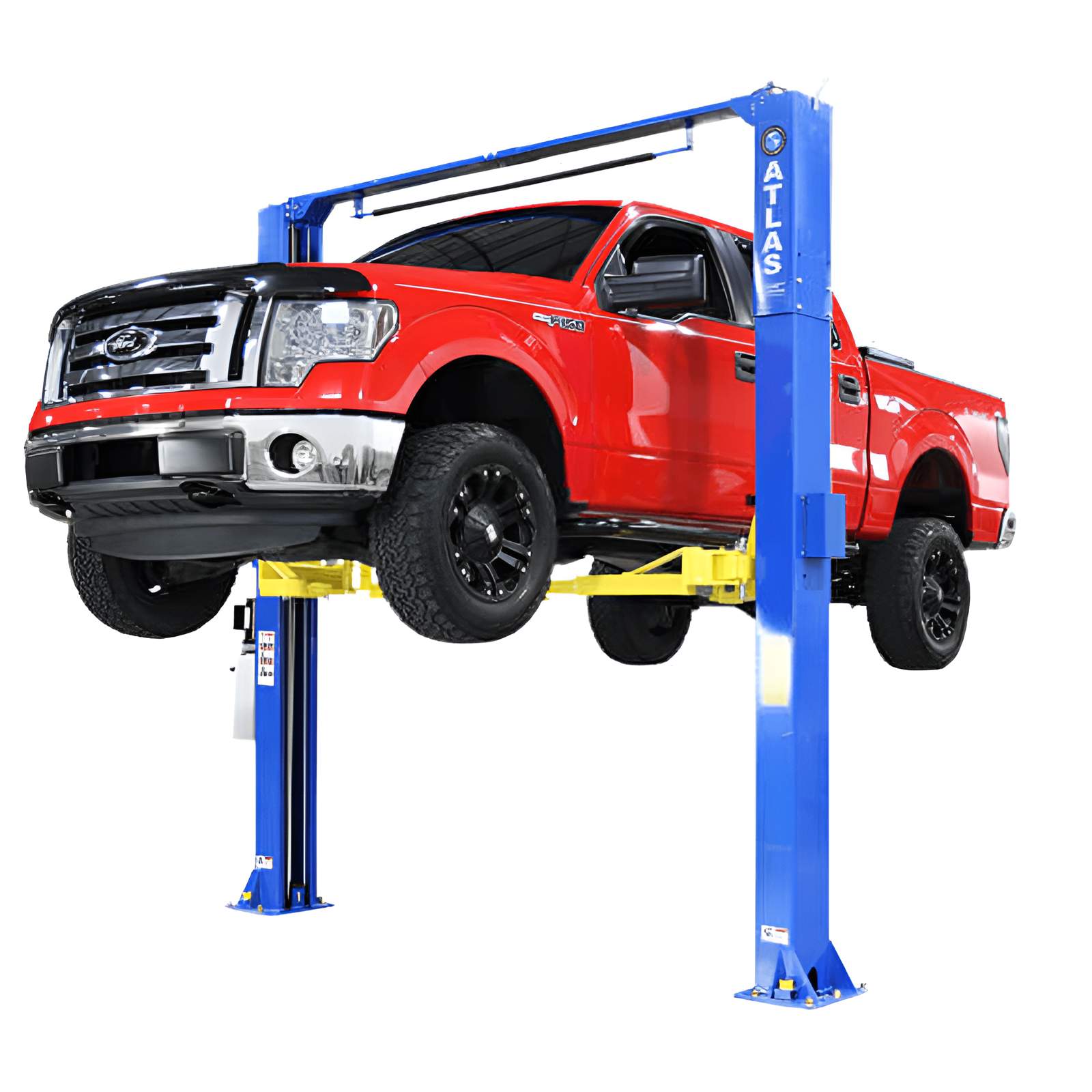

Atlas PRO 9D 9,000 lb Overhead 2-Post Lift

The Atlas PRO 9D 9,000 lb Overhead Two-Post Lift is a commercial-grade lifting solution engineered for professional repair shops and serious home garages that demand performance, safety, and value. With a true 9,000 lb lifting capacity and an overhead open-floor design, this lift provides unobstructed workspace while accommodating a wide range of passenger vehicles and light trucks.

Built for reliability and long service life, the PRO 9D features dual direct-drive hydraulic cylinders that reduce moving parts and enhance lifting efficiency. The symmetric columns and versatile arm design allow operators to configure the lift in either symmetric or asymmetric positions, offering an exceptionally low lift pad height. This makes it easier to service vehicles with low pickup points as well as heavier trucks. Safety is reinforced with automatic arm restraints, a single-point lock release, and rubber guards on the carriages to help protect vehicle doors.

Ideal for smaller commercial repair facilities and high-end home workshops, the Atlas PRO 9D delivers professional performance in a compact footprint. Its 12-foot overall height, durable powder coat finish, and included truck adapter set make it a dependable and versatile choice for daily vehicle service needs.

 Atlas PRO9D Specifications:

• Capacity: 9,000 lbs

• Lift Type: Overhead, open-floor two-post lift

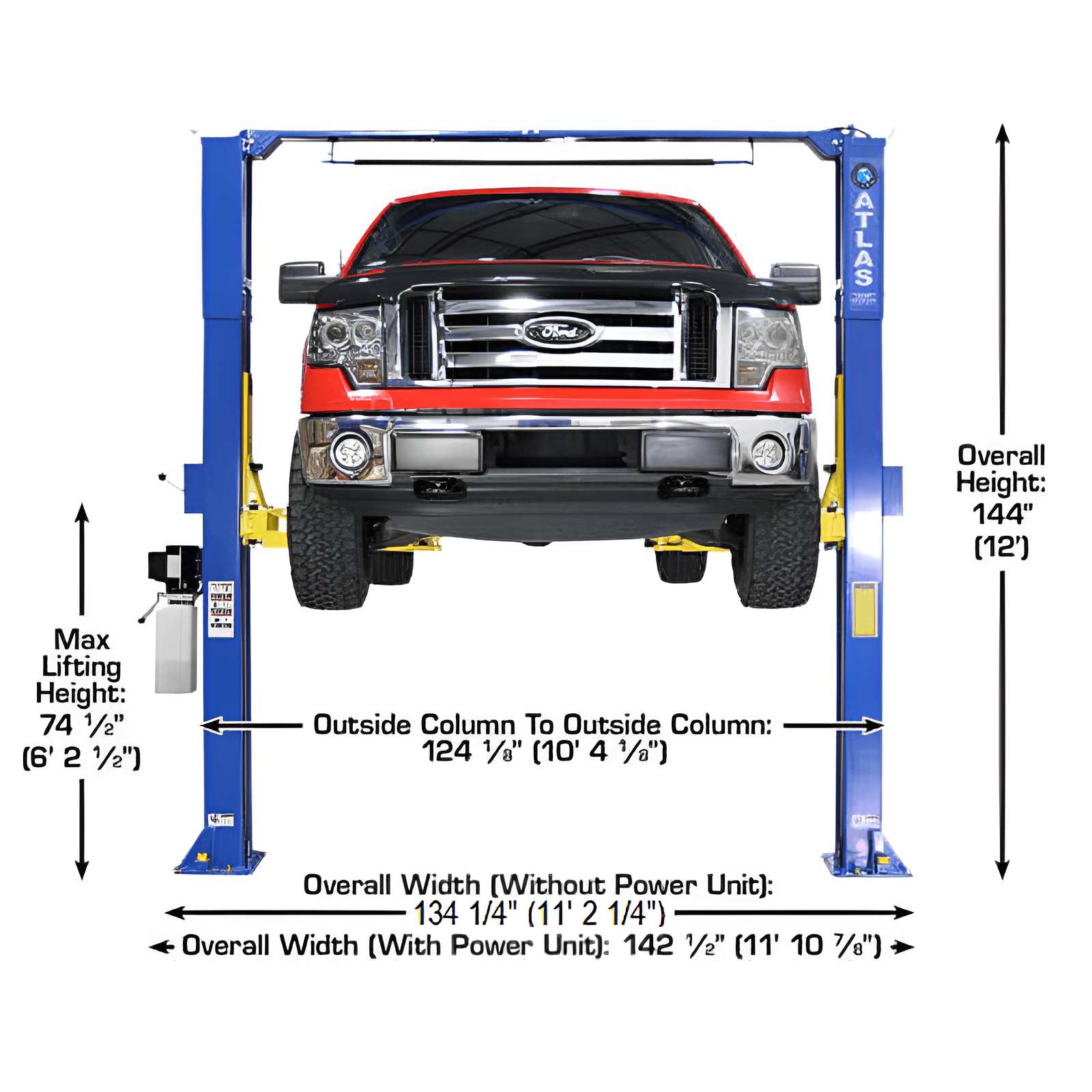

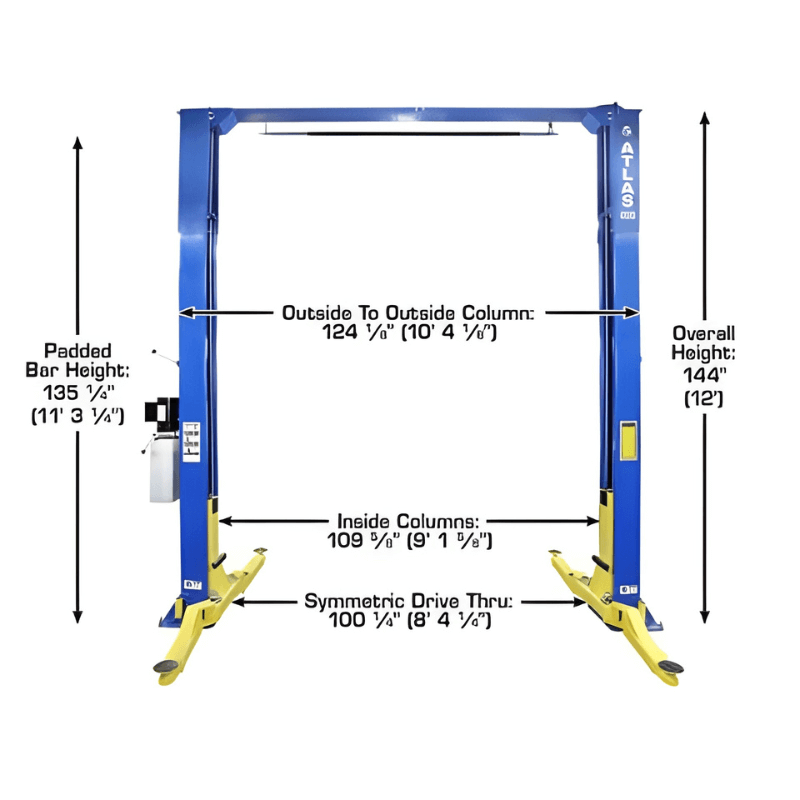

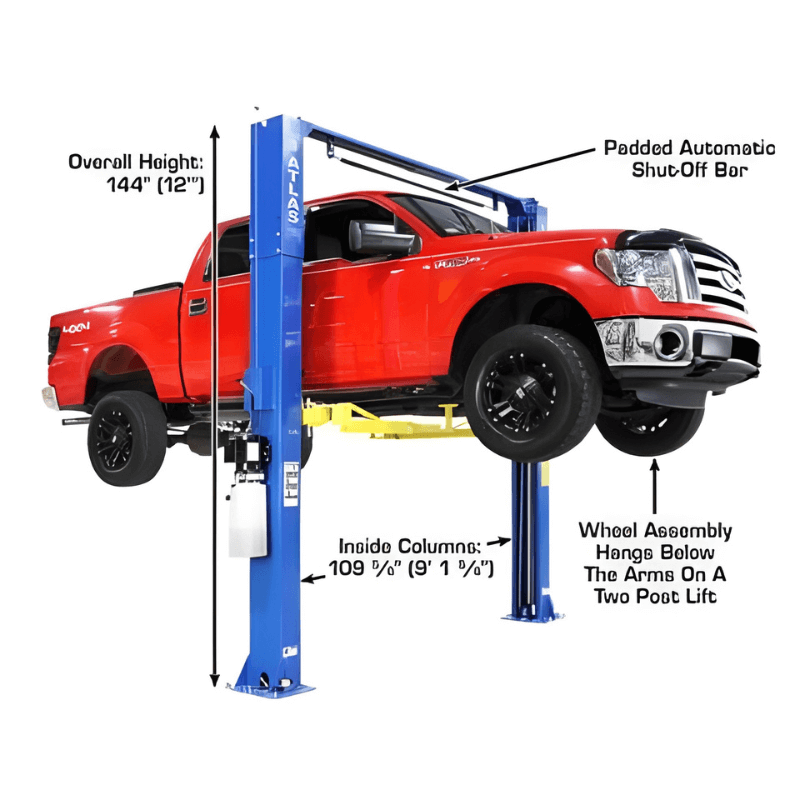

• Overall Height: 144" (12')

• Overall Floor Width: 134 1/2" (11' 2 1/2")

• Outside Column to Outside Column: 124 7/8" (10' 4 7/8")

• Inside Column Width: 110" (9' 2")

• Maximum Lift Height:

  • Without Adapters: 68"

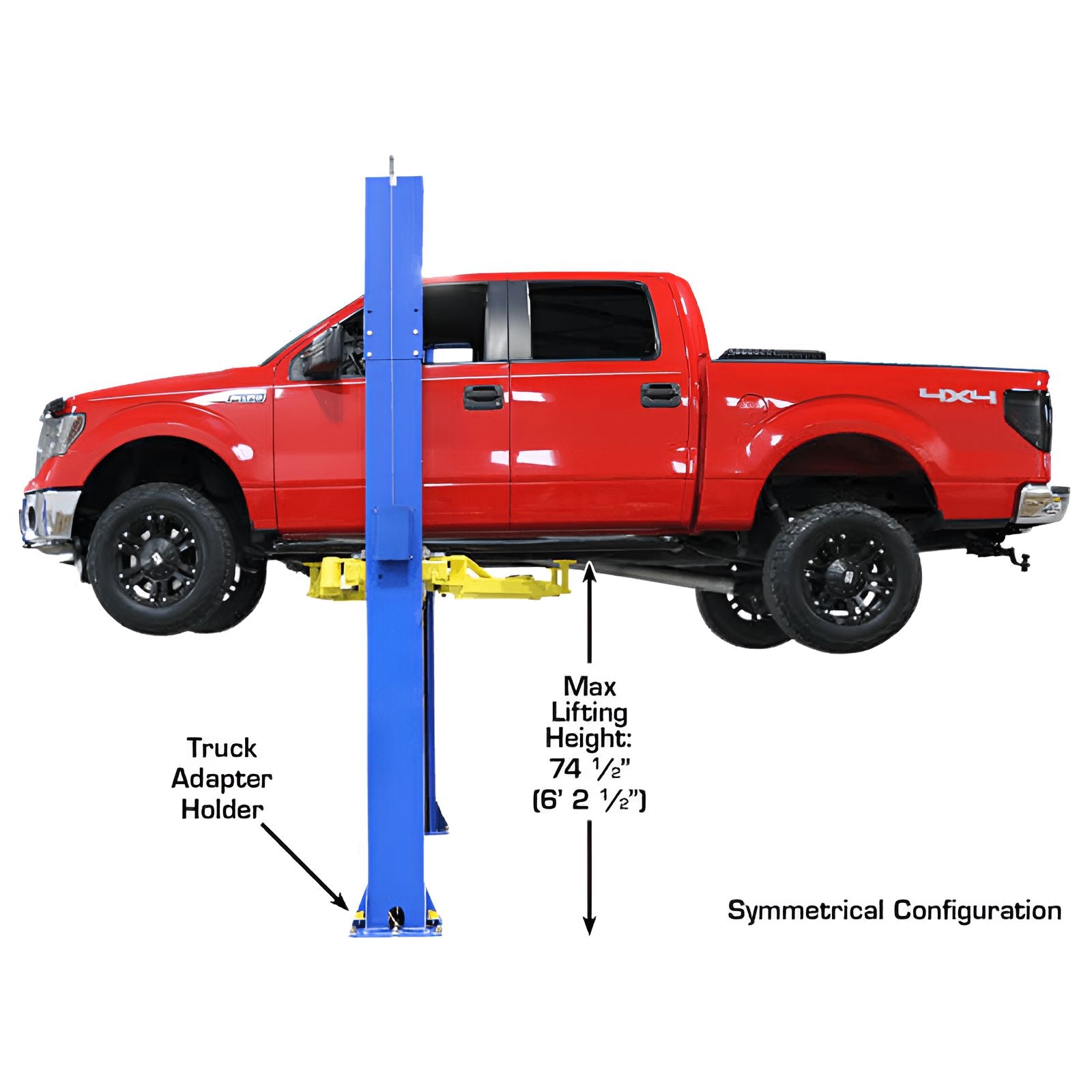

  • With Adapters: 74 1/4"

• Minimum Arm Height: 4 1/2"

• Drive-Thru Width:

  • Symmetric: 100" (8' 4")

  • Asymmetric: 90 1/2" (7' 6 1/2")

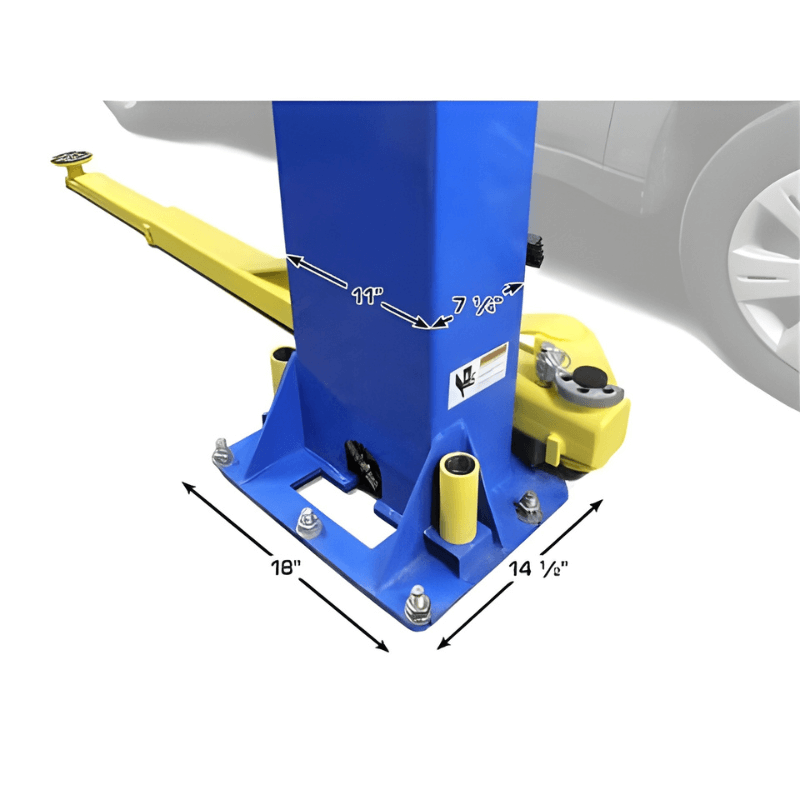

• Column Size: 7 1/4" x 11"

• Motor / Electrical: 220V, single-phase, 30 amp breaker recommended

• Oil Requirement: 3–5 gallons AW32 / AW46 (not included)

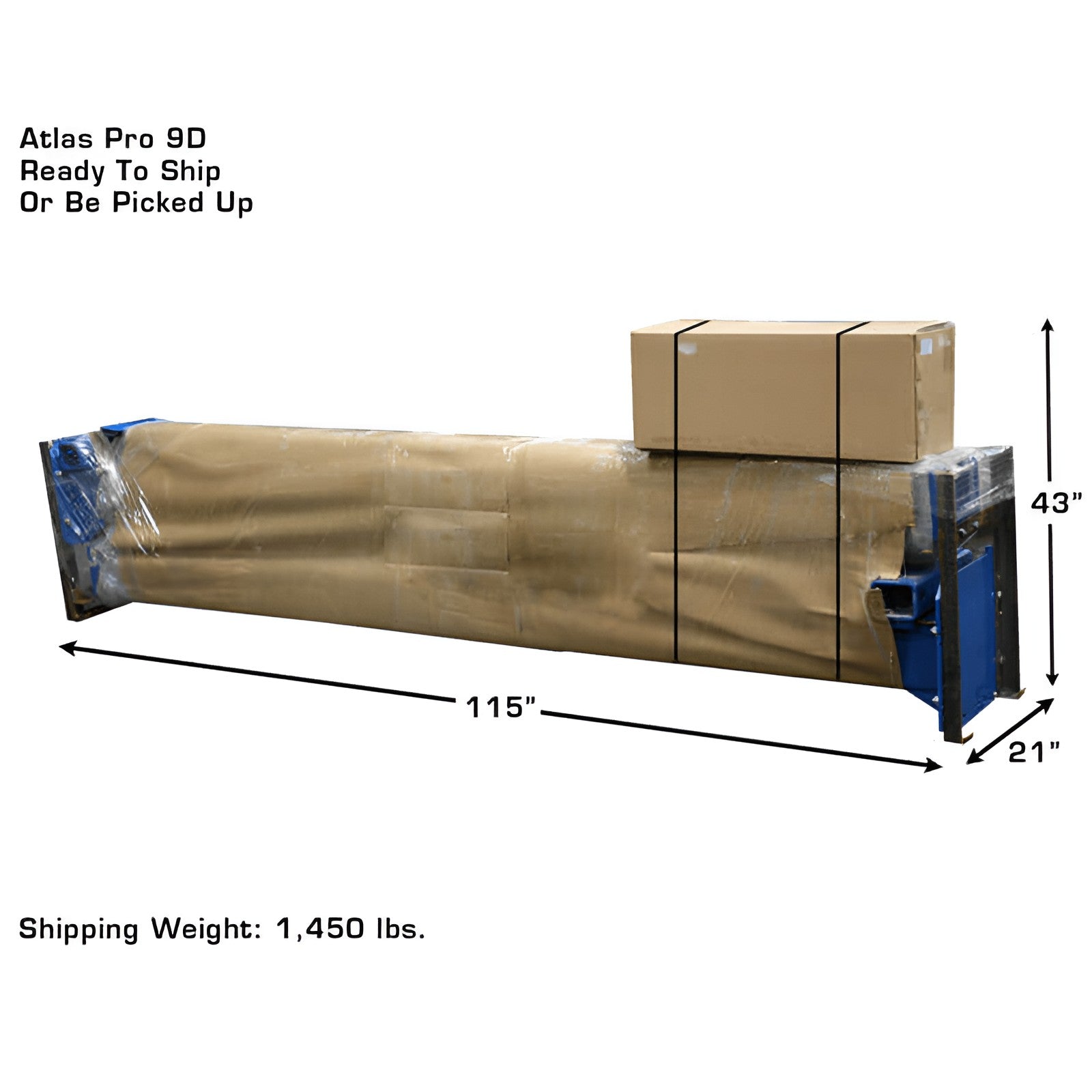

• Shipping Weight: 1,450 lbs

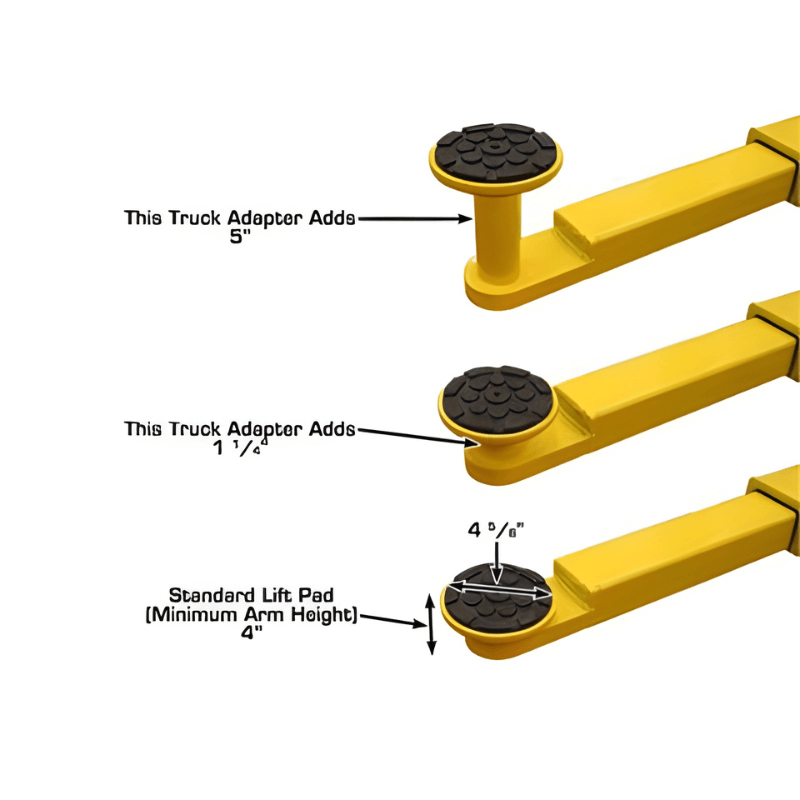

• Adapter Heights Included: 4 × 1.5", 4 × 5"

Atlas PRO-9D Lift Special Features:

• True 9,000 lb lifting capacity

• Overhead open-floor design for clear workspace

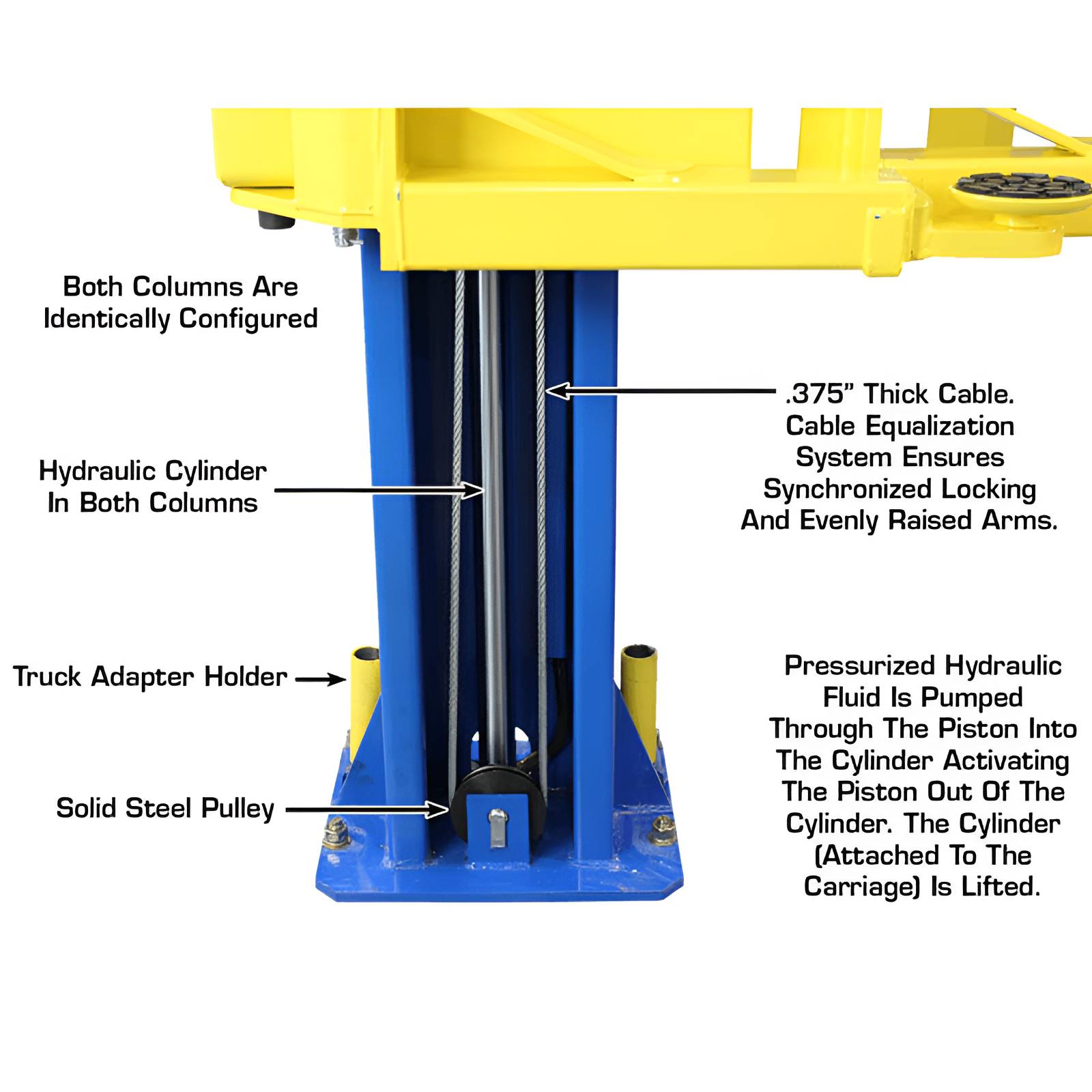

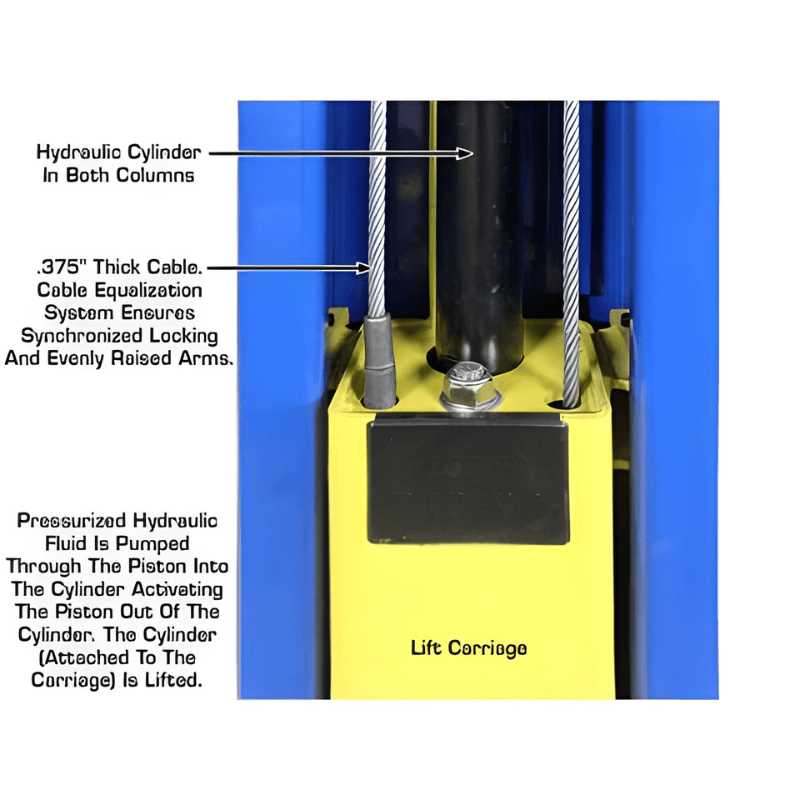

• Dual direct-drive hydraulic cylinders for long-term reliability

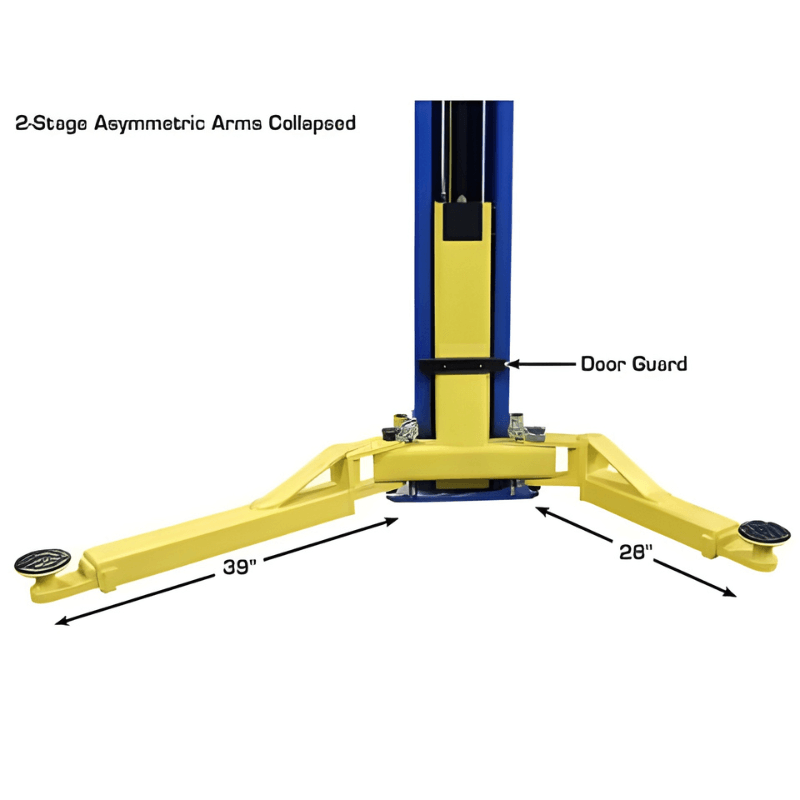

• Symmetric columns with asymmetric/symmetric arm positioning

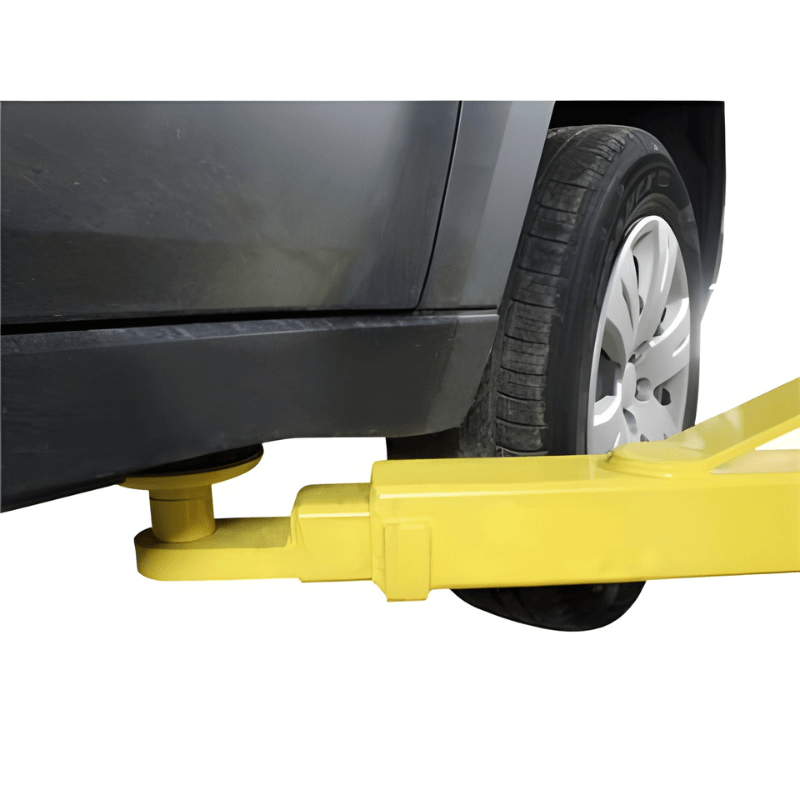

• Low lift pad height for vehicles with low pickup points

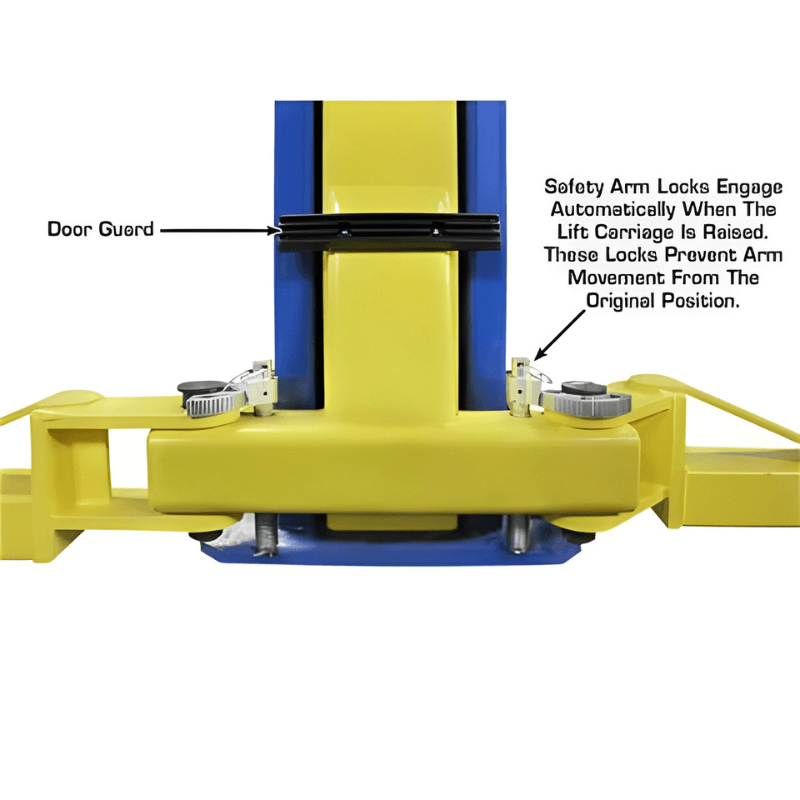

• Automatic arm restraints for added safety

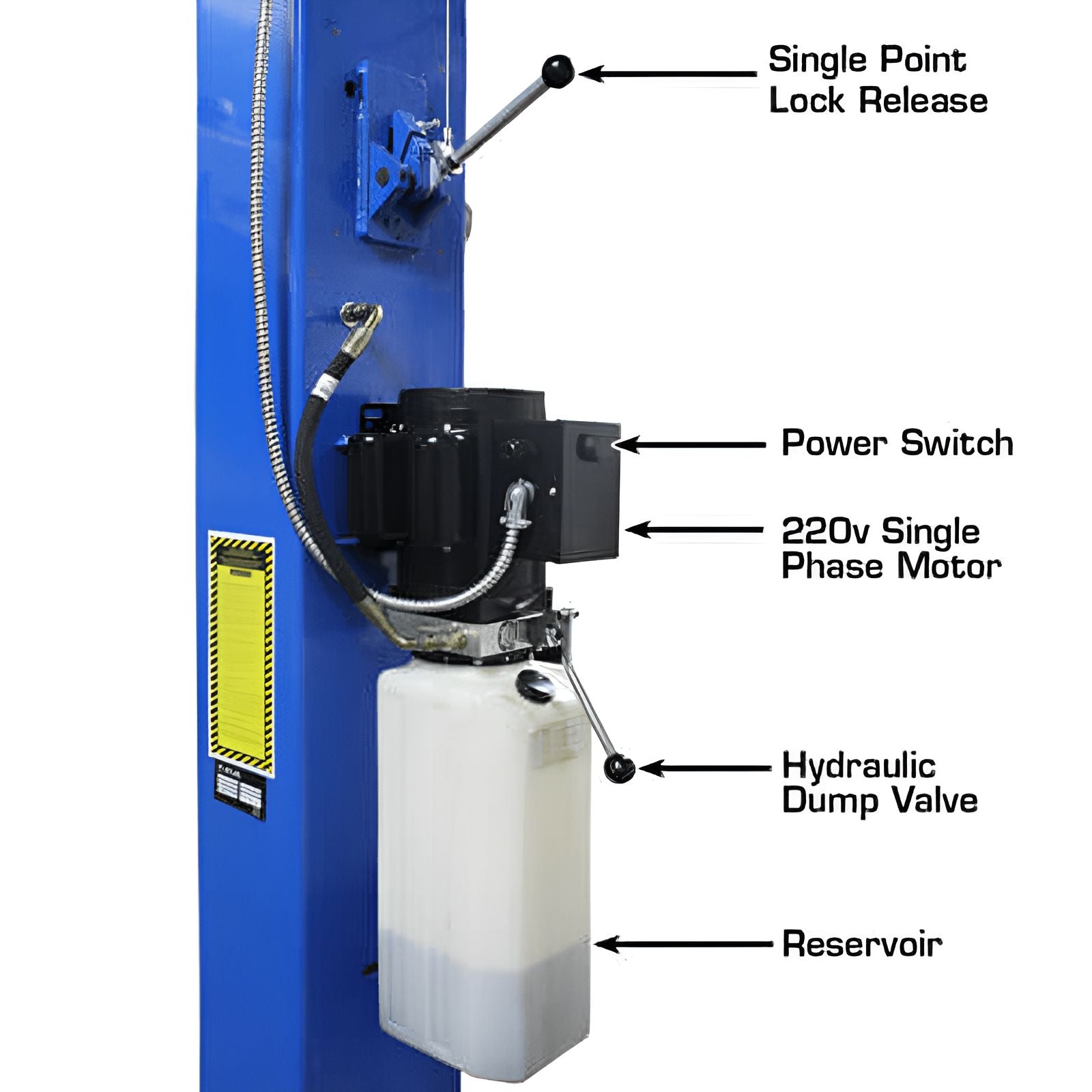

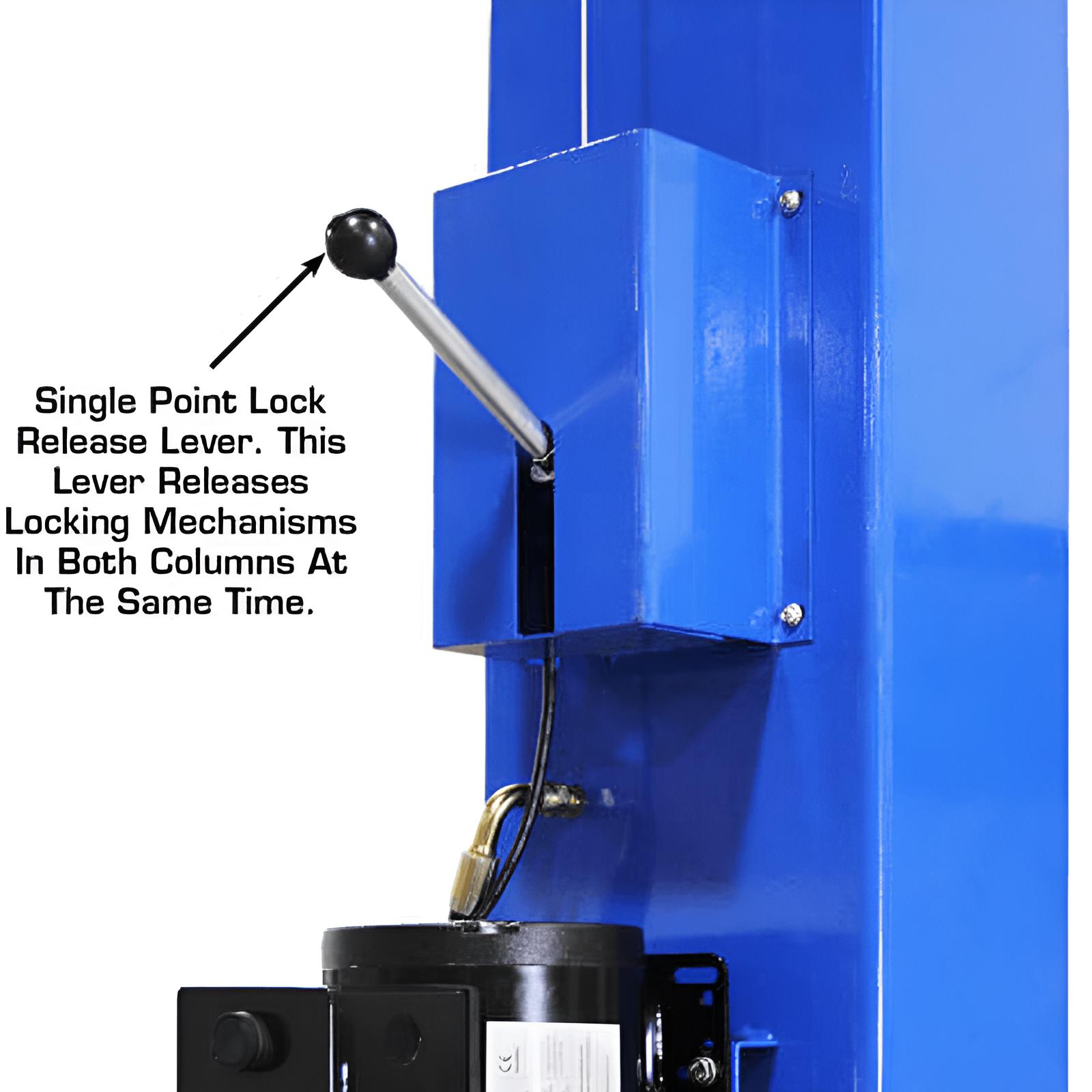

• Single-point lock release for efficient operation

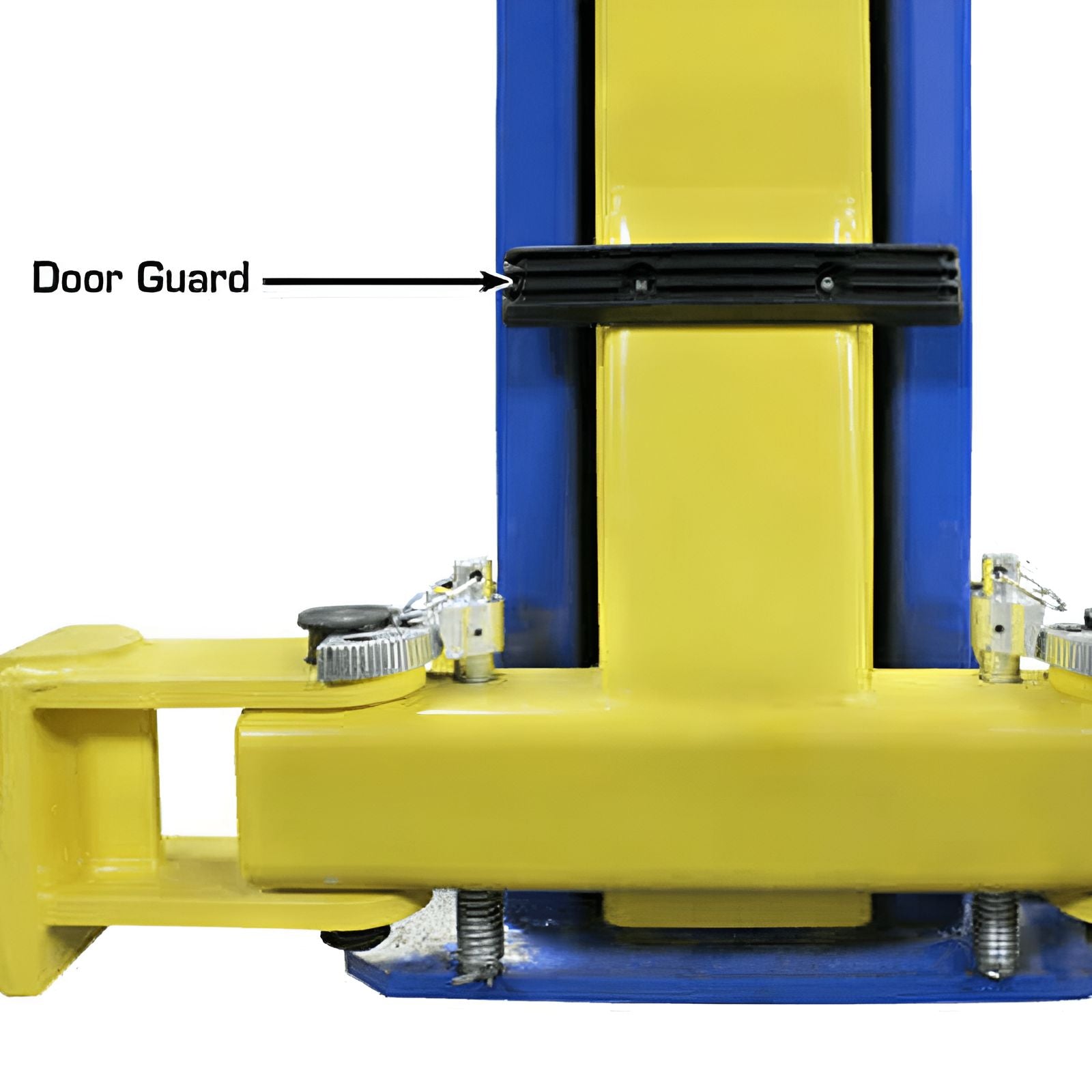

• Rubber guards on carriages to help protect vehicle doors

• Durable powder coat finish

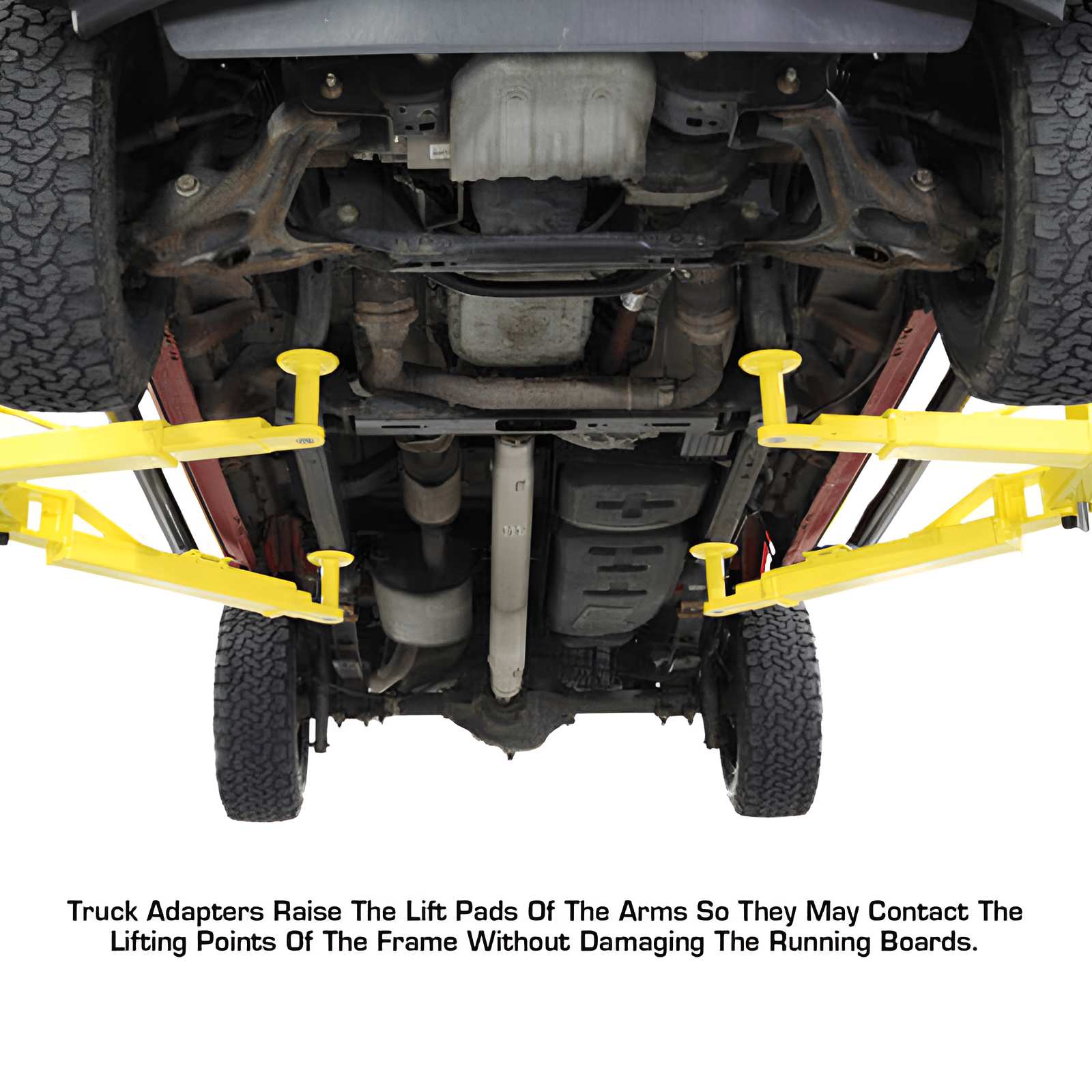

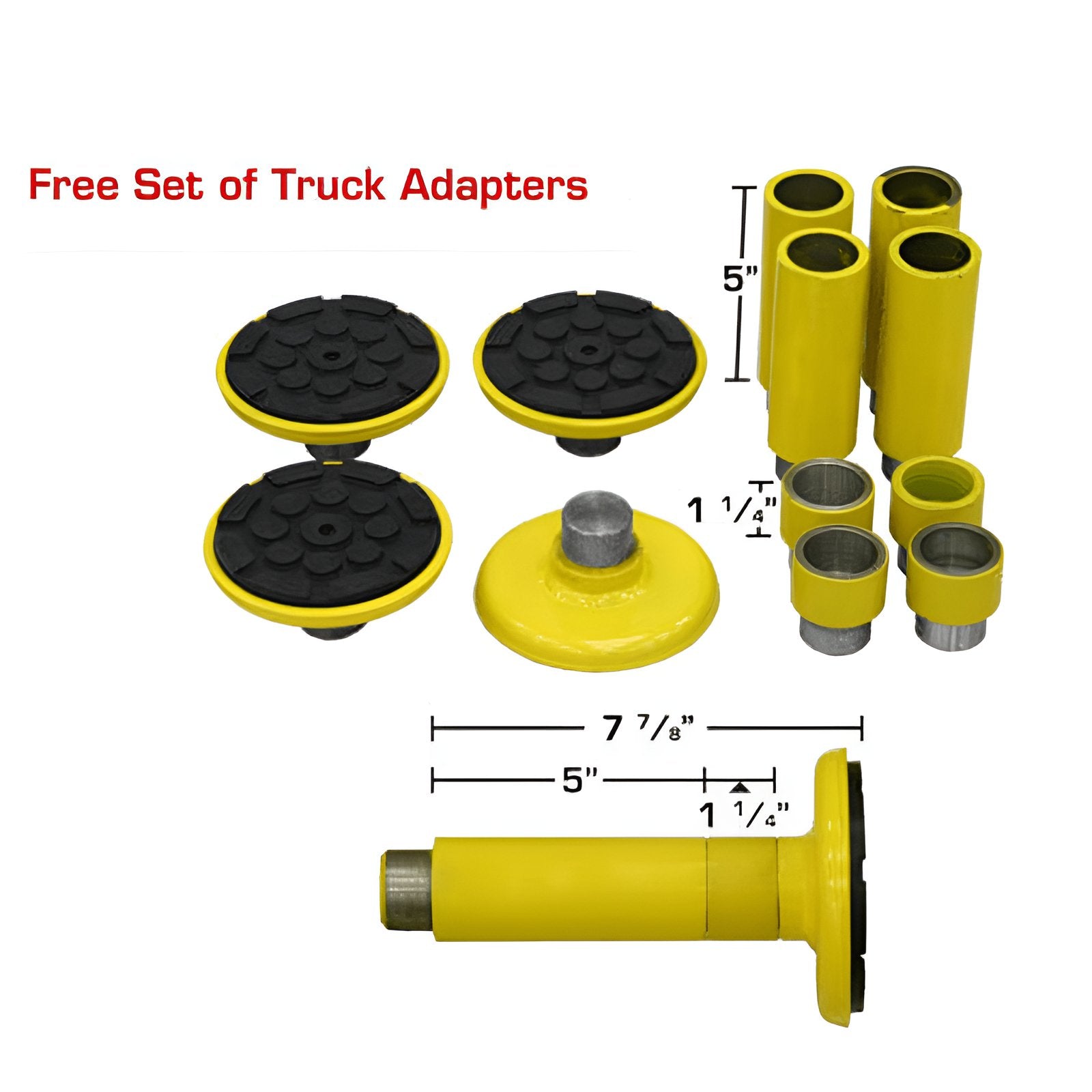

• Includes free 8-piece truck adapter set

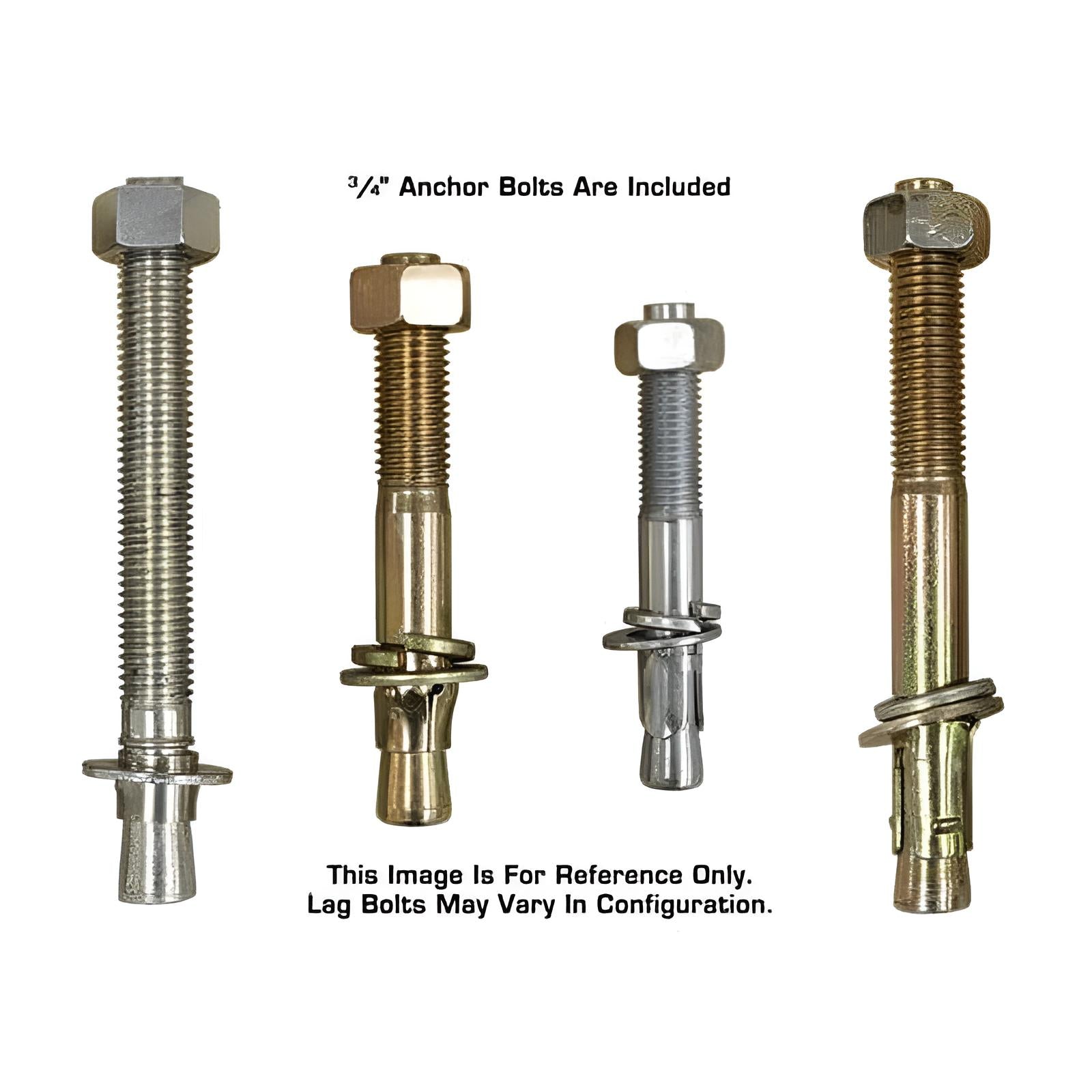

• Mounting hardware included

• Backed by a 5-year structural and 2-year hydraulic-power warranty

Atlas PRO-9D Installation Instructions

   Atlas PRO-9D Manual
