Atlas PRO7000ST, 7,000 lb 4 Post Lift - Extra Tall

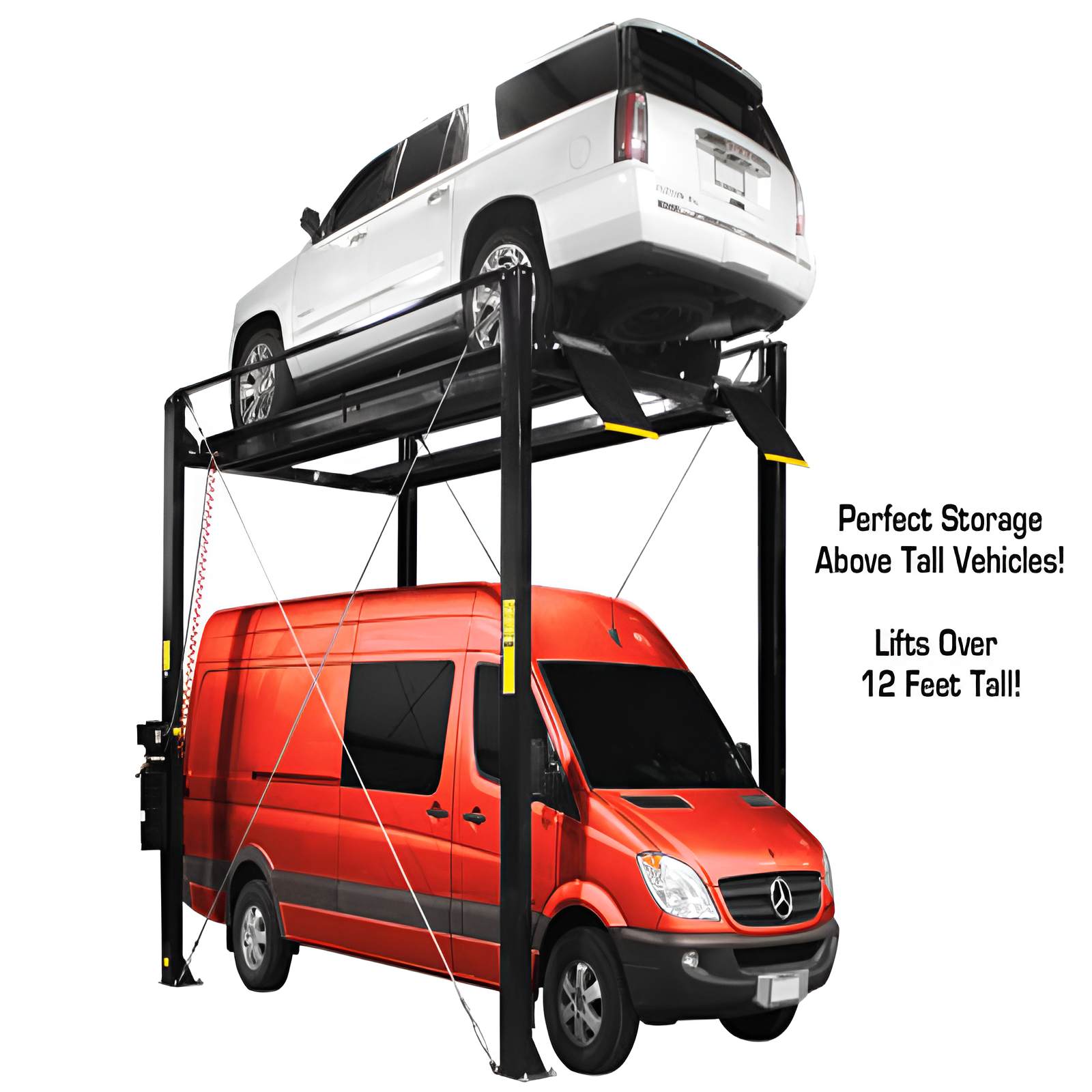

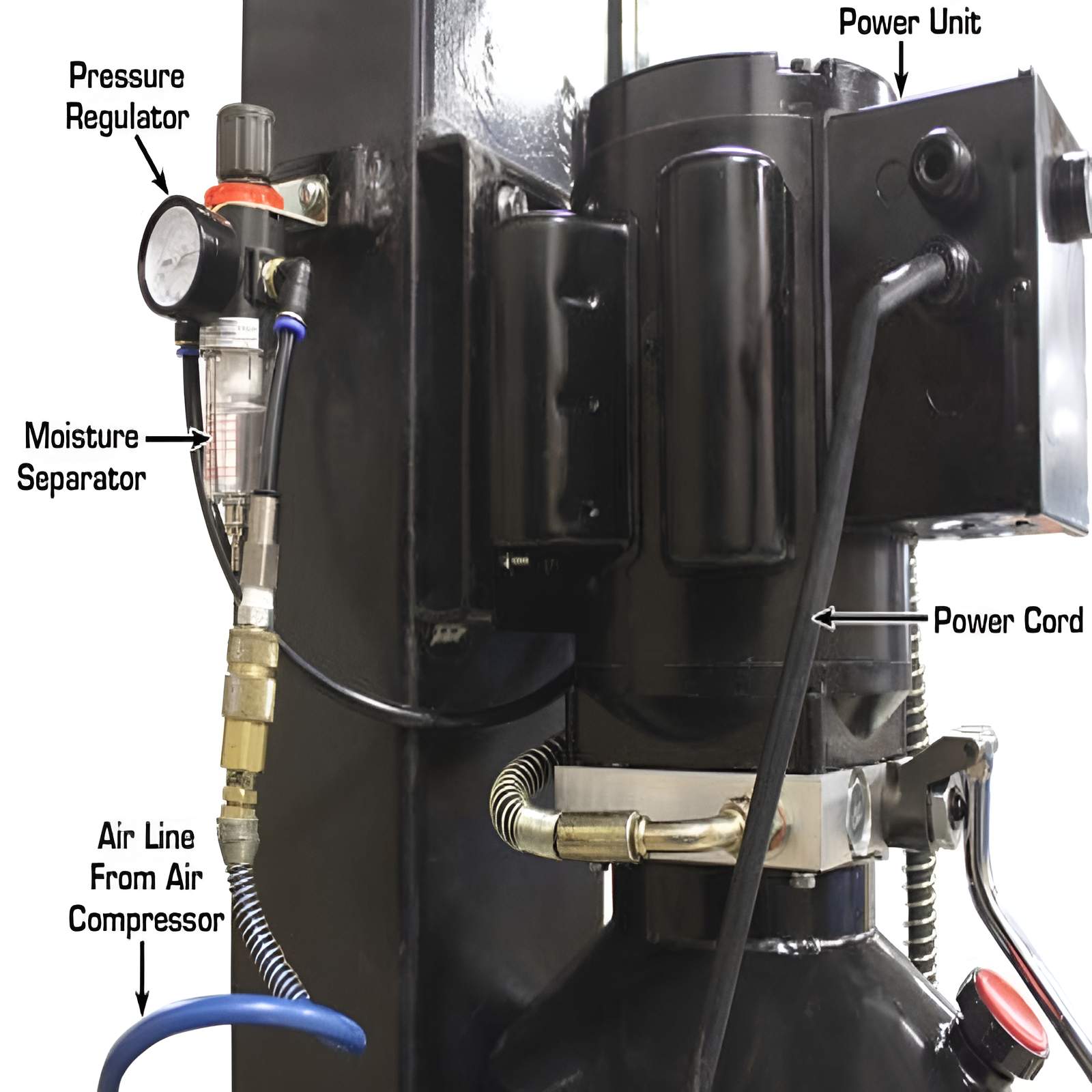

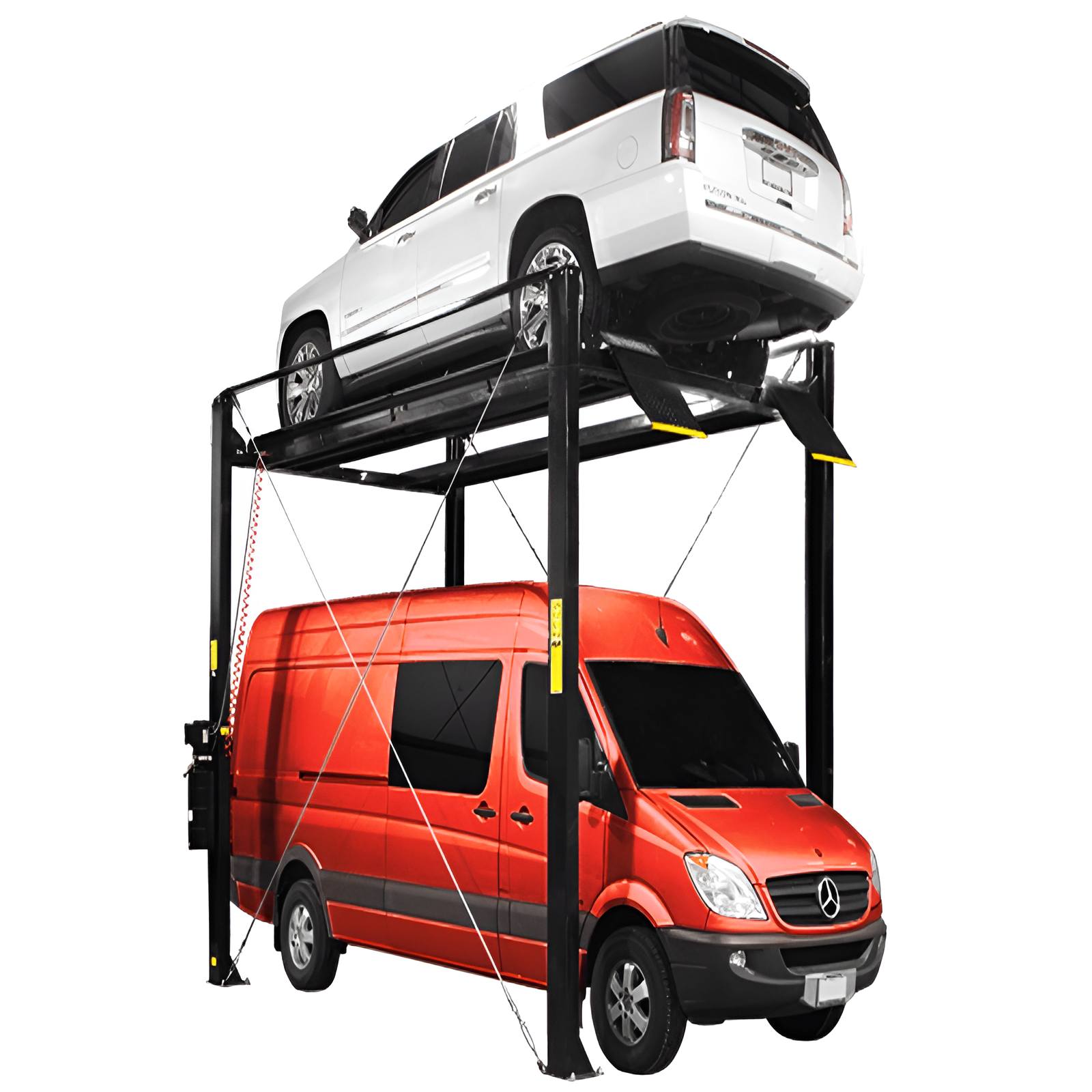

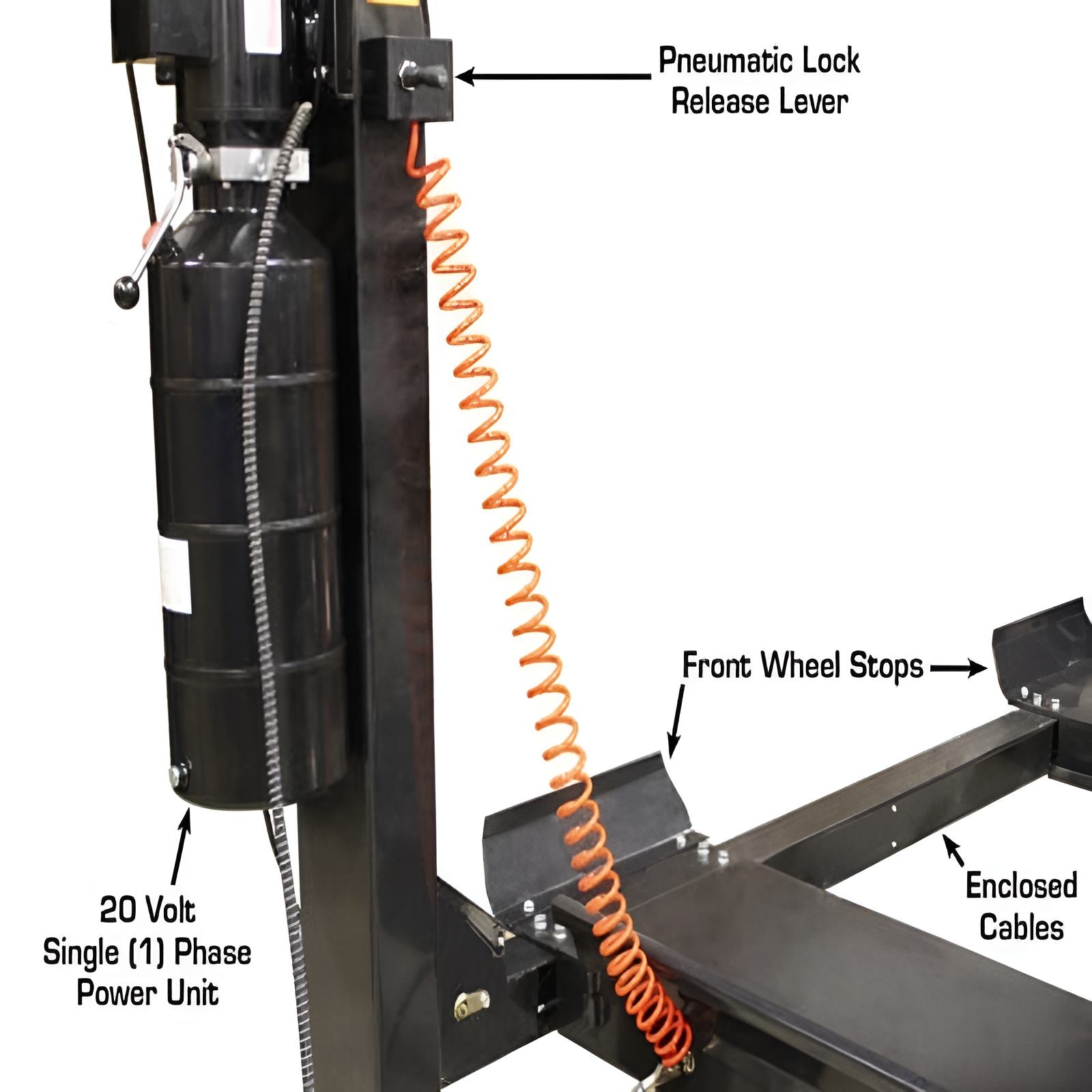

 The Atlas® Garage PRO7000ST lift is ideal for car enthusiasts who have high ceilings and need to store taller vehicles on top of regular ones. With a lifting capacity of 7,000 lbs., it can raise vehicles over 12 feet (144 inches) under its runway. This four post lift features heavy duty runways, similar to the Atlas® Garage PRO9000, with welded tracks that allow for the use of a rolling bridge jack, such as the Atlas® RJ6BK or Atlas® RJ6BKAH. The extra tall height gives customers the space to park taller vehicles under the ones on top. With 21 locking positions and an adjustable lock ladder, this lift offers almost infinite locking heights. A single point release toggle, located next to the power unit, easily and automatically unlocks all four spring-loaded pneumatic locks. Please note that compressed air is required for unlocking (air supply not included).

Post Lift PRO7000ST Specifications:

• Capacity: 7000 lbs

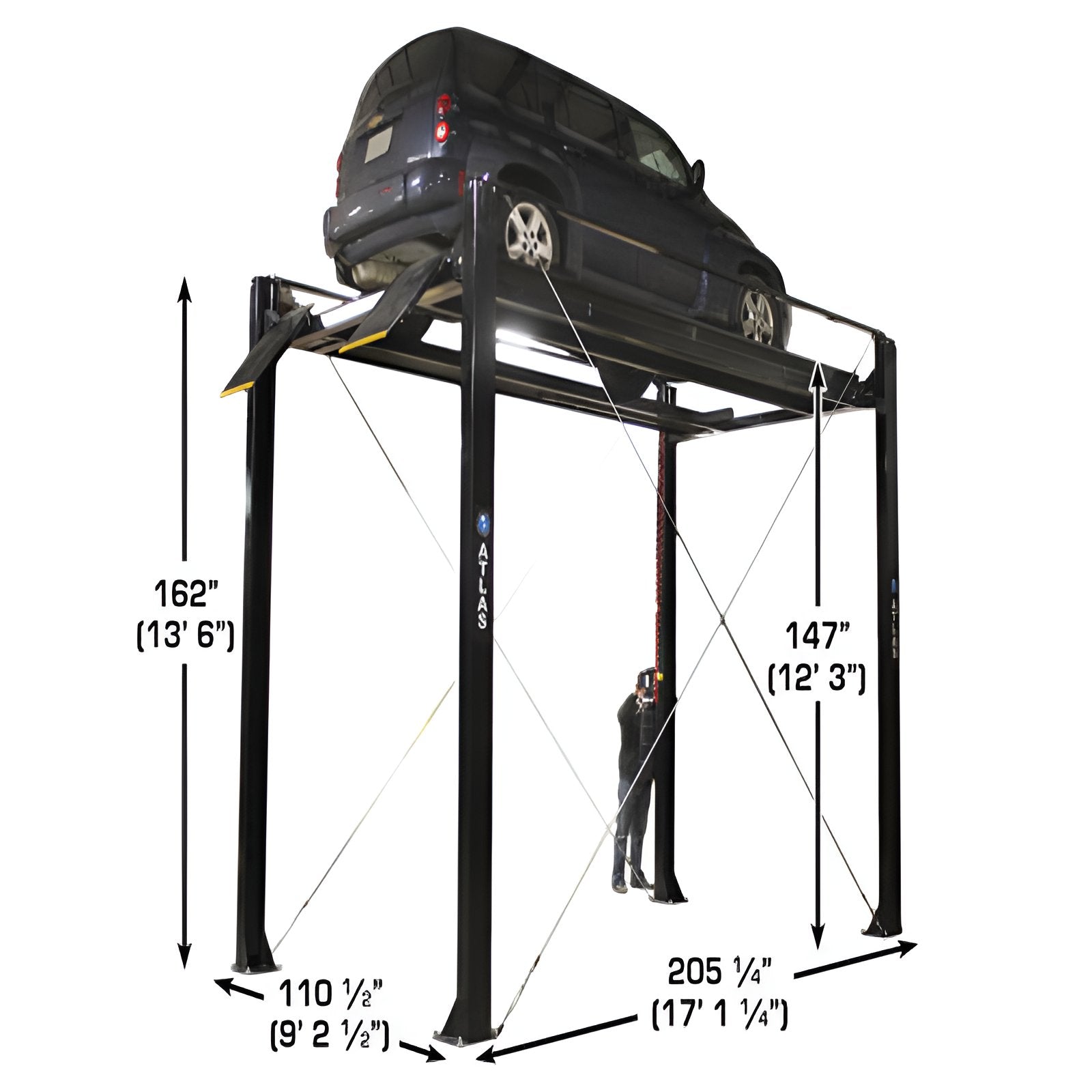

• Lifting Height, Top of Runway: 147" (12' 3")

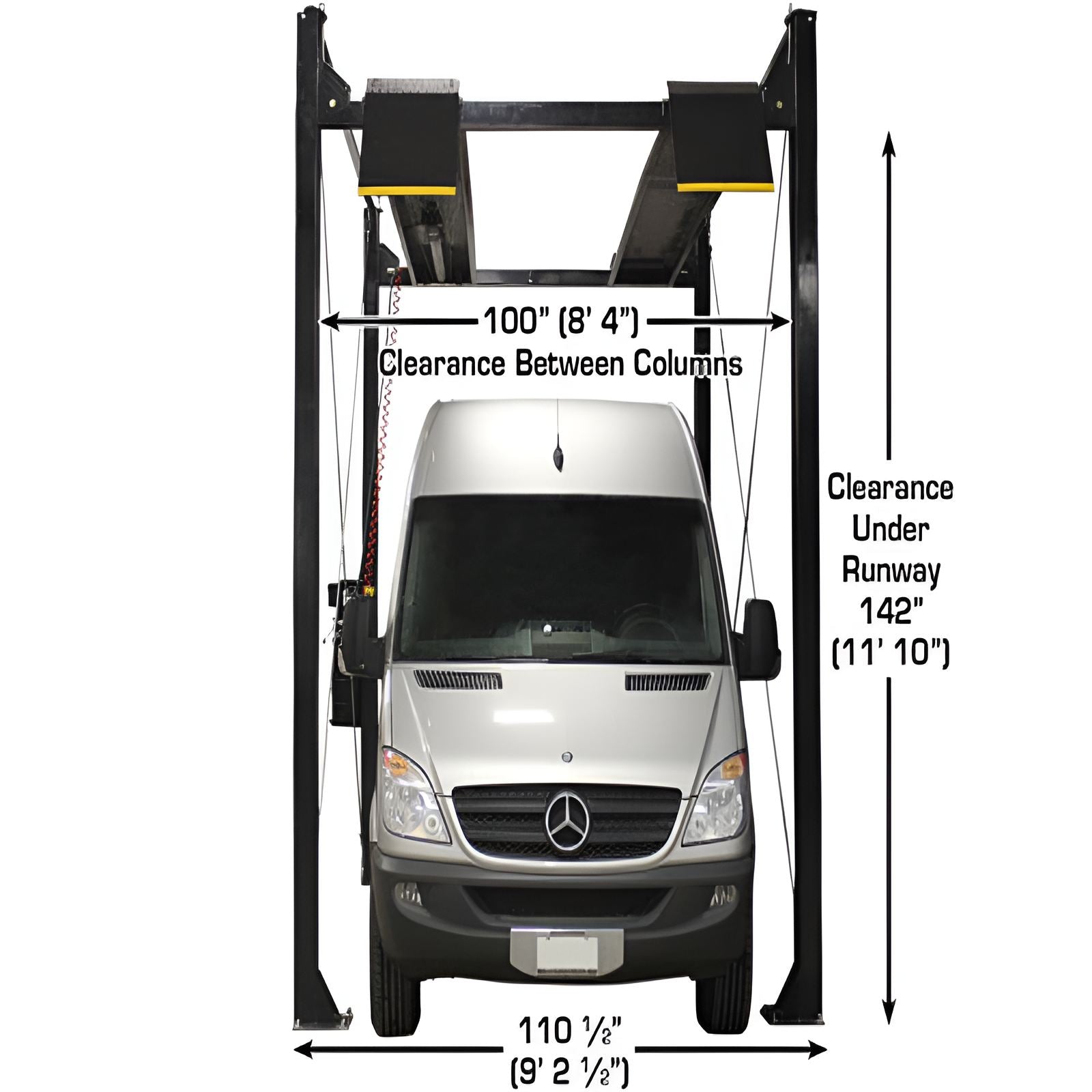

• Clearance Under Runways: 142" (11' 10")

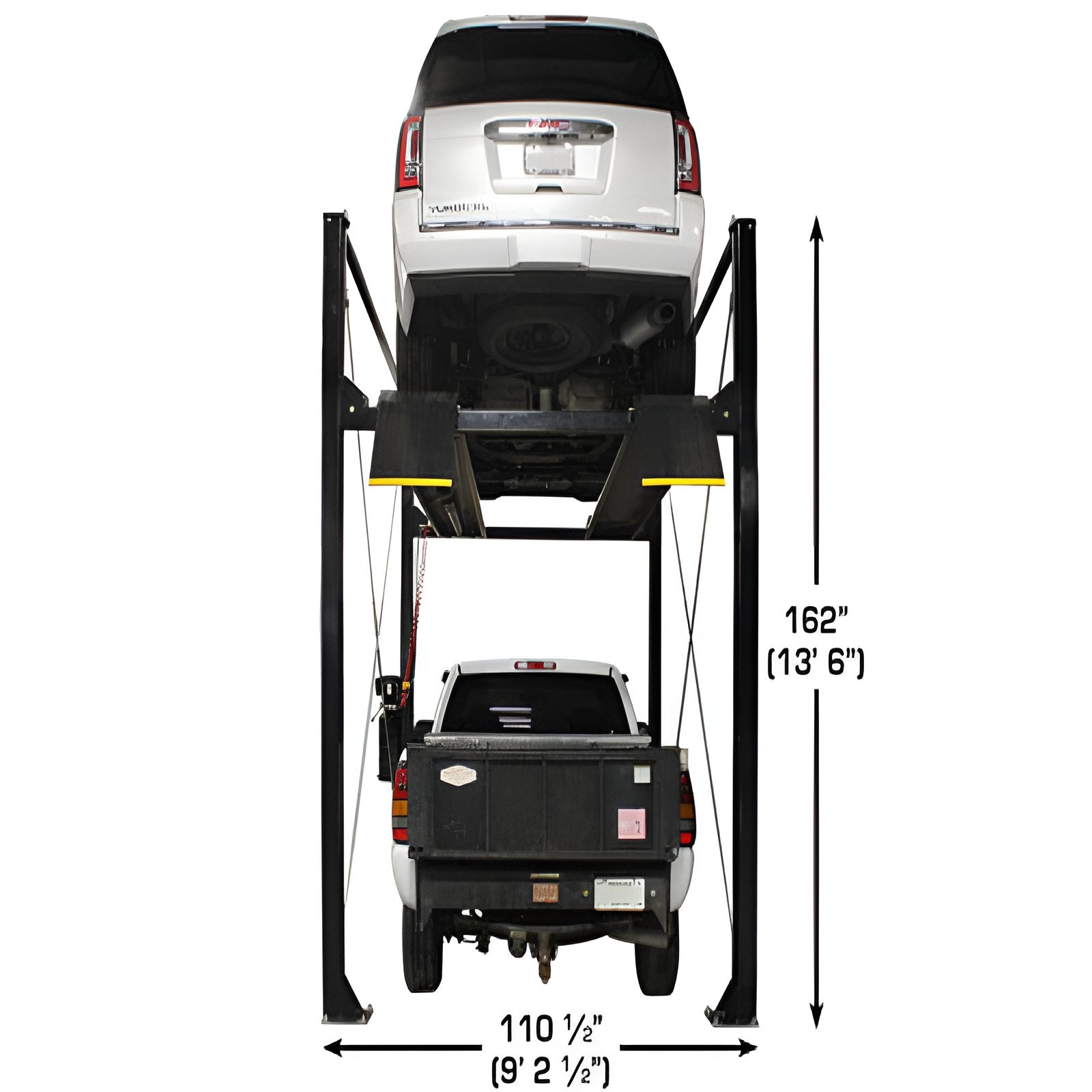

• Height of Columns: 162" (13' 6")
• Overall Width: 110 1/2" (9' 2 1/2") w/ motor 123" (10' 3")

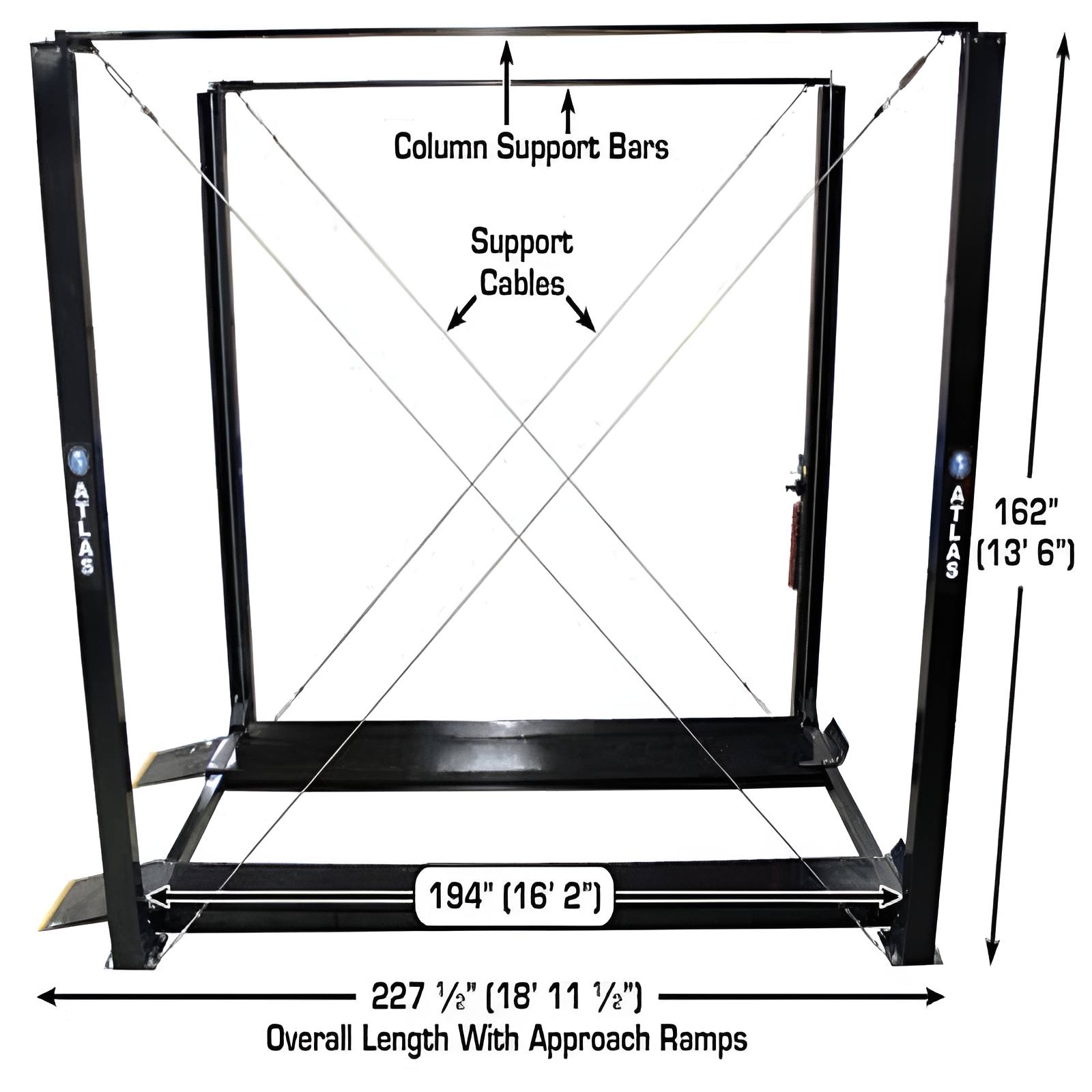

• Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
• Runway Length: 194" (16' 2")
• Runway Width: 21"
• Runway Thickness: 4 1/2"

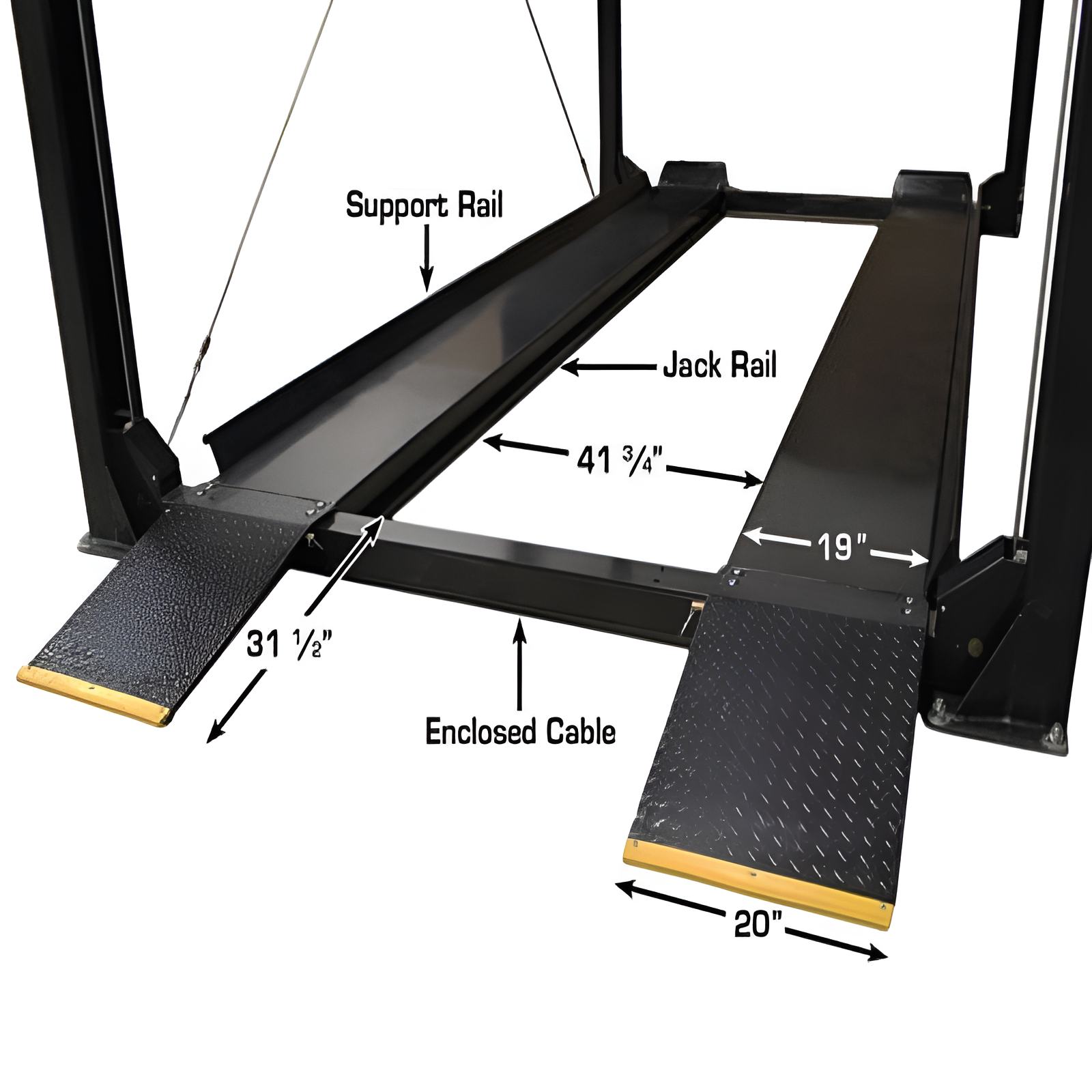

• Width Between Runways: 45" w/ Rail 41 3/4"
• Outside Runway to Outside Runway: 83" (6' 11")

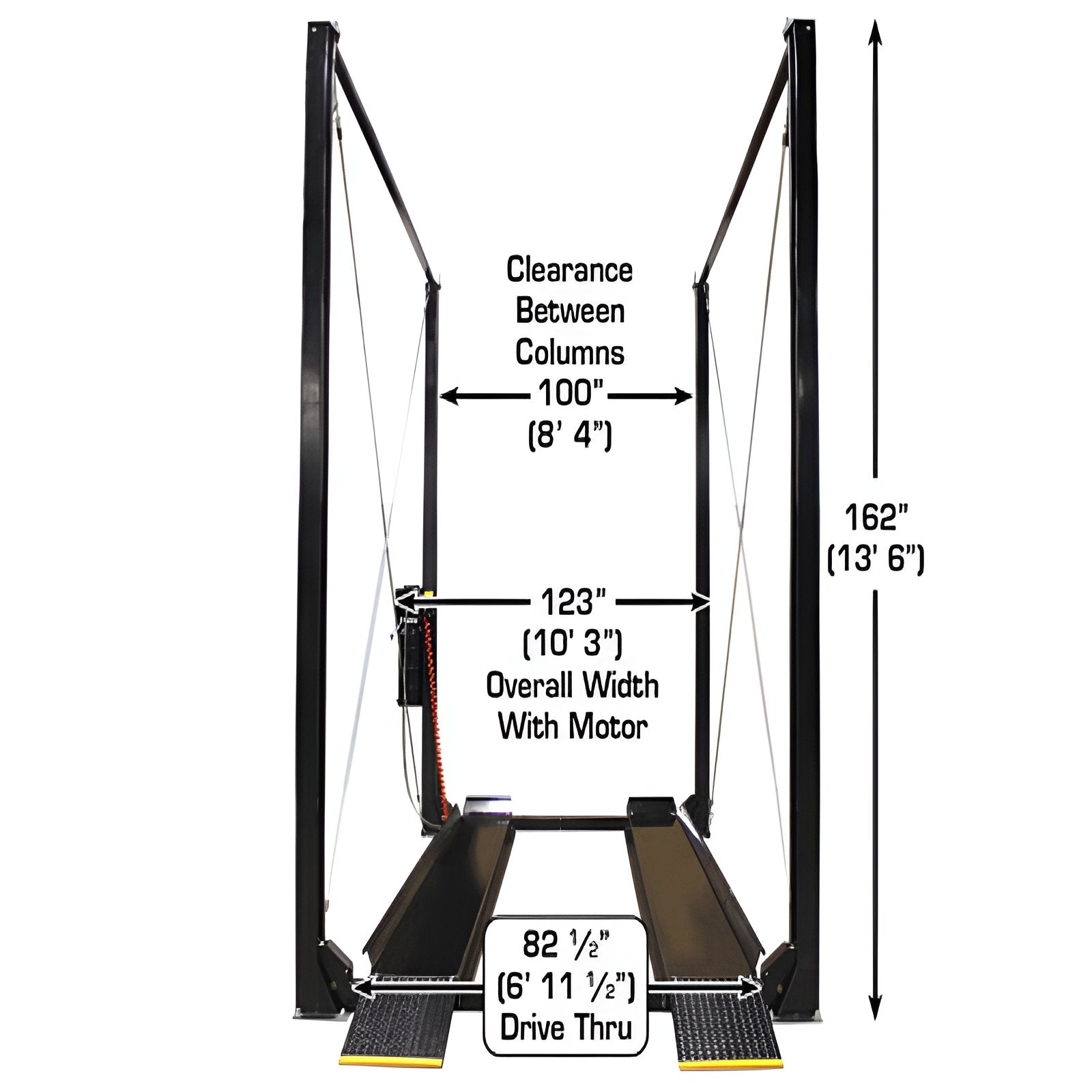

• Clearance Between Columns: 100" (8' 4")
• Length Between Columns: 185" (15' 5")
• Drive Thru: 82 1/2" (6' 10 1/2")
• Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
• Oil Requirement: 5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2866 lbs
• Pallet Size:  204" Long x 41-1/2" Tall x 22" Wide

PRO7000ST 7,000 lb Post Lift Special Features:

• Capacity: 7,000lb
• Heavy Duty
• Super Tall Lifting Height: (12'-3")
• Diamond Plated Runways
• Lock Release: Single-Point, Pneumatic Locks)
• Lock Design: Lock Ladder w/ Double Lock Safety System
• Finish: Powder Coat
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
• Unit Includes:
•      Steel Approach Ramps Included
•      Mounting Hardware

PRO7000ST Four Post Lift Optional Items (sold separately):

• RJ6BK Rolling Jack
• RJ6BKAH Rolling Jack

Atlas PRO7000ST Documentation:

   Atlas PRO7000ST Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $1199

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

**THIS IS A SPECIAL-ORDER ITEM - LEADTIMES VARY (TYPICALLY 4-6 WEEKS)

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Indianapolis, IN
