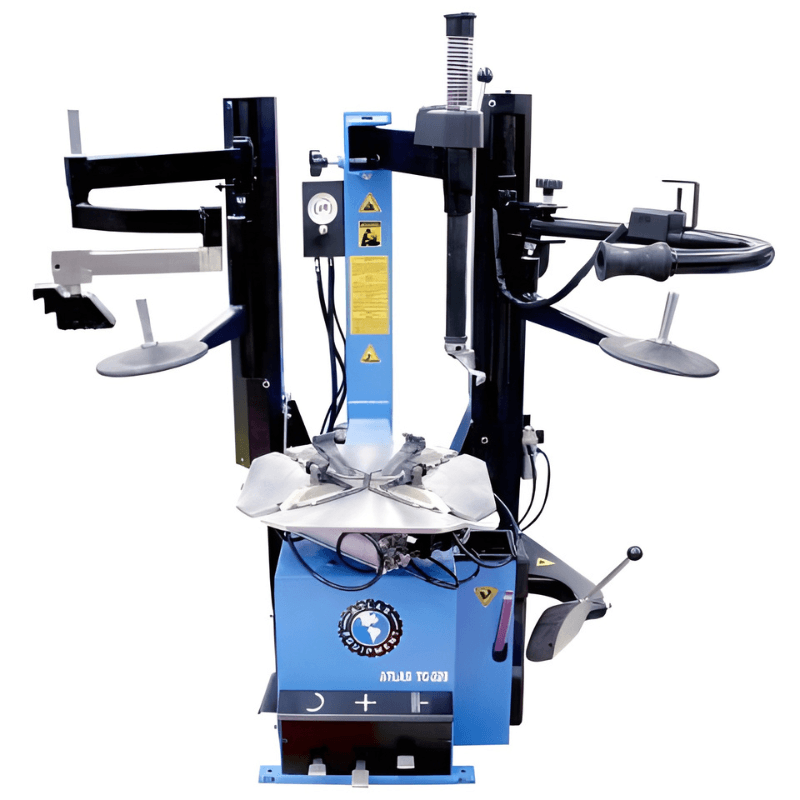

Atlas TC229DAA Rim-Clamp Tire Changer w/ Dual Assist Arms

SKU ATETC229DAA
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,199.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

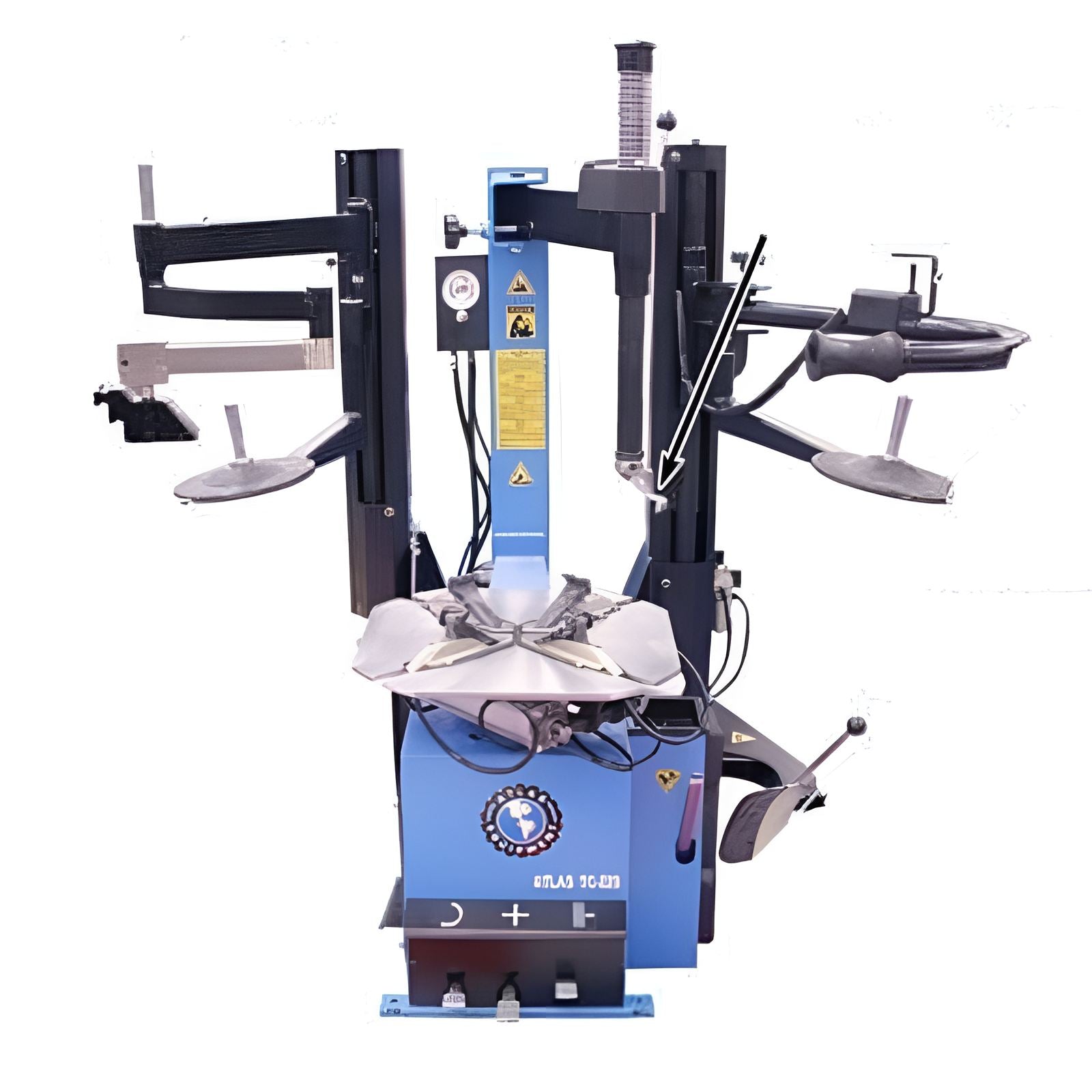

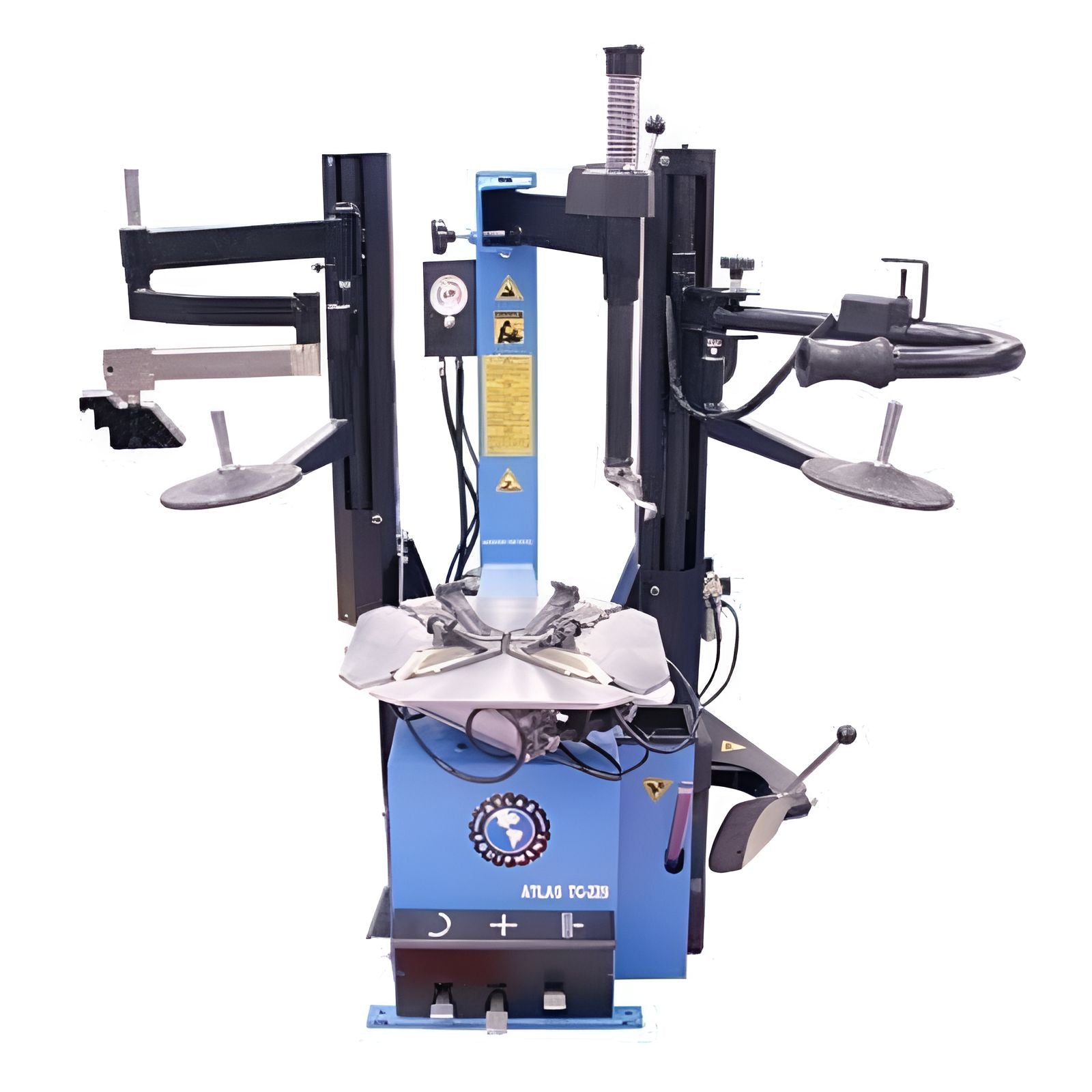

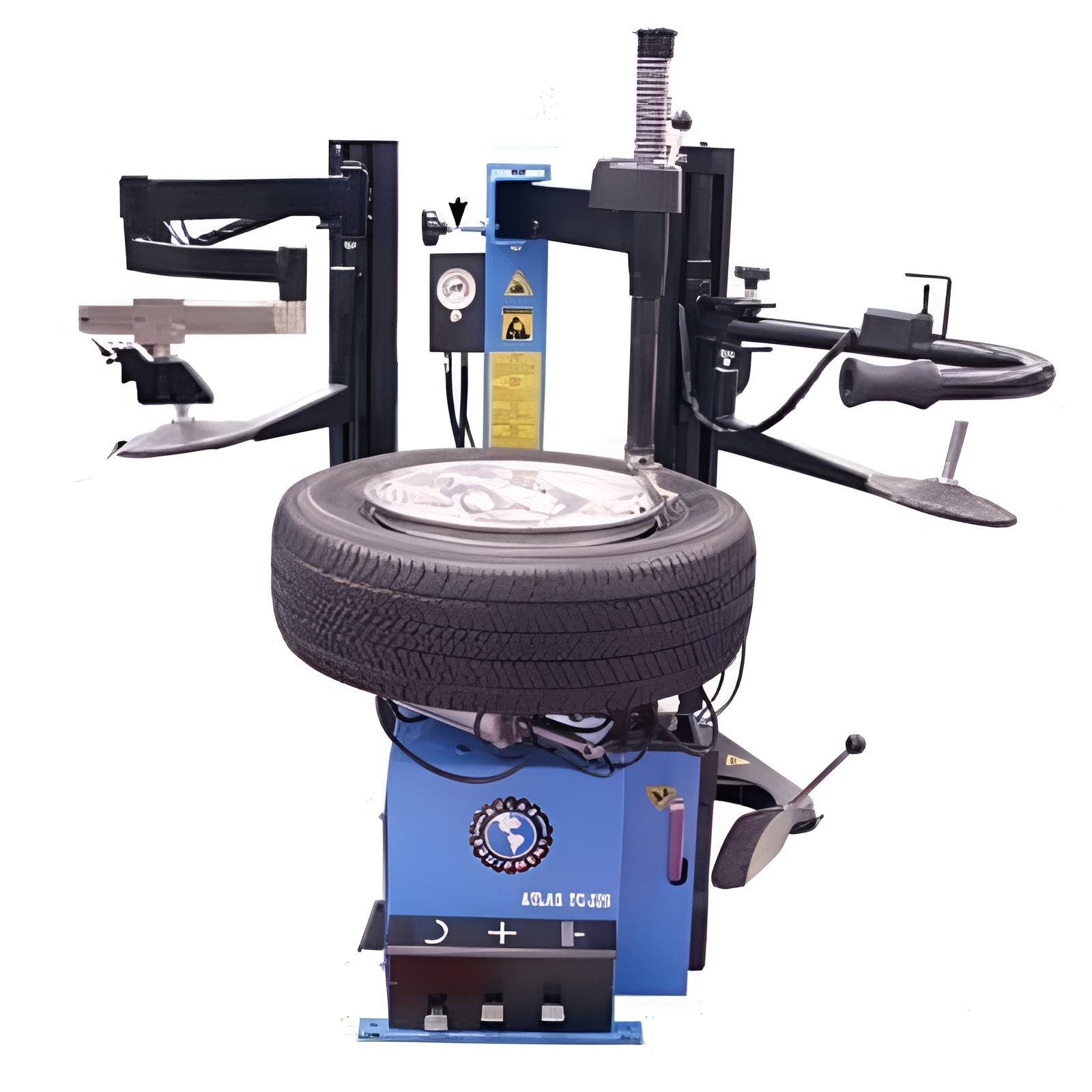

TC229DAA Tire Changer By Atlas

Ever felt like you needed octopus arms to change those pesky low-profile tires? The struggle is real, and it's costing you time and sanity. But fear not, fellow tire warriors! The Atlas® TC229DAA is here to save the day - and days to come.

This tire-changing beast comes equipped with dual assist arms that work like your own personal pit crew. Say goodbye to wrestling with stiff sidewalls and hello to effortless changes. With a maximum tire diameter of 39" and the ability to handle rims up to 25 1/4", this machine is ready for anything you throw at it. Plus, its built-in "Beadblaster" system makes inflating those hard-to-inflate tires a breeze. From homeowners to small garages and ATV/Motorcycle dealerships, the TC229DAA is your ticket to tire-changing nirvana.

Tire Changer TC229DAA Specification:

  • Rims: Steel, Aluminum, Alloy

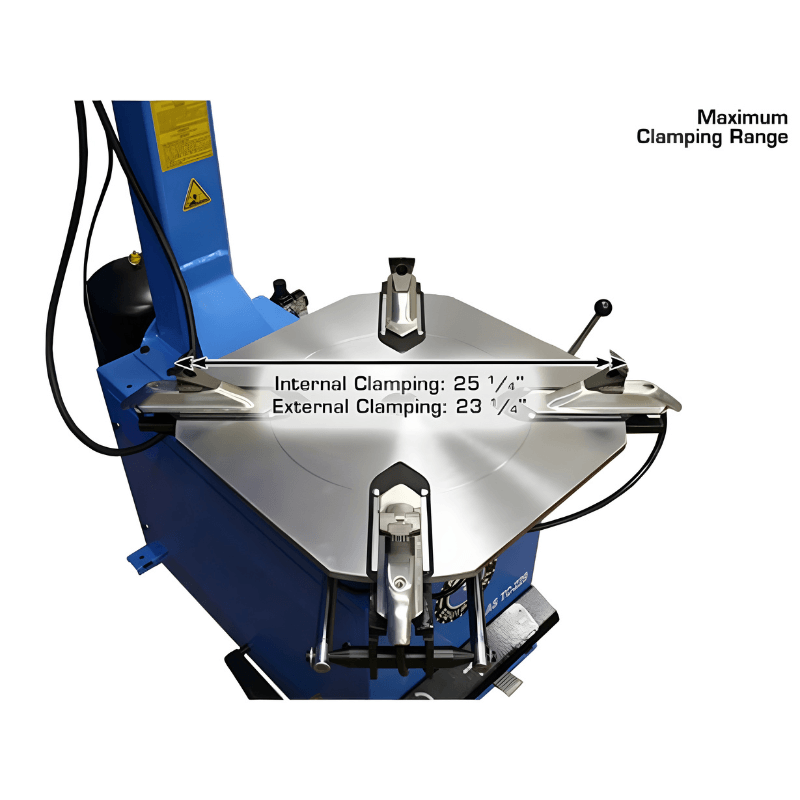

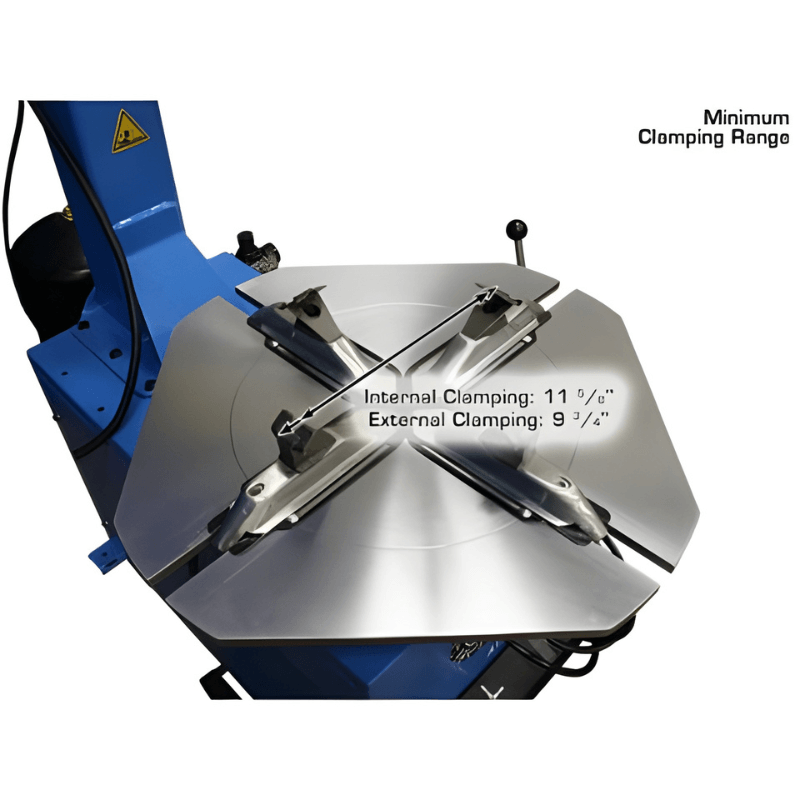

  • External Locking Rim Dimension (3 Positions): 1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4"
  • Internal Locking Rim Dimension (3 Positions): 1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4"
  • Maximum Tire Diameter: 39"
  • Maximum Wheel Width (Bead Breaker): 13"

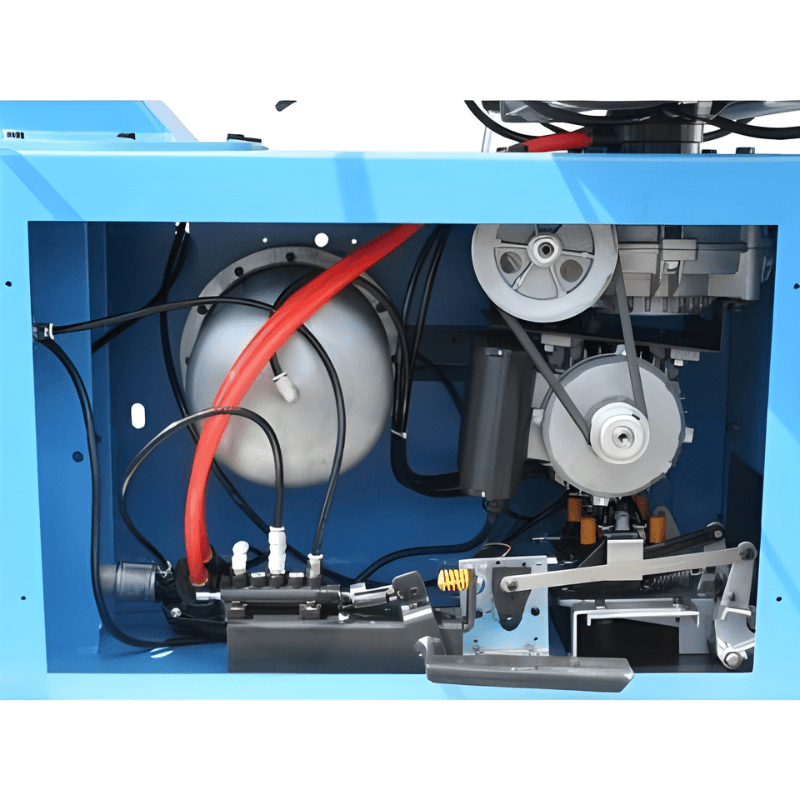

  • Table Motor: 1 HP
  • Turntable Rotating Torque: 885 ft/lbs

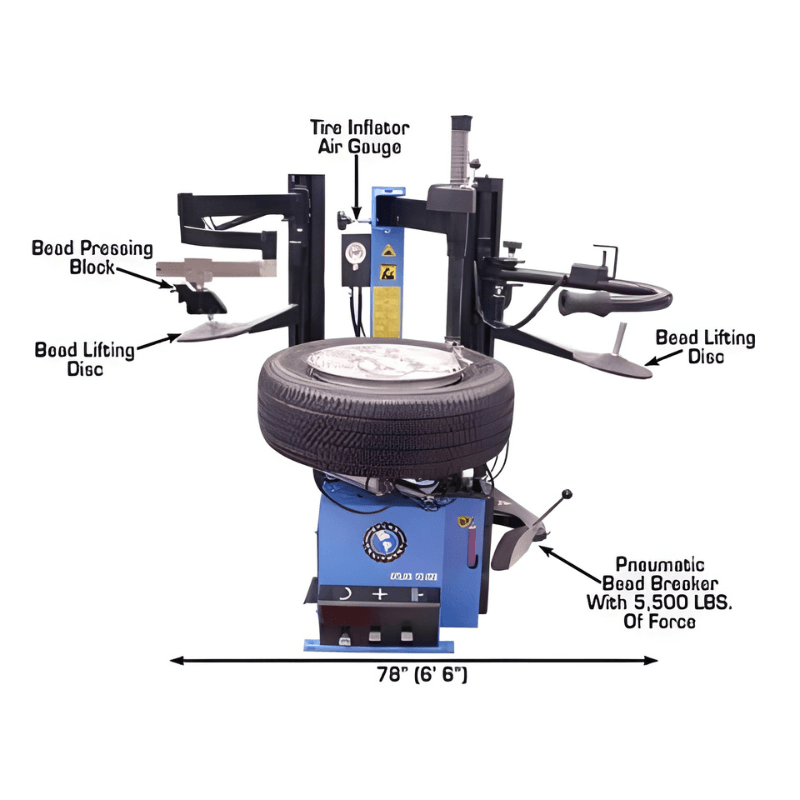

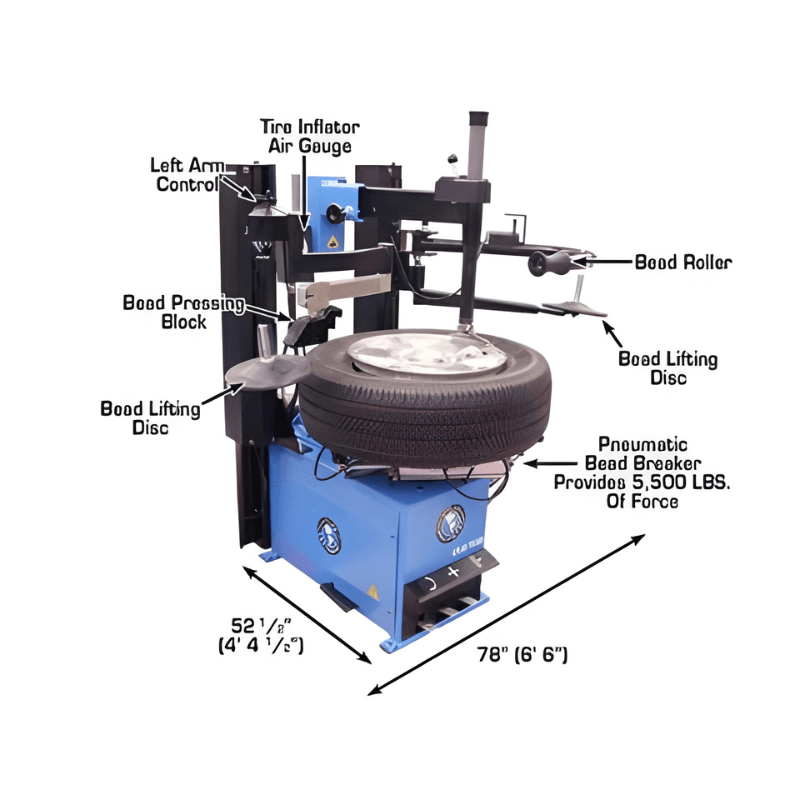

  • Bead Breaker: 5,500 LB. Force
  • Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
  • Operating Voltage: 110volt

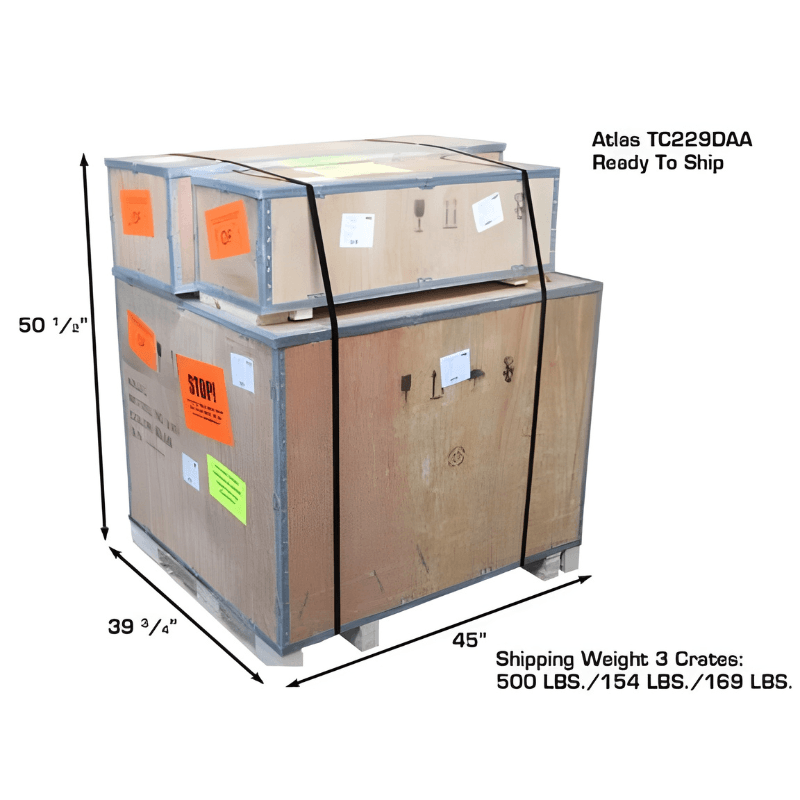

  • Shipping Weight: 850 lbs.

    TC229DAA Tire Changer Special Features:

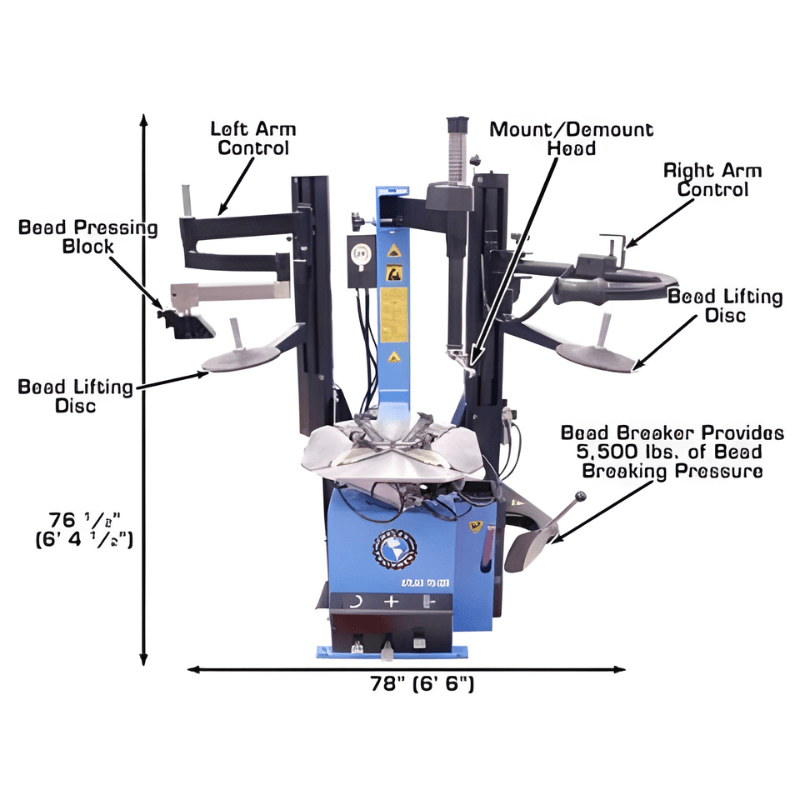

    • Rim Clamp/Swing Arm Tire Changer

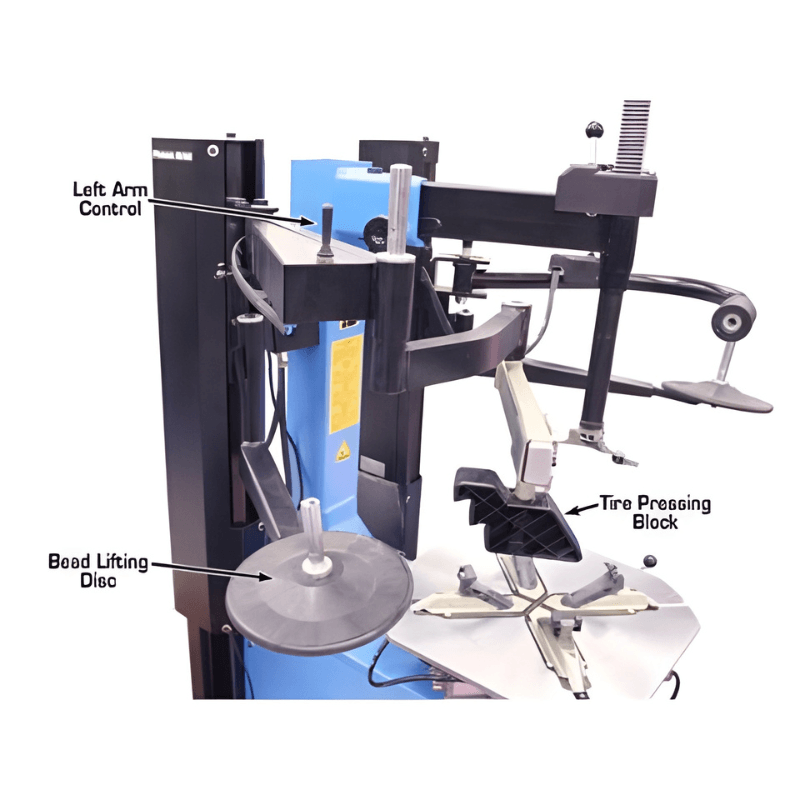

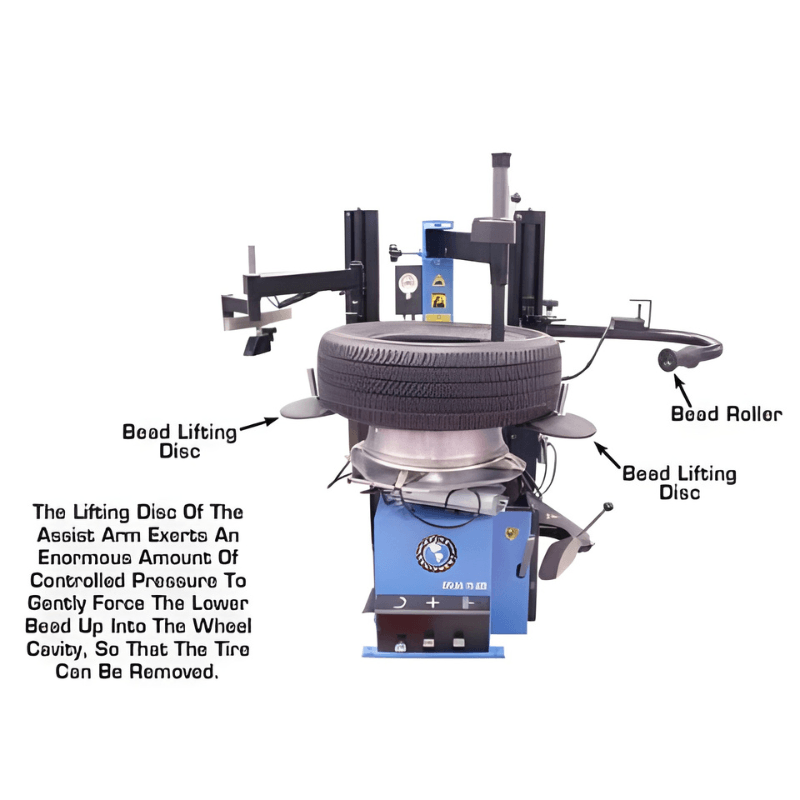

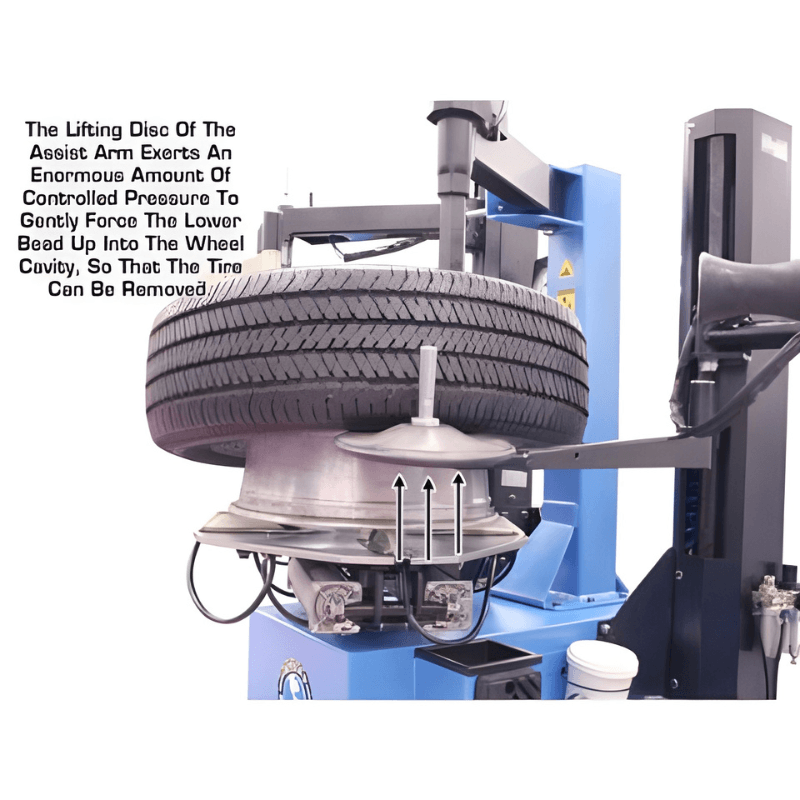

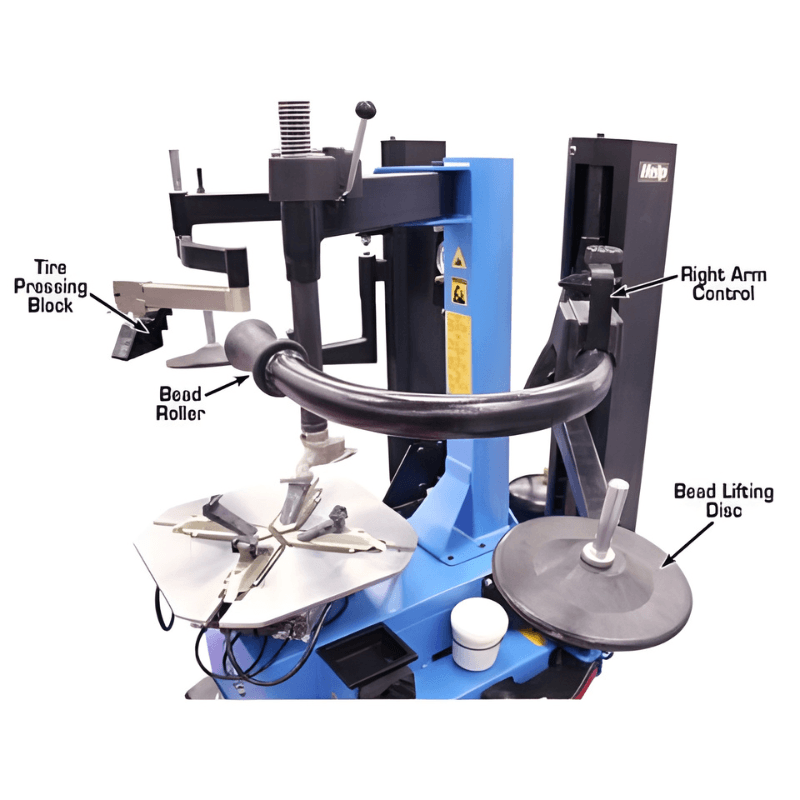

    • Dual Assist Arms Included
    • Air operated jaws & bead breaker (external air supply required)
    • Electric turntable
    • Adjustable jaws, three mounting positions

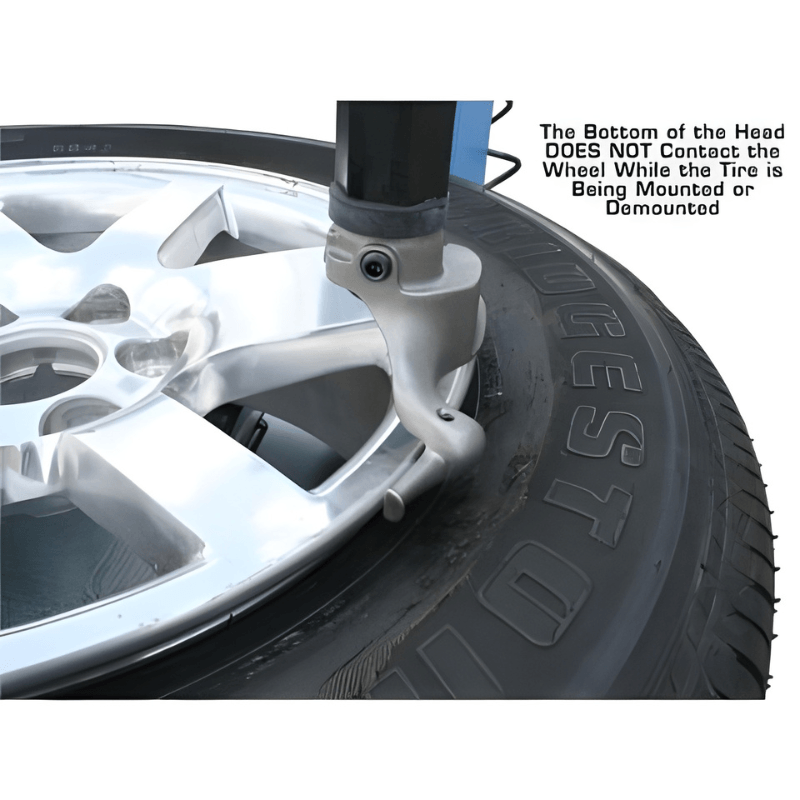

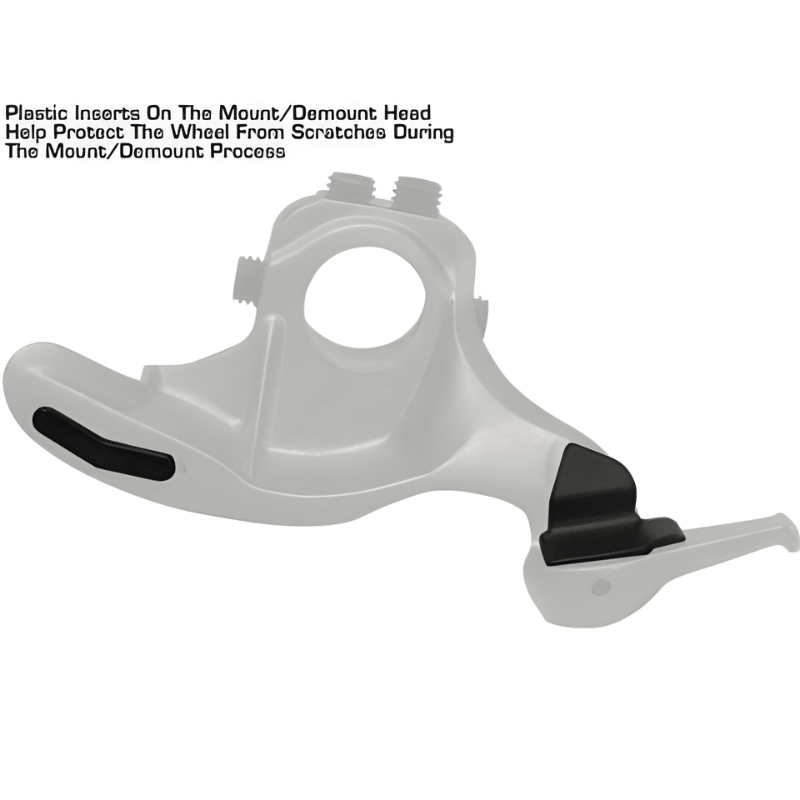

    • Metal mount/demount head w/ metal roller or replaceable plastic inserts
    • Column mounted inflator box w/ gauge Included
    • Filter/Regulator/Lubricator Included

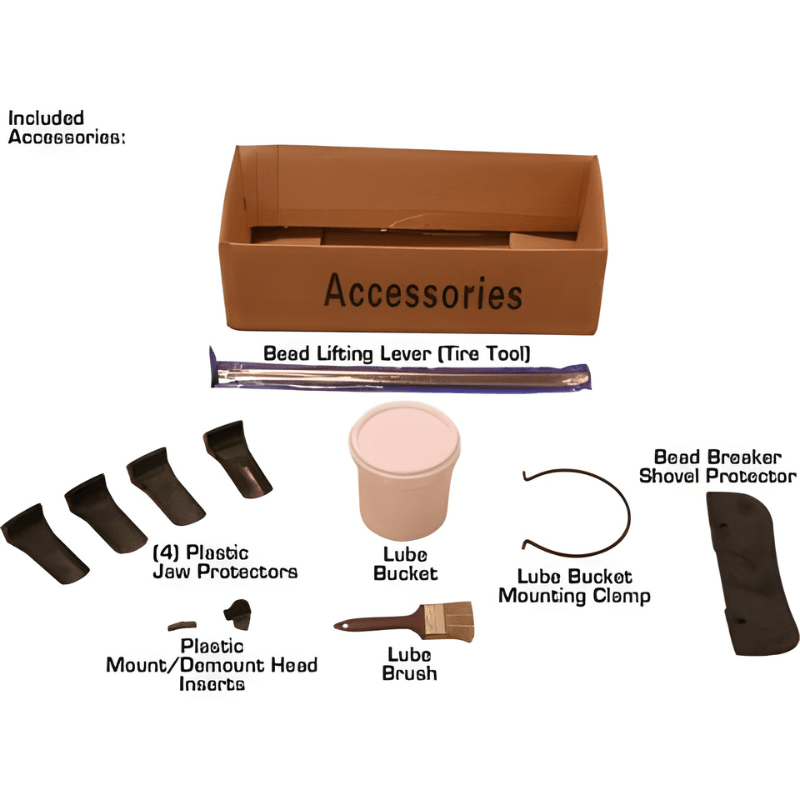

    • 20″ Tire Tool Included
    • Lube Bucket with Brush Included
    • Set of Large Plastic Jaw Covers Included
    • Plastic Cover for Bead Breaker Shovel Included
    • Multiple Replacement Plastic Inserts for M/D Head Included

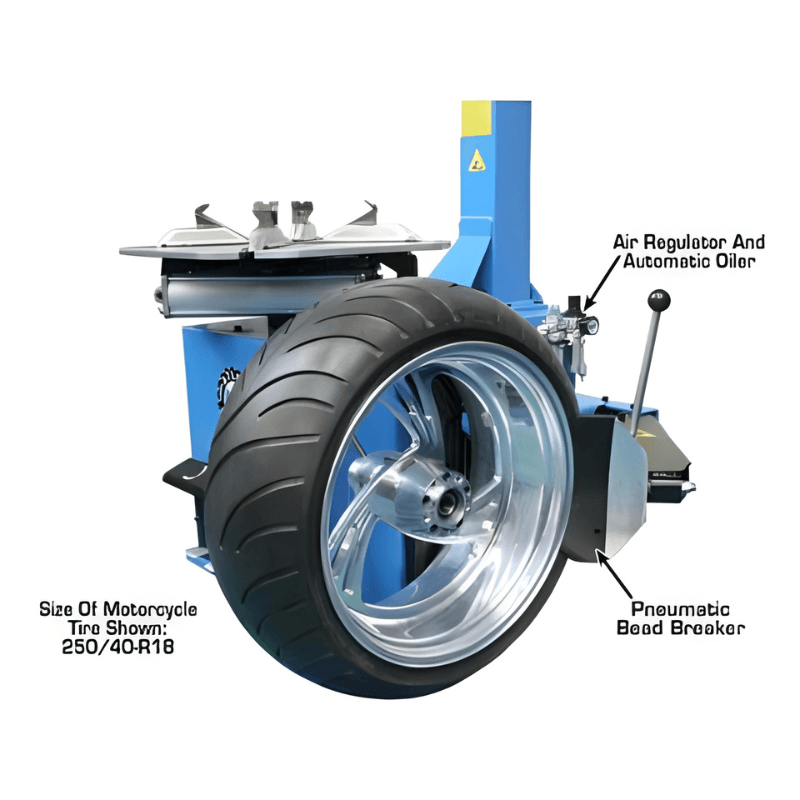

    • Motorcycle and ATV adapters available (sold separately)

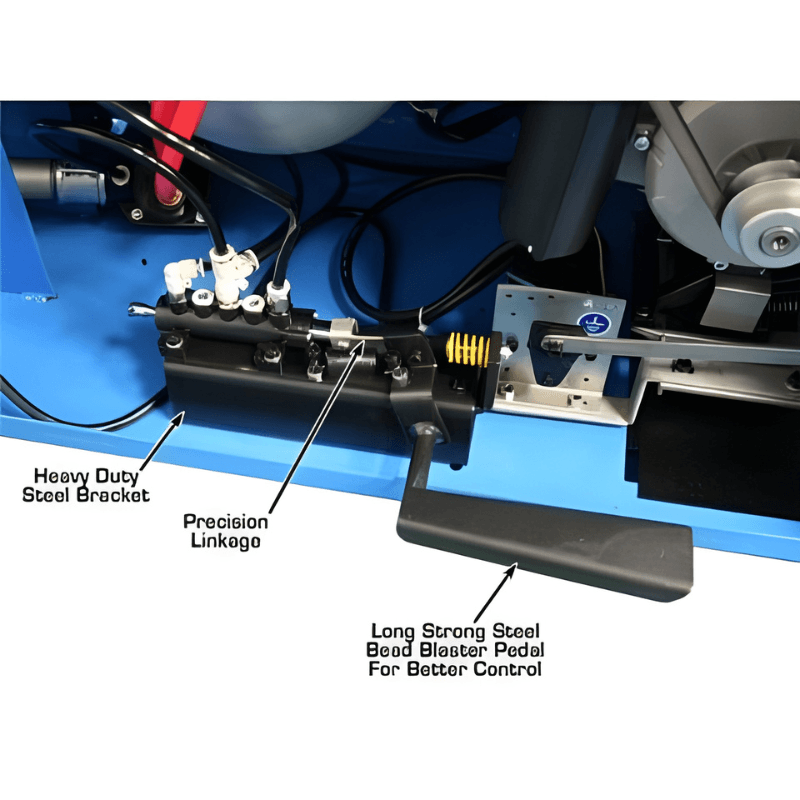

    • Built in “Beadblaster”

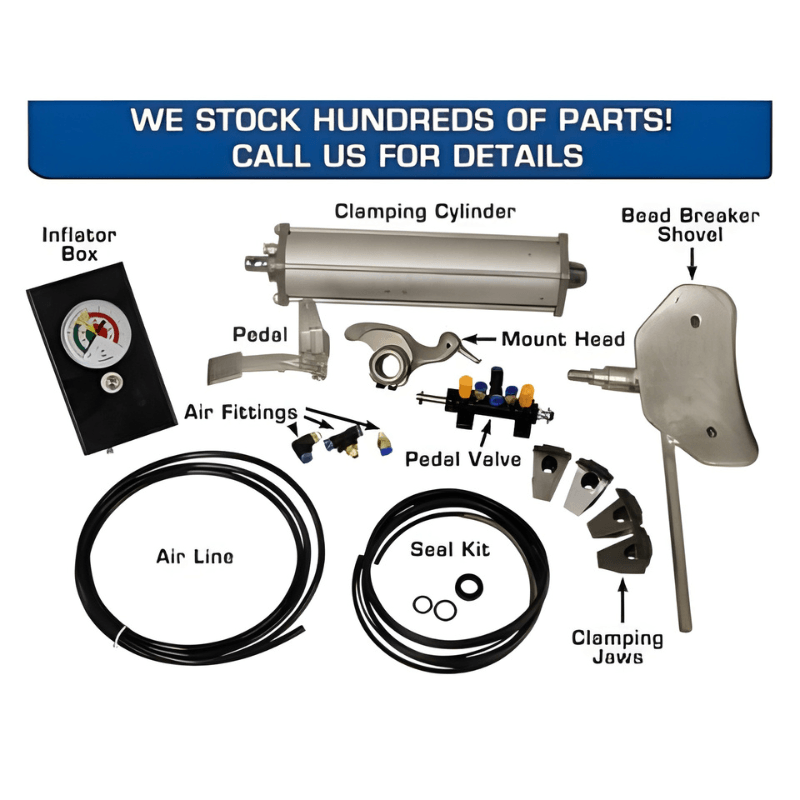

    • Replacement Parts & Wear Items Always in Stock
    • 1 Year Parts Only Warranty

    Atlas TC229DAA Documents:

    Tire Changer TC229DAA Product Manual  Atlas TC229DAA Tire Changer Product Manual

    This Item has a FLAT RATE SHIPPING FEE: $299

    Warehouse Pickup locations (No shipping charge):

    • Atlanta, GA
    • Dallas, TX
    • Fresno, CA
    • Indianapolis, IN
    • Phoenix, AZ
    • Somerset, NJ

    TC229DAA Video
