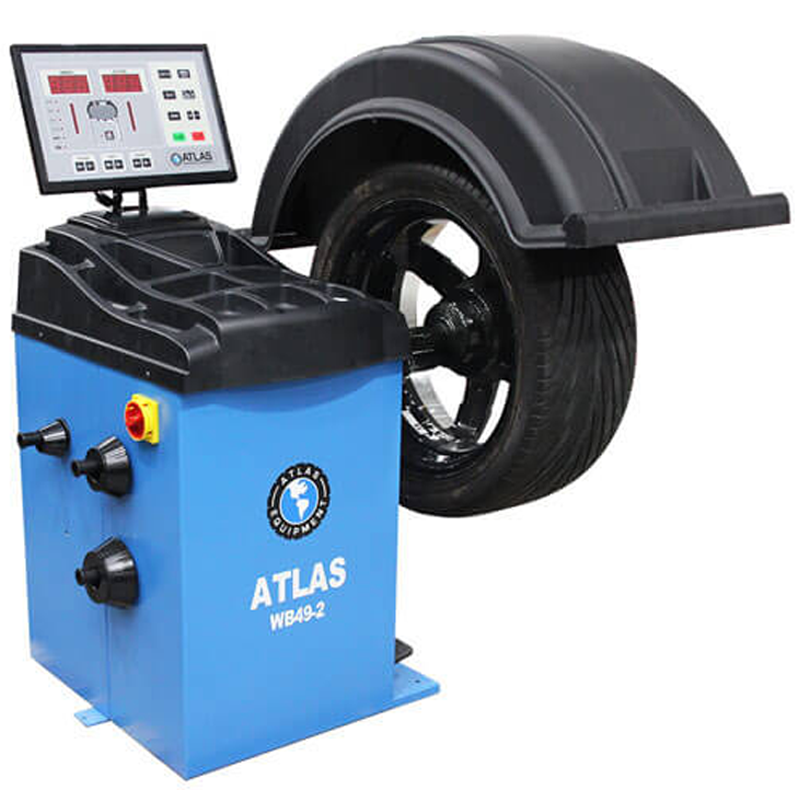

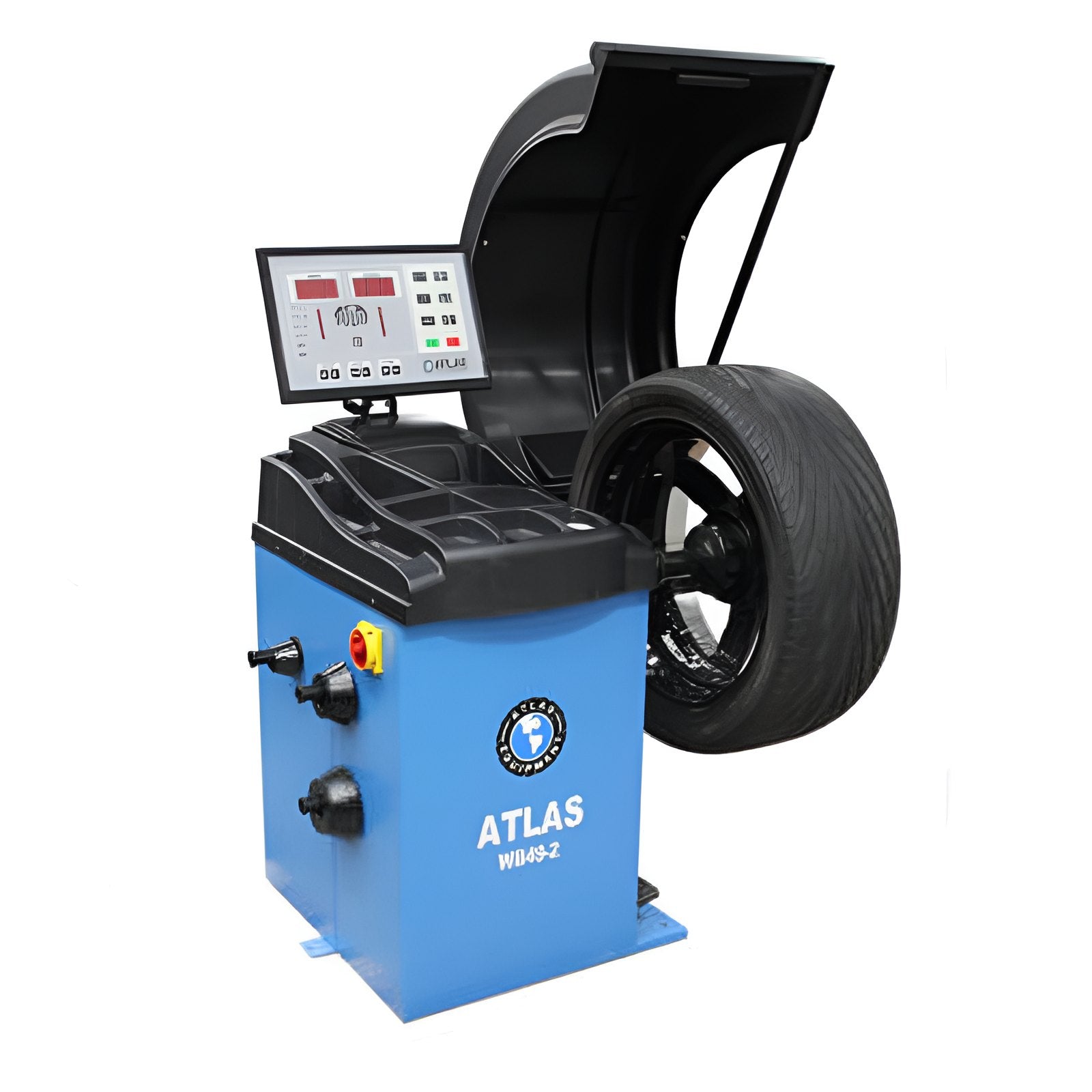

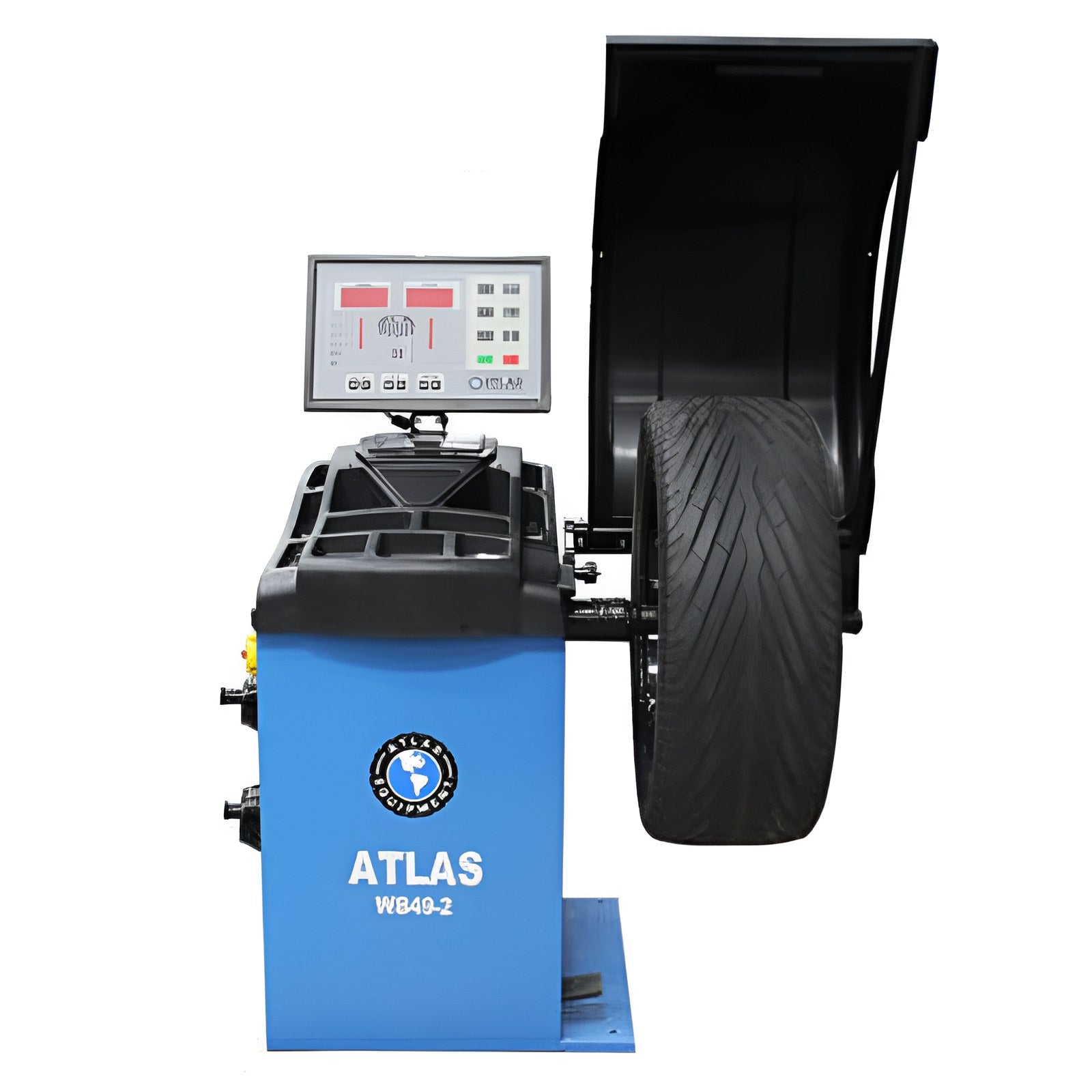

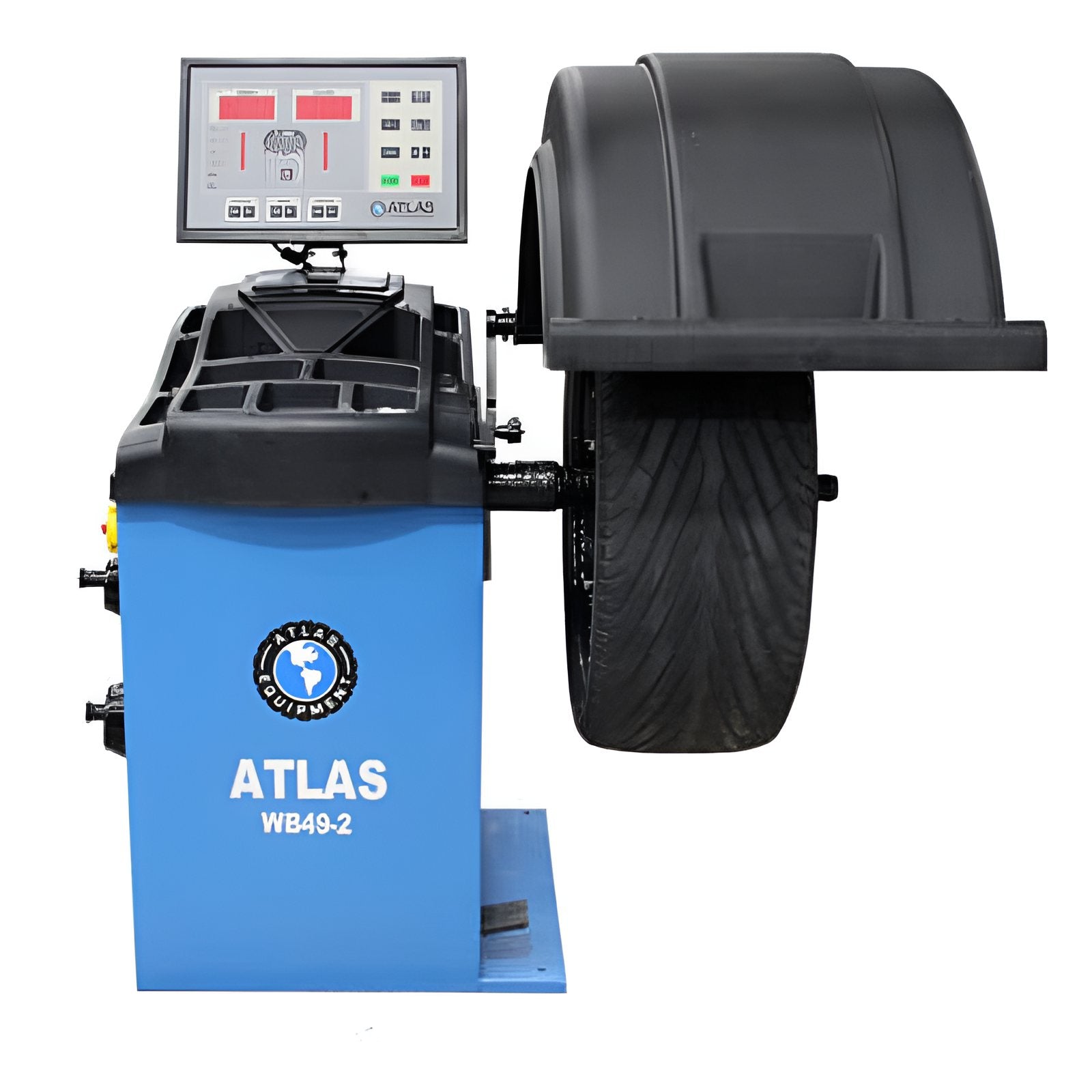

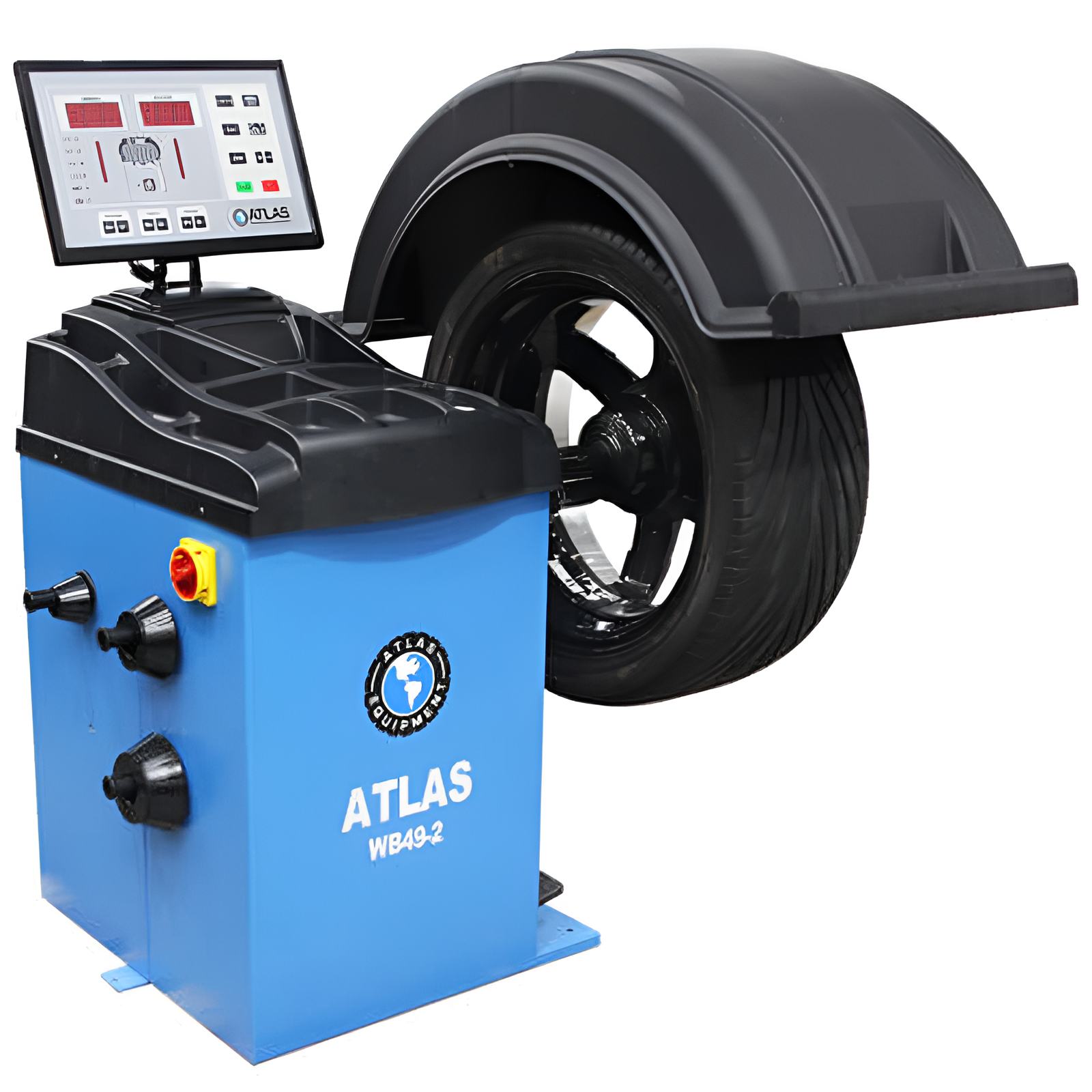

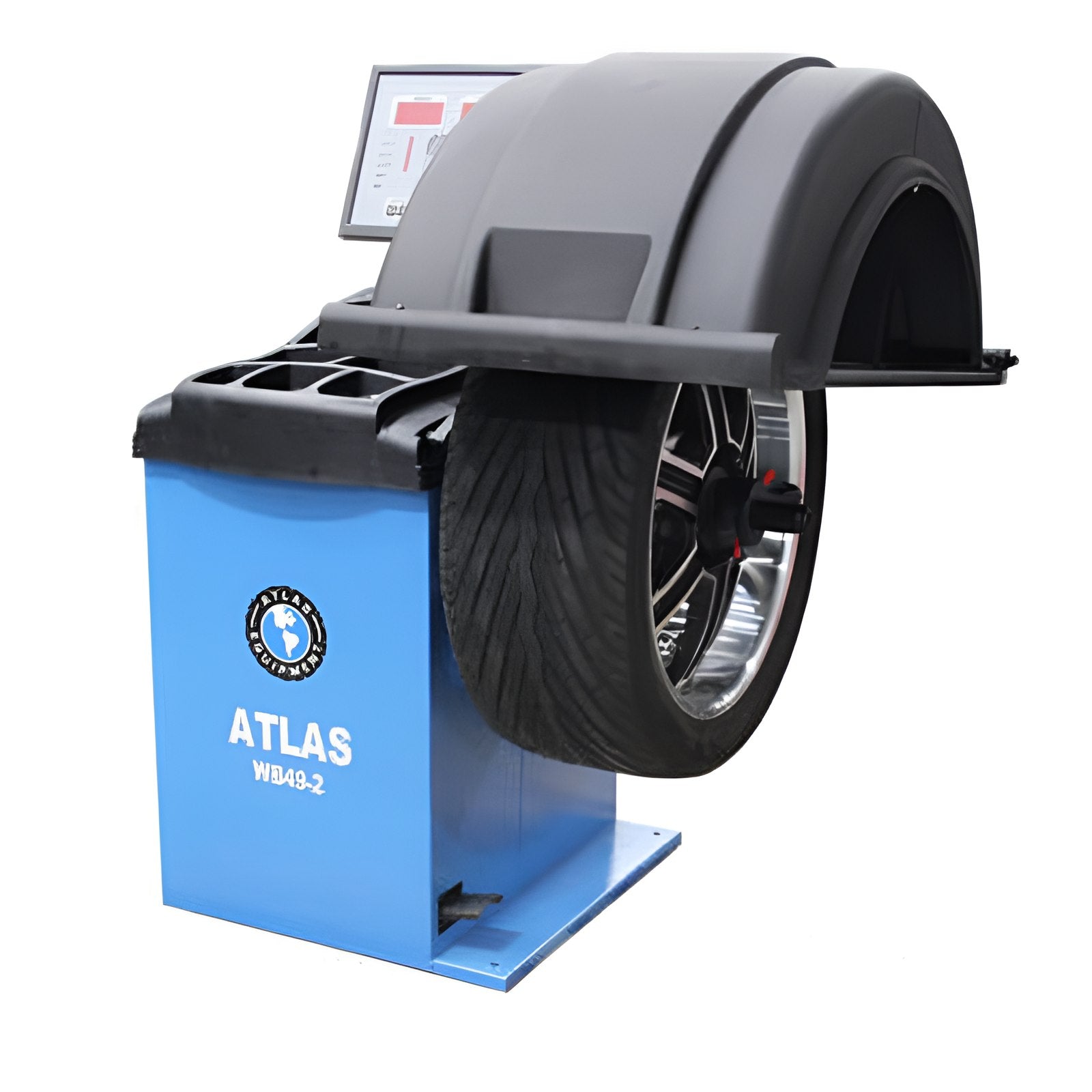

Atlas WB49-2 Premium 2D Computer Wheel Balancer

WB49-2 Wheel Balancer By Atlas

Introducing the Atlas® WB49-2, the pinnacle of wheel balancing technology in the latest Atlas® generation. This premium model showcases cutting-edge features tailored for optimal performance. Among its highlights is Automatic 2D Data Entry, streamlining the process by automatically inputting offset and diameter through the inner measuring gauge. A sleek LED display monitor enhances user experience, complementing the balancer's revamped chassis for a more functional and aesthetically pleasing design.

Luxury features abound in the WB49-2, including the Split-Weight Function, facilitating discreet weight placement behind spokes, and an automatic LED light illuminating the rim interior during weight application. Similar to its predecessor, the Atlas® WB41, it boasts a raised display for enhanced visibility and a spacious wheel weight tray for added convenience.

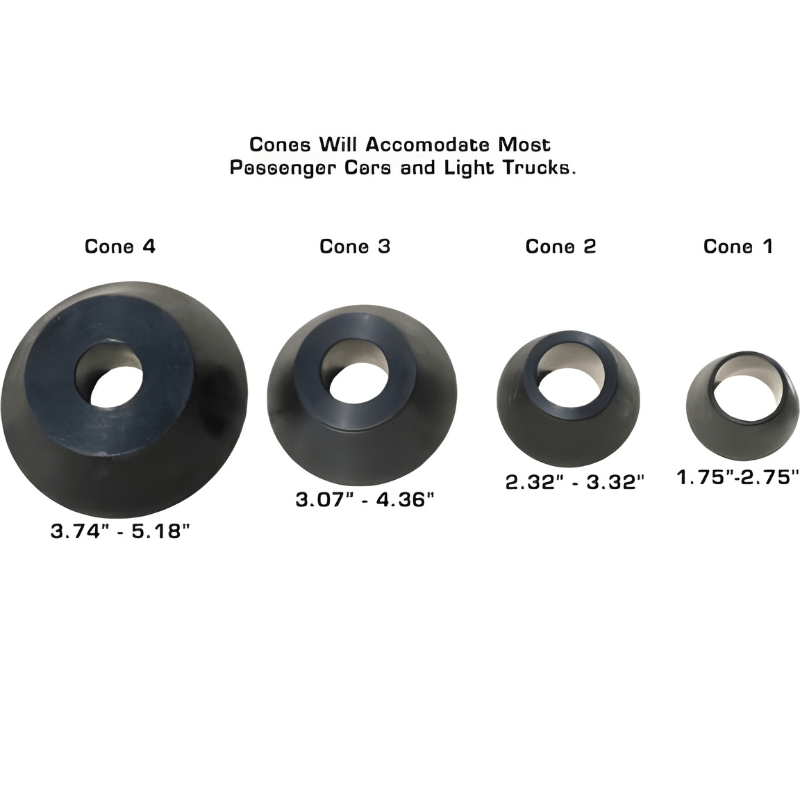

Equipped with self-diagnostic capabilities, the Atlas® WB49-2 empowers operators to swiftly identify and address issues by displaying error codes, eliminating the need for costly service technicians. Versatile and accommodating, it handles a wide array of wheels up to 32" in diameter, supported by a set of four cones catering to center holes ranging from 1.75" to 5.18".

The Atlas® WB49-2 excels in balancing wheels weighing up to 150 lbs, ensuring precision and accuracy beyond mere weight support. This distinction underscores its reliability and performance, setting it apart in the realm of wheel balancers.

Wheel Balancer WB49-2 Specification:

• Max Tire Diameter: 39" (3" 6')
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"

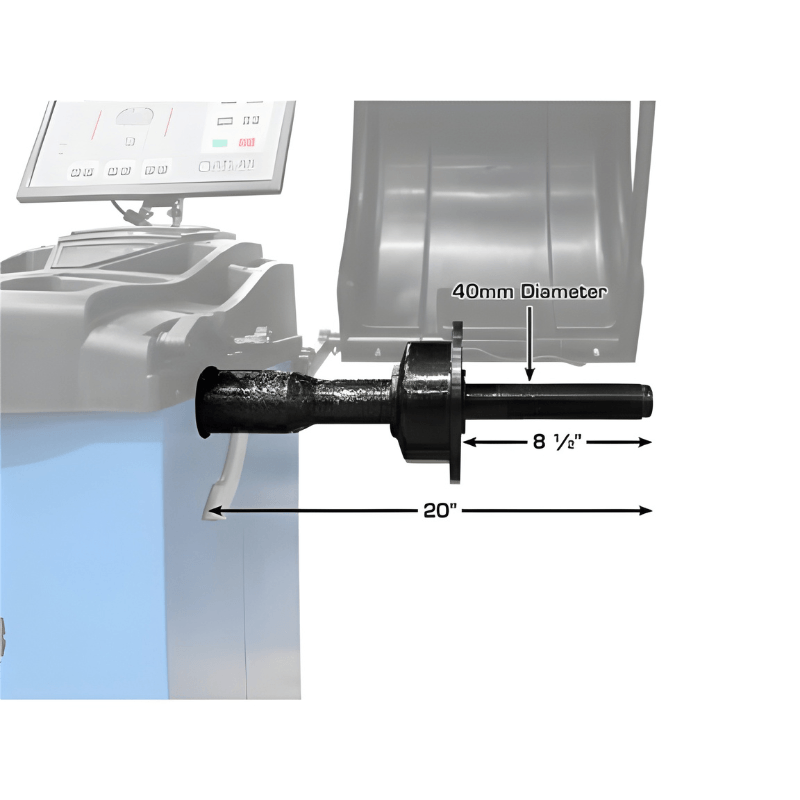

• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: Automatic 2D (Automatic 3D Optional)
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt
• Shipping Weight: 400 lbs.

WB49-2 Wheel Balancer Special Features:

• Computer Controlled Motorized Spin Balancer

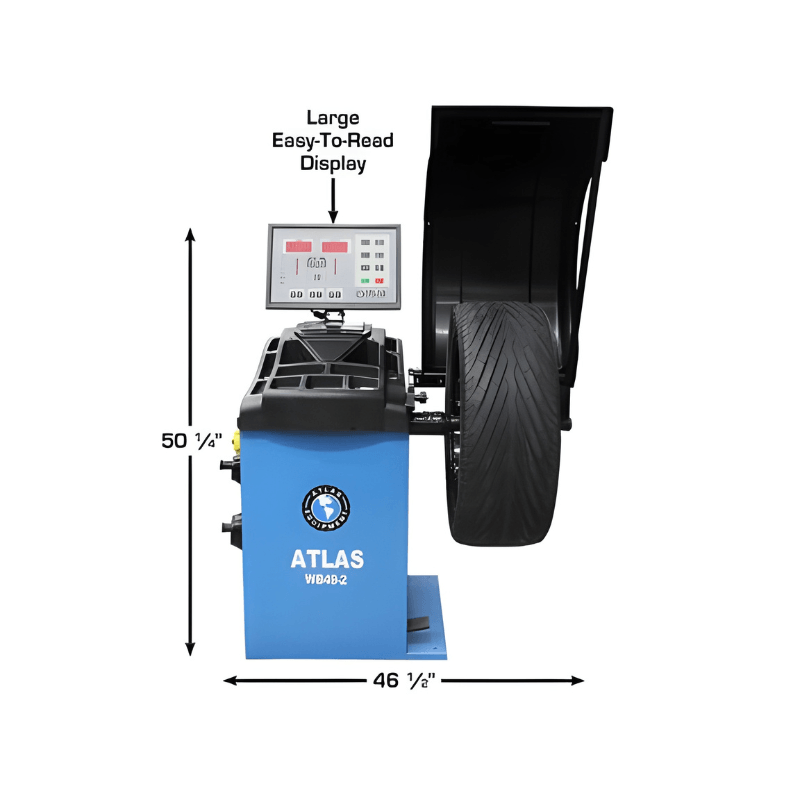

• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic 2D Data Entry
• Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
• Split-Weight Function for hiding weights behind spokes
• Automatic LED Light
• Auto-Positioning

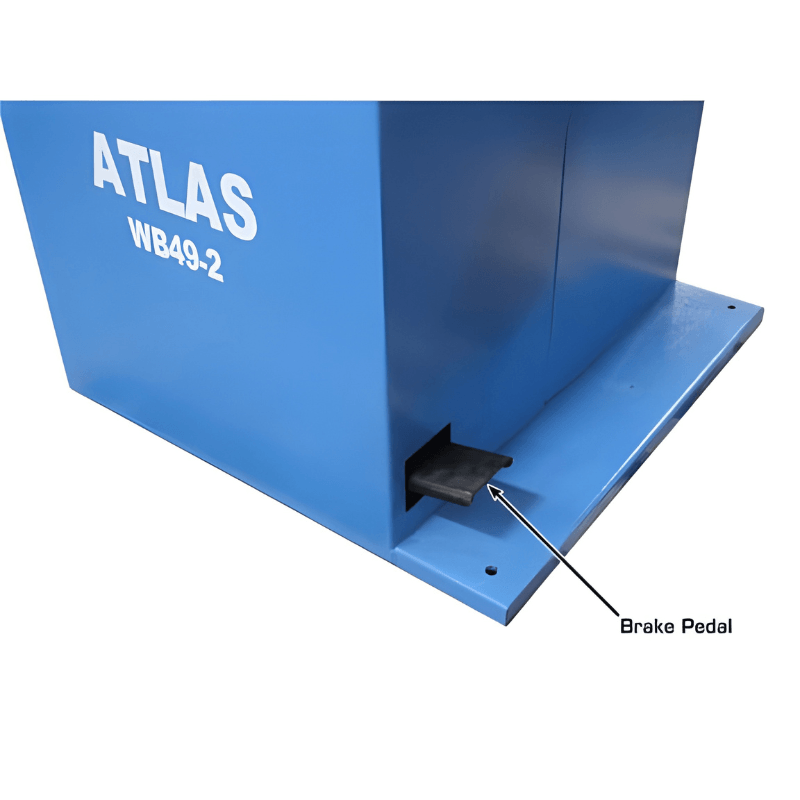

• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

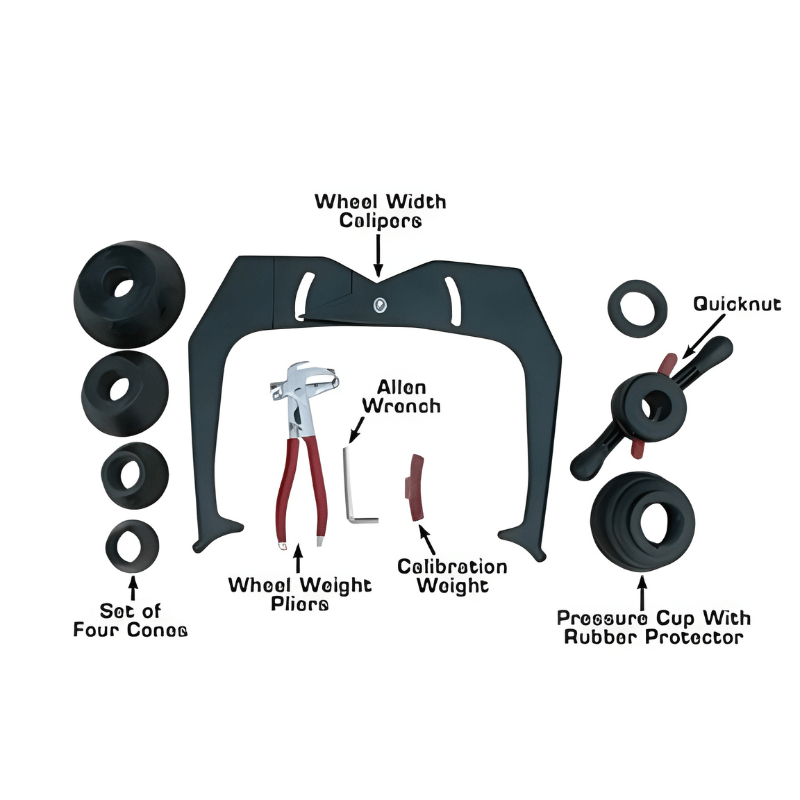

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty

Atlas WB49-2 Documentation:

  Atlas WB49-2 Wheel Balancer Product Manual
