Flo-Dynamics 98020 TSPS735 ATF Inline Exchanger w/ Power Steering

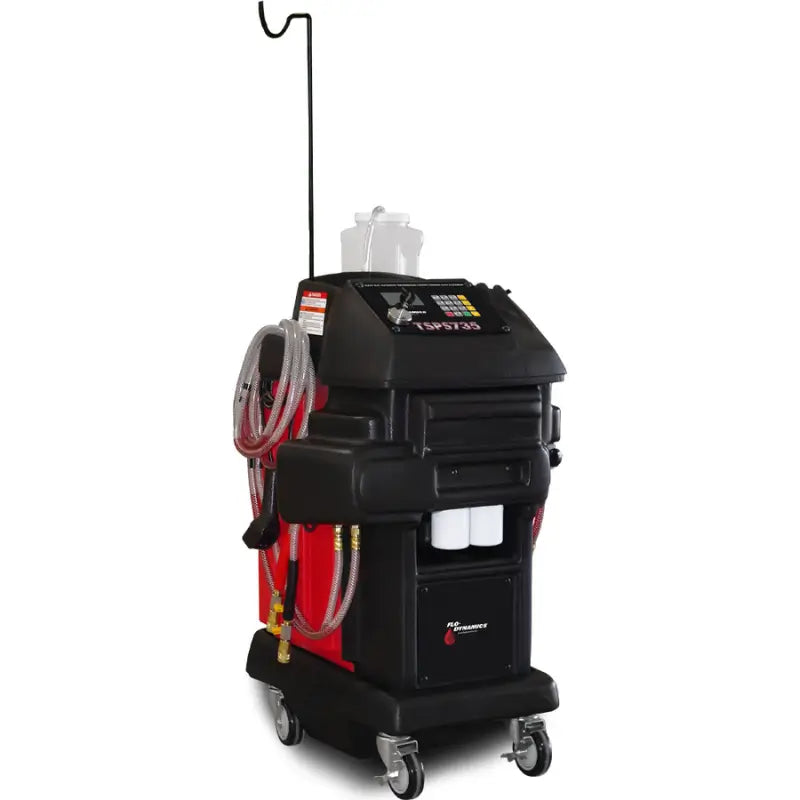

TSPS735 ATF Inline Exchanger w/ Power Steering by Flo-Dynamics

Struggling to keep up with fluid exchanges, especially when a bus or truck rolls into your shop? Enter the Flo-Dynamics TSPS735 ATF Inline Exchanger with Power Steering—the fluid exchange machine that doesn’t know the meaning of “too big.” Equipped with a 2.5-gallon-per-minute pump, this beast can handle everything from small sedans to massive trucks and buses, making sure you stay on top of your game. It even takes care of the power steering system—because why not tackle everything in one go?

With fully automatic operation, an interactive LCD control panel, and a patented flow diverter valve, you’ll feel like you’re running a high-tech command center instead of a shop. Need flexibility? The TSPS735’s adjustable exchange range can handle anywhere from 1 to 35 quarts of fluid, and the electronic measuring technology keeps everything at the right level automatically. We’re talking fast, efficient, and effortless fluid exchanges, all while rolling around on 5-inch locking caster wheels. So, go ahead—press the button and let this workhorse do the heavy lifting.

ATF Inline Exchanger TSPS735 Specifications

• Dimensions: 39”H x 24-3/4”W x 25”D
• Weight: 149 lb.
• New Fluid Tank Capacity: 35 quarts
• Waste Fluid Tank Capacity: 35 quarts
• Power Supply: 12V DC from vehicle battery
• Pump Flow Rate: 2.5 gallons per minute


TSPS735 ATF Inline Exchanger Special Features

• Fully automatic operation with a high-speed 2.5-gallon-per-minute pump
• Integrated power steering fluid exchange capability
• Patented electronic measuring technology for accurate fluid levels
• Adjustable exchange amount from 1 to 35 quarts
• Patented flow diverter valve for easy flow direction changes
• Ergonomic working height for technician ease
• Interactive LCD control panel with user-friendly prompts and indicators
• ADD/REMOVE fluid feature for convenient filter changes
• Fluid totalizer and power loss memory for consistent operation
• Two inline 25-micron filters for enhanced filtration
• Clear service hoses for visual confirmation of fluid flow
• Durable rotocast polyethylene body to prevent vehicle scratches
• Adapter rack drains into the waste tank to keep adapters organized and dry
• 5-inch locking caster wheels for stable, easy movement
• Standard adapter set compatible with a wide variety of vehicle makes and models


Flo-Dynamics TSPS735 Documentation

   TSPS735 ATF Inline Exchanger Operation Manual

   TSPS735 ATF Inline Exchanger Quick Start Guide
