Hein-Werner 10 Ton HW93662 Air/Manual Long Chassis Service Jack

SKU HW93662
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$5,449.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

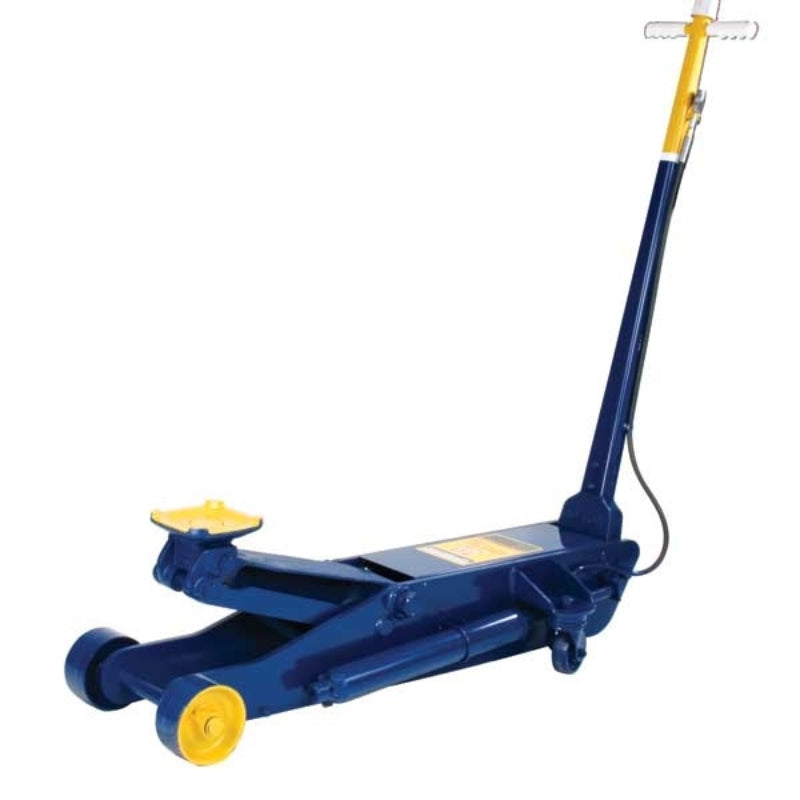

HW93662 Service Jack by Hein-Werner

Tired of struggling with those flimsy jacks that creak and groan under the weight of even a petite Shelby Cobra? Introducing the Hein-Werner HW93662 Service Jack, a beast of a machine that'll make even the most stubborn engine block bow down.

The HW93662 boasts a minimum height of 6 3/4" and a maximum height of 25 1/2", along with a compact design that fits easily into tight spaces. Its long chassis facilitates access to hard-to-reach points, while the handle offers three pumping positions for ergonomic operation. The T-handle with release knob enables precise load positioning, ensuring your car is always level and secure. The large full swivel saddle and ball bearing caster simplify maneuvering, making it easy to position the jack exactly where you need it. The HW93662 also features a cast lift arm for heavy loads and patented "Speed Pak™" technology, reducing handle pumping for efficiency. Whether you're a professional mechanic or a DIY enthusiast, the Hein-Werner HW93662 Service Jack is the perfect tool for your automotive needs.

Service Jack HW93662 Specifications:

  • Capacity: 10 Ton
  • Min Height: 6 3/4"
  • Max Height: 25 1/2"
  • Chassis Length: 53 1/2"
  • Wheel to Wheel Width: 20 1/2"
  • Max Air Pressure: 140 PSI
  • Gross Weight: 435 lbs

HW93662 10 Ton Service Jack Special Features:

  • Lifting trucks, trailers, and buses by the axle, differential, or frame
  • Dual piston action provides speed to contact and power to lift
  • Long chassis for hard to reach points
  • Handle adjusts to three pumping positions
  • T handle with release knob for exact positioning of load
  • Sealed hydraulic unit keeps out grit, grime and moisture
  • Large full swivel saddle and ball bearing caster make positioning easy
  • Cast lift arm for heavy loads
  • Operates manually or with air
  • Patented “Speed Pak™” reduces handle pumping
  • Uses standard shop air 110-175 PSI pressure (140-175 PSI for rated load)
  • Made in U.S.A.

Hein-Werner HW93662 Documentation:

Service Jack HW93662 Product Manual  Hein-Werner HW93662 Product Manual
