Hein-Werner 10 Ton HW93660 Long Chassis Manual Service Jack

SKU HW93660
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,499.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

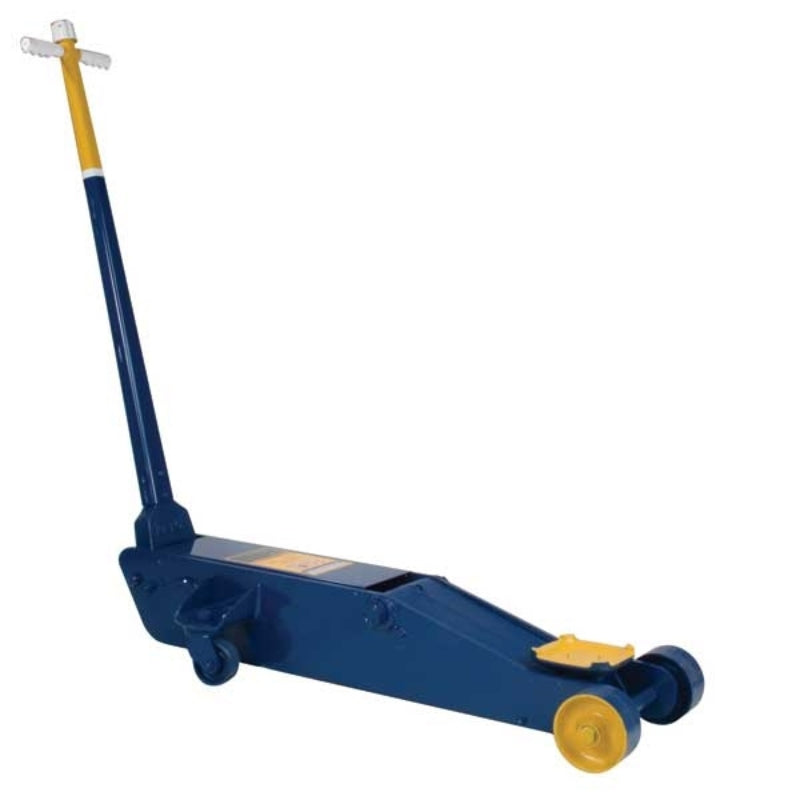

HW93660 Service Jack by Hein-Werner

Sick of wrestling with heavy vehicles and feeling like you need a chiropractor after every job? The Hein-Werner HW93660 Service Jack is here to save your back and streamline your workflow! With a hefty lifting capacity of 10 tons and a versatile height range from 6 3/4 inches to 25 1/2 inches, this jack is built to handle everything from trucks to trailers with ease.

But let’s face it: not all jacks are created equal. The HW93660 excels with its dual-piston action, combining speed and power to lift your vehicles quickly and efficiently. Its long chassis reaches those tricky spots, while the adjustable handle offers three pumping positions for maximum comfort. Plus, the T-handle with a release knob ensures precise load positioning—no more guessing games! The sealed hydraulic unit keeps out dirt and moisture, so you can count on this jack to last through the toughest jobs. And with large full swivel saddles and ball bearing casters, maneuvering this 420 lbs beast is a breeze. Say goodbye to backaches and hello to effortless lifting with the HW93660 Service Jack!



Service Jack HW93660 Specifications:

  • Capacity: 10 Ton
  • Min Height: 6 3/4"
  • Max Height: 25 1/1"
  • Chassis Length: 53 1/2"
  • Wheel to Wheel Width: 20 1/2"
  • Gross Weight: 420 lbs

HW93660 10 Ton Service Jack Special Features:

  • Lifting trucks, trailers, and buses by the axle, differential, or frame
  • Dual piston action provides speed to contact and power to lift
  • Long chassis for hard to reach points
  • Handle adjusts to three pumping positions
  • T handle with release knob for exact positioning of load
  • Sealed hydraulic unit keeps out grit, grime and moisture
  • Large full swivel saddle and ball bearing caster make positioning easy
  • Cast lift arm for heavy loads
  • Made in U.S.A.

Hein-Werner HW93660 Product Manual:

Service Jack HW93660 Product Manual  Hein-Werner HW93660 Product Manual
