Hein-Werner 2-1/2 Ton HW93696U Air Operated End Lift w/ Remote Operation

SKU HW93696U
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$2,499.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

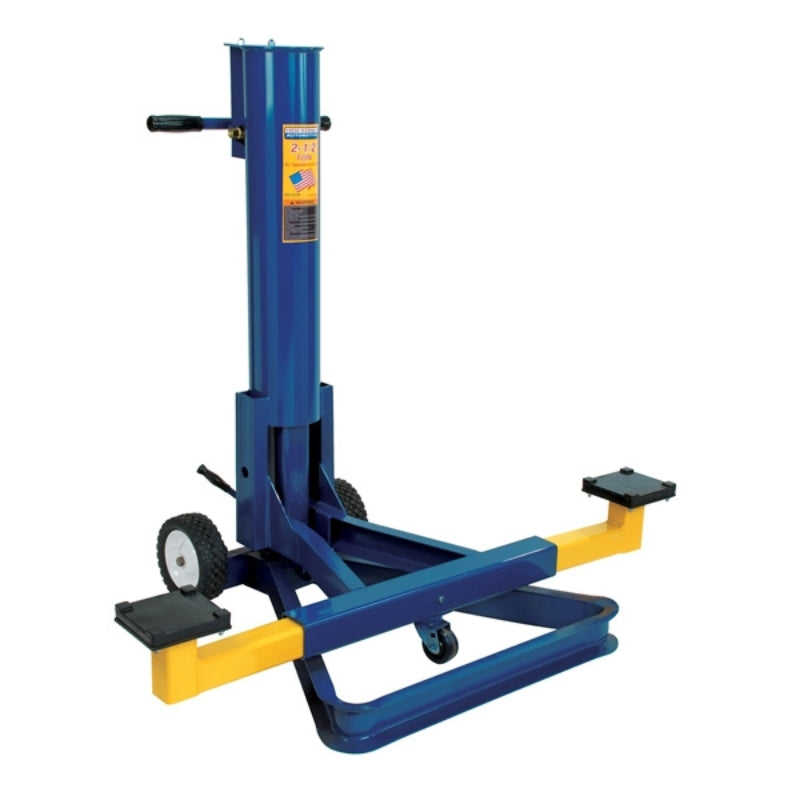

HW93696U End Lift by Hein-Werner

Are you tired of lifts that struggle more than a rusty Pinto on an uphill? Say hello to the HW93696U End Lift, the Hercules of the automotive world that'll make your garage feel like it's been injected with nitrous! This USA-made beast isn't just another pretty face in your tool arsenal - it's a 2.5-ton powerhouse that'll hoist your rides faster than you can say "torque wrench."

Imagine a lift so versatile it could probably pick up a monster truck like an unruly toddler. With a saddle spread from 23-1/4" to 41-1/4", this bad boy adapts faster than a chameleon in a Skittles factory. Its air-operated system, complete with a two-stage valve and a three-way heavy-duty brass valve, gives you more control than a NASCAR driver on a straightaway. And talk about safety - with five automatic lock positions, this lift is more secure than Fort Knox on lockdown. Weighing in at a solid 214 lbs and featuring an adjustable lifting arm, it's like having a personal gym spotter for your projects. From its 8" minimum height to its towering 35-3/8" max, this lift doesn't just raise cars - it elevates workshop to new heights.

End Lift HW93696U Specifications:

  • Min Height: 8"
  • Max Height: 35-3/8"
  • Power Travel: 24-3/4"
  • Saddle Spread: 23-1/4" to 41-1/4"
  • Weight: 214lbs

HW93696U 2-1/2 Ton End Lift Special Features:

  • Lifting the front or rear end of cars, vans, and light trucks by the bumper
  • Air operation with two-stage air valve
  • Hydraulic damper and safety locks
  • Four-point lifting saddle with ribbed rubber pads and slotted bumper fingers
  • Saddle height and width location adjustment for ease of pick up
  • A quick yet effortless lift saves time and reduces mechanic fatique
  • Three-way heavy duty brass air valve provides fine control when lifting and lowering a vehicle
  • Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
  • Front swivel caster wheel and two 8” diameter rear tires provide easy maneuvering
  • Adjustable lifting arm can be extended to desired position
  • Operation Kit - SOLD SEPARATELY
  • Made in the USA

Hein-Werner HW93696U Documentation:

End Lift  HW93696U Product Manual   Hein-Werner HW93696U Product Manual
