Hein-Werner 4 Ton HW93667 Air/Manual Long Chassis Service Jack

SKU HW93667
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$3,599.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

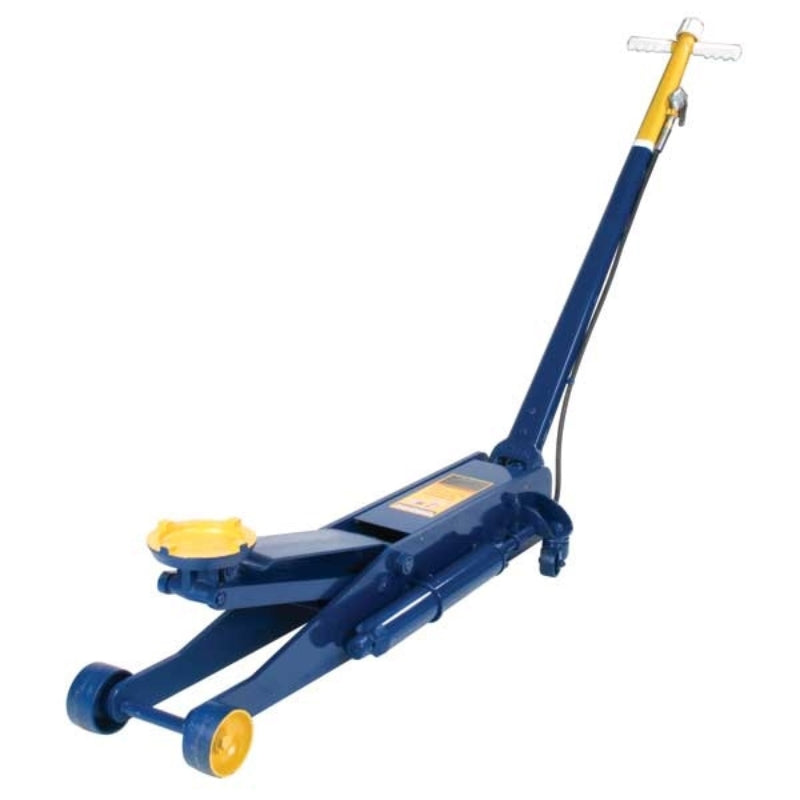

HW93667 Service Jack by Hein-Werner

Silence hangs heavy in your workshop as you eye the behemoth on your lift. The weight of responsibility presses down, each second ticking by with the potential for catastrophe. Your old jack quivers at the challenge, its inadequacy a stark reminder of the thin line between triumph and disaster.

Enter the HW93667, a 4-ton capacity colossus born from American ingenuity and grit. This 233-pound guardian doesn't just lift - it conquers gravity with the precision of a surgeon and the power of a freight train. Its 49-inch chassis slithers under the most stubborn vehicles, while the dual piston system strikes with lightning speed and earth-moving force. The patented "Speed Pak™" technology turns your arms into hydraulic pistons, minimizing pumps and maximizing efficiency. With an air pressure range of 140-175 PSI, it seamlessly transitions between manual and pneumatic operation, adapting to your needs like a chameleon in a paint shop. From its 5" minimum crouch to its 25 3/4" full extension, this jack doesn't just elevate vehicles - it raises the bar for what's possible in your garage.

Service Jack HW93667 Specifications:

  • Capacity: 4 Ton
  • Min Height: 5"
  • Max Height: 25 3/4"
  • Chassis Length: 49"
  • Wheel to Wheel Width: 15"
  • Min Air Pressure: 140 PSI
  • Gross Weight: 233 lbs

HW93667 4 Ton Service Jack Special Features:

  • Dual piston action provides speed to contact and power to lift
  • Handle adjusts to three pumping positions
  • Extra long chassis for hard to reach points
  • T handle with release knob for ease of positioning and load control
  • Sealed hydraulic unit keeps out grit, grime and moisture
  • Cast lift arm for heavy loads
  • Operates manually or with air
  • Patented “Speed Pak™” reduces handle pumping
  • Uses standard shop air 110-175 PSI pressure(140-175 PSI for rated load)
  • Paired perfect with HW93506
  • Made in U.S.A.
