Katool KT-X80 8000lb Mid Rise Scissor Lift - Electric Lock

SKU X80-110-ELE
by Katool
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$2,700.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location
Voltage
Support Bars

Notify me when back in stock

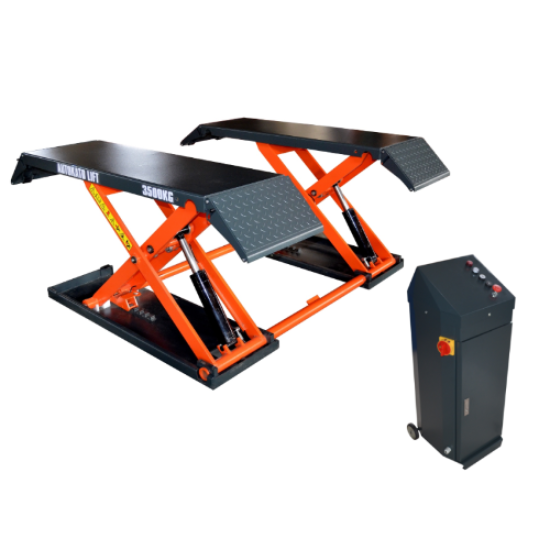

KT-X80 Mid Rise Scissor Lift by Katool

Is your current car maintenance routine a circus act, contorting yourself into uncomfortable positions to reach that leaky oil filter? Say goodbye to the struggle with the Katool KT-X80 Mid-Rise Scissor Lift. This isn't your average lift as it can handle up to a whopping 8,000 lbs, so even the beefiest of vehicles won't be a problem. Need to get up close and personal with a car's undercarriage? No sweat! The KT-X80 adjusts to heights between 4.25 and 41.25 inches, giving you all the access you need.

Think tight spaces are a nightmare? This scissor lift defies the laws of physics (almost) with a surprisingly compact design that squeezes through narrow gaps at a mere 73.25 inches wide. Need it to stay put? No problem, it can be fixed or mounted mobile for ultimate versatility. The KT-X80 has an electric lock, a secure 24V control system, and an electric safety release mechanism – all working in beautiful harmony to keep you safe and sound. What’s not to like?

Scissor Lift KT-X80 Specifications:

  • Lifting Capacity: 8000lbs
  • Max Lifting Height: 41.25"
  • Min Lifting Height: 4.25"
  • Platform Length: 56.25"
  • Platform Width: 19.5"
  • Length Overall: 80"
  • Width Overall: 73.25"
  • Weight: 1213 lbs
  • Oil: AW-46 or AW-32 (colder climates)
  • Optional: Support Bars
    • Overall Length: 73"
    • Pin Distance: 48" to 59" Wide
    • Adapter Height: 6.2" to 8" Tall

KT-X80 From Katool Special Features:

  • Lock Style: Electric
  • Certification: CE Approved and Certified. (115% dynamic loading capacity standard and was 150% static loading capacity tested)
  • Mount design: Mobile or Fixed
  • Starting-up system design
  • Safety release: Electric
  • 24V safe control system
  • Limit switch prevents over lifting.
  • Composite rubber lifting blocks included
  • Comes with self-lubricated bushing and bearing
  • Drive-up ramps lock in place for longer vehicles
  • Top-level hydraulic system and aluminum motor with the fan prevents overheating. on top to avoid overheating
  • Power Options: 110V or 220v
  • Includes: Caster Kit for Mobility
  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-X80 Documentation:

Scissor Lift KT-X80 Product Manual   Katool KT-X80 Scissor Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $199*

Warehouse Pickup locations (free shipping) Contact Us if interested.

  • City of Industry, CA 91789
  • Brookshire, TX 77423
  • Houston, TX 77064
  • Pooler, GA 31322
  • Jersey City, NJ 07305
  • Bolingbrook, IL 60440

Pallet Dimensions:

  • Lift: 78" x 64" x 9" - 1213lbs
  • Control Unit: 17" x 15" x 43" - 132lbs
Scissor Lift Kit Diagram
