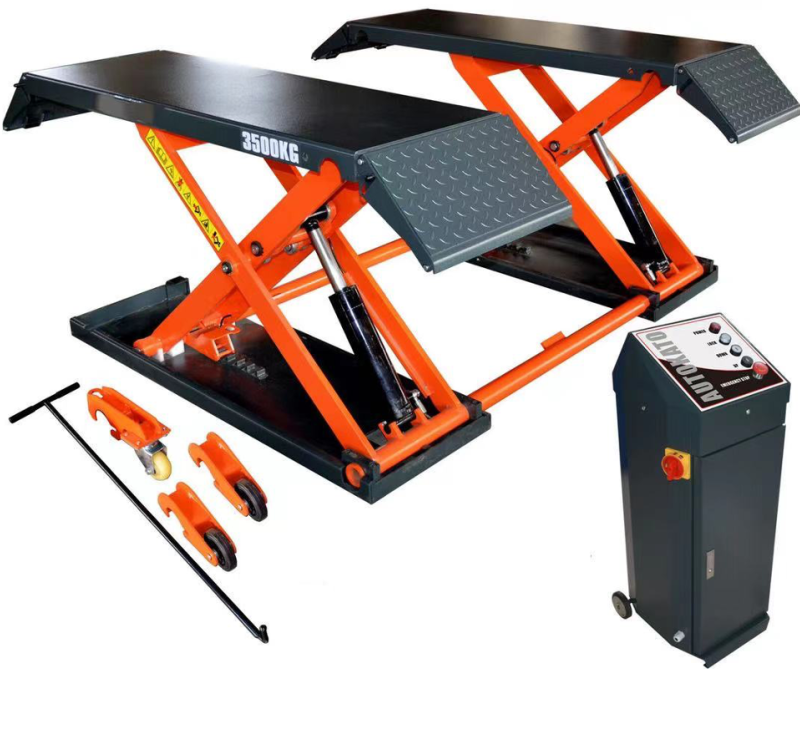

KT-X80 Mid-Rise Scissor Lift - Pneumatic Lock by Katool - Side View Pneumatic Lock

Katool KT-X80 8,000lb Mid-Rise Scissor Lift - Pneumatic Lock

SKU X80-110-AIR
by Katool
  • ✓ No Sales Tax - Except CA, IL, & MI
  • ✓ Ships in 3-5 Business Days
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited
$2,600.00
Free Warehouse Pickup Locations*
*Subject to Availability
Address Type
Delivery Options
*We will find nearest location
Size
Support Bars

Notify me when back in stock

KT-X80 Mid-Rise Scissor Lift by Katool

The versatile KT-X80 Scissor Lift by Katool boasts a compact design that makes moving around small workspaces much easier. With a total width of 73.25 inches, you should never let its size fool you. The KT-X80 packs a punch with an 8,000-lb lifting capacity, effortlessly handling even the heaviest equipment. More than its capacity for lifting up to a height of 41.25 inches, this CE-certified powerhouse prioritizes your safety with a secure pneumatic lock and a 24V control system for precise and safe operation.

The mobile design allows for easy relocation within your workspace, while the integrated drive-up ramps ensure effortless loading of extended vehicles. The top-level hydraulic system boasts an aluminum motor with an innovative cooling fan, guaranteeing smooth operation for years and years. Built with longevity in mind, the KT-X80 features self-lubricating parts and durable composite rubber lifting blocks. For tight spaces and mobile workshops, the Katool KT-X80 is the answer.

Scissor Lift KT-X80 Specifications:
  • Lifting Capacity: 8000lbs
  • Max Lifting Height: 41.25"
  • Min Lifting Height: 4.25"
  • Platform Length: 80"
  • Platform Width: 19.5"
  • Width Overall: 73.25"
  • Weight: 1213 lbs
  • Oil: AW-46 or AW-32 (colder climates)
  • Optional: Support Bars
    • Overall Length: 73"
    • Pin Distance: 48" to 59" Wide
    • Adapter Height: 6.2" to 8" Tall

KT-X80 From Katool Special Features:

  • Lock Style: Pneumatic
  • Special Note:  The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.
  • Certification: CE Approved and Certified. (115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Mount design: Mobile or Fixed
  • Starting-up system design
  • Safety release: Pneumatic
  • 24V safe control system
  • Limit switch prevents over lifting.
  • Composite rubber lifting blocks included
  • Comes with self-lubricated bushing and bearing
  • Drive-up ramps lock in place for longer vehicles
  • Top-level hydraulic system and aluminum motor with the fan prevents overheating. on top to avoid overheating
  • Power Option: Pneumatic
  • Includes: Caster Kit for Mobility
  • Katool Warranty:
    • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
    • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-X80 Documentation:

 Scissor Lift KT-X80 Product Manual   Katool KT-X80 Scissor Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $199*

Warehouse Pickup locations (free shipping) - Contact Us if interested.

                        • City of Industry, CA 91789
                        • Brookshire, TX 77423
                        • Houston, TX 77064
                        • Pooler, GA 31322
                        • Jersey City, NJ 07305
                        • Bolingbrook, IL 60440

                        Pallet Dimensions:

                        • Lift: 78" x 64" x 9" - 1213lbs
                        • Control Unit: 17" x 15" x 43" - 132lbs
                        Lift Kit Diagram
