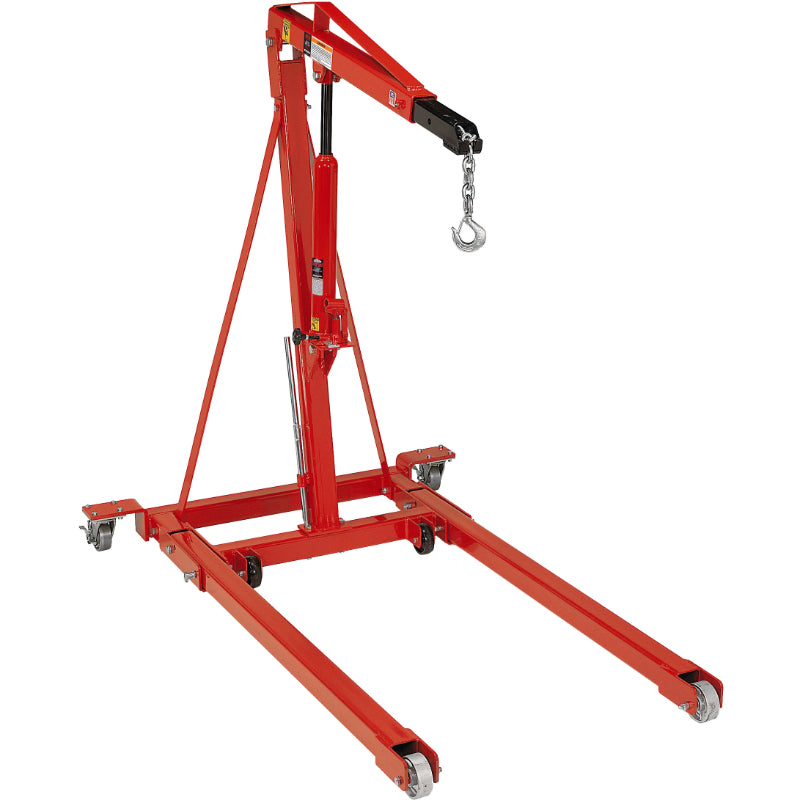

78106A Folding Engine Hoist by Norco
Introducing our heavy-duty hydraulic crane, engineered for versatile lifting tasks with unparalleled efficiency and safety features. Equipped with a four-position telescopic boom and a 3/8" proof chain and hook, this crane ensures secure lifting of heavy loads up to 3 tons.
The crane's hydraulic power unit boasts a 3-ton capacity, providing faster raising action and a large diameter ram capable of withstanding angle loads. With a low profile design measuring just 4-3/4" from the top of legs to the ground, this crane can easily position under low ground clearance vehicles, expanding its utility in various applications.
Featuring quick foldable legs and boom, this crane offers convenient space-saving solutions, with dimensions of 22-1/2" x 51-3/4", preparing the crane for transport or storage within seconds. The crane's 4" diameter front wheels and locking rear caster wheels ensure positive steering and easy maneuvering, while the locking caster wheels secure the crane from moving when in use.
Engine Hoist 78106A Specification:
- Min. Boom Height: 0"
- Max. Boom Height: 88"
- Length: 74.5"
- Width: 51.75"
- Height: 70.75"
- Shipping Weight: 320 lbs.
78106A 2,500lb Engine Hoist Special Features:
- Four position telescopic boom with 3/8" proof chain and hook.
- 3 ton capacity hydraulic power unit provides faster raising action and a large diameter ram to withstand angle loads.
- Low profile design (4-3/4" from top of legs to ground) allows positioning under low ground clearance vehicles.

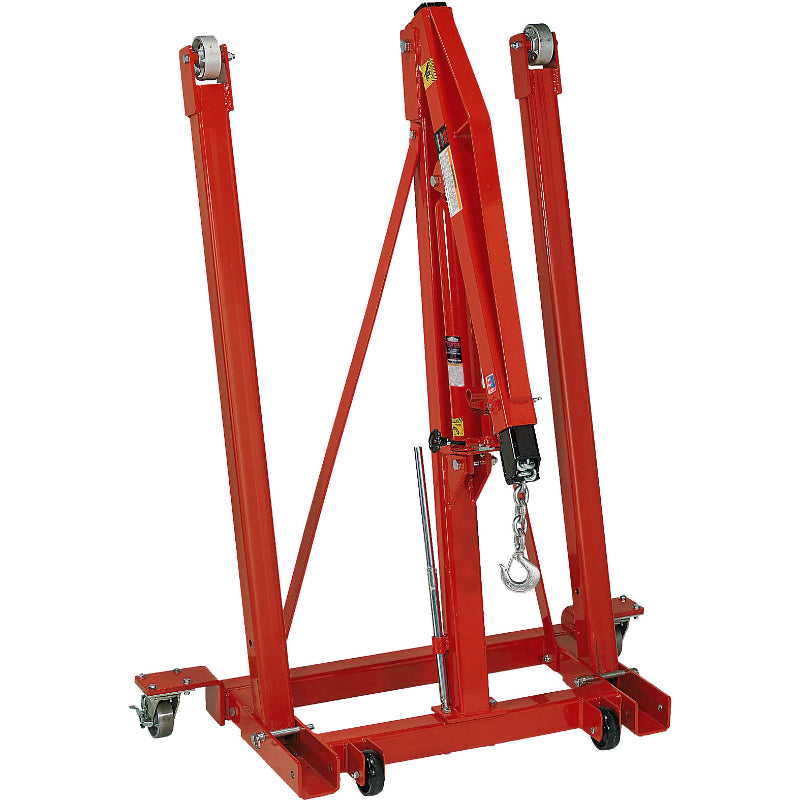

- Quick foldable legs and boom save shop space (22-1/2" x 51-3/4") and prepare crane for transport or storage within seconds.
- 4"diameter front wheels and locking rear caster wheels provide positive steering and easy maneuvering. Locking caster wheels secure crane from moving when in use.
