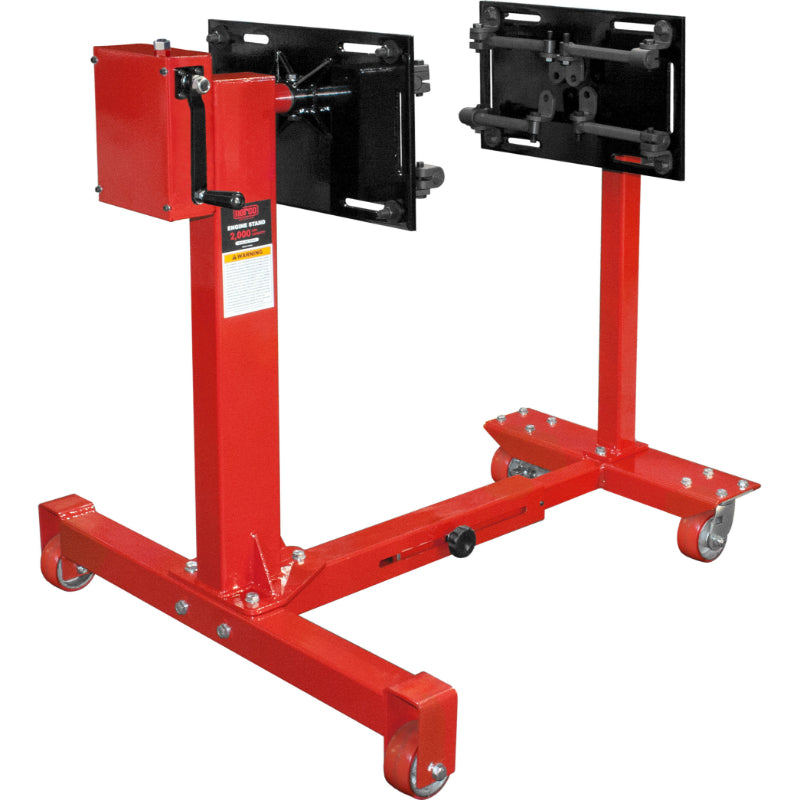

78230 Engine Stand - 75: Gear Driven by Norco - Side View

Norco 78230 1 Ton Engine Stand - 75: Gear Driven

SKU 78230
by Norco
  • ✓ No Sales Tax - Except CA, IL, & MI
  • ✓ Ships in 3-5 Business Days
  • ✓ Free Warehouse Pickup Options
  • ✓ Order Online Today!
$1,467.00
Free Warehouse Pickup Locations*
*Subject to Availability
Address Type
Delivery Options

Notify me when back in stock

78230 Engine Stand by Norco

The engine stand features a gear-driven 75:1 ratio gearbox that can be easily activated by hand crank. This allows for effortless rotation of the head, providing the perfect work position. With two rigid wheels in the back and two swivel caster wheels in the front, the stand offers maximum stability and support. An additional locking caster wheel secures the stand in place, while polyurethane wheels protect expensive tile and epoxy floors. The stand comes with two universal mounting plates, a rotating shaft, eight fully adjustable arms, and all necessary mounting hardware. The rotating shaft can be adjusted inside the post receiver for precise placement of engine ends or sides, and the mounting plates can be set up to 36-1/4" apart. The stand measures 42" in height, with a front width of 21.25" and a rear width of 40" and can be adjusted in length from 38.25" to 53.25". Its shipping weight is 289 lbs.

Engine Stand 78230 Specifications:

  • Height: 42"
  • Width:
    • Front: 21.25"
    • Rear: 40"
  • Length:
    • From: 38.25"
    • To: 53.25"
  • Shipping Weight: 289 lbs

78230 1 Ton Engine Stand Special Features:

  • 75:1 ratio gearbox activated by hand crank easily turns the 360-degree rotating head to the desired work position.
  • Two rigid wheels in back and two swivel caster wheels in front provide maximum stability and support. One locking caster wheel secures the stand in the desired work location.
  • Polyurethane wheels provide protection for expensive tile and epoxy floors.
  • Includes two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware.
  • Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines. Mounting plates can be adjusted 36-1/4" apart.

This Item has a FLAT RATE SHIPPING FEE: $199*

*Based on Nationwide Averages - Contact Us for a warehouse pickup.

Warehouse Pickup locations (FREE Shipping):

  • Dallas, TX (75238)
  • San Diego, CA (92000)
  • Elkhart, IN (46514)

A majority of the items we carry are FREE Shipping.   However, there are some products that have a standard Flat Rate Fee.  Flat Rate Shipping is based on Nationwide averages.  Contact us to see if we're able to quote a better rate.  FREE shipping will be noted in the descriptions of each of the products that qualify.
