Ranger R745-110V + DST2420-110-220V  + Tape Wheel Weights Combo

SKU 5140428
$6,095.00
  • Contact us for the BEST Price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Price Includes Free Shipping!
  • Discounted Warehouse Pickup Options!

Delivery Options

Notify me when back in stock

R745-110V + DST30P-110-220V and Tape Wheel Weights Combo by Ranger

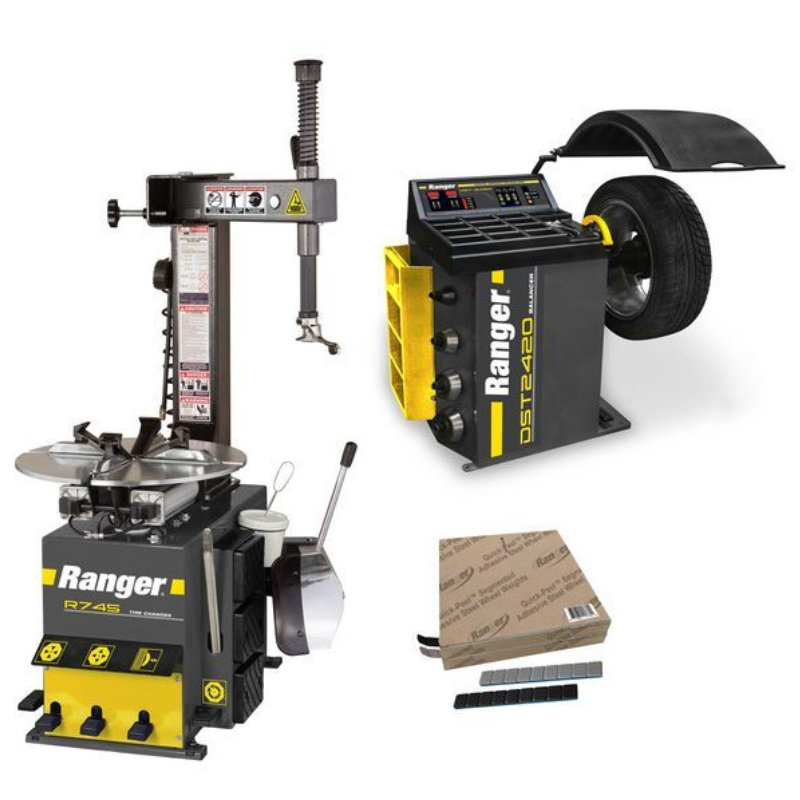

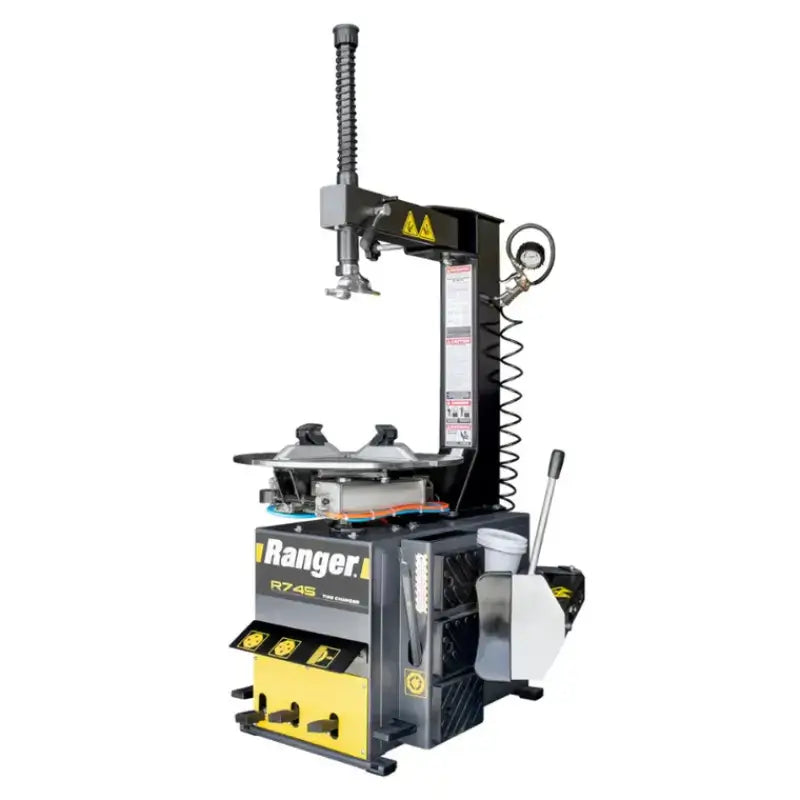

For tire servicing that’s as smooth as your favorite pint, the Ranger R745 Tire Changer and DST2420 Wheel Balancer Combo deliver everything you need, with just a dash of British precision. The R745 is the dependable workhorse your garage didn’t know it was missing. With its swing-arm design and pneumatic cylinders, it loads tires faster than you can say “blimey,” while its steel clamps ensure everything stays exactly where it should—no bending, no fuss. The high-torque electric turntable, maintenance-free gearbox, and pneumatic bead breaker make tire mounting and demounting feel like a stroll in the park (if the park was full of efficient machines). And if you fancy a bit of variety, the optional motorcycle turntable clamp has got you covered.

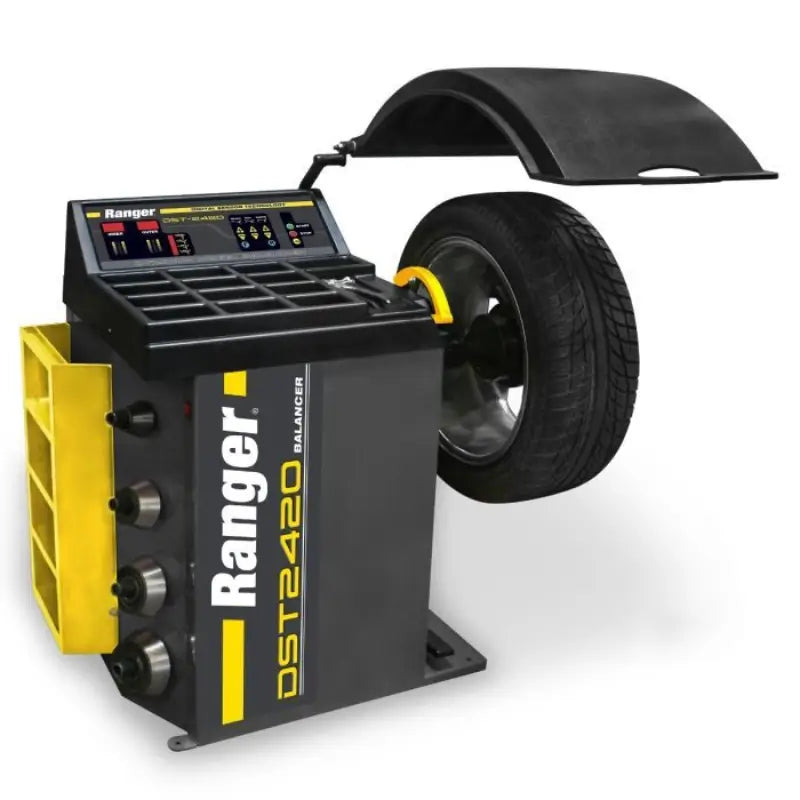

Now, for wheel balancing, the DST2420 Wheel Balancer might as well be the Sherlock Holmes of the tire world—spotting errors with an accuracy of ±1 gram. With a quick cycle time of just 6–9 seconds and a user-friendly interface, it balances wheels faster than a double shot of espresso. Whether it’s dynamic, static, or 3-alloy configurations, this balancer’s versatility ensures you’re prepared for anything that rolls your way. Paired with Quick-Peel™ adhesive steel wheel weights, which are as eco-friendly as they are secure, this combo promises flawless results. So, for tire service that’s a cut above, look no further than this well-oiled (and very British) trio.

Combo Ranger R745-110V + DST2420-110-220V and Tape Wheel Weights Specifications

R745

  • Drive System Type: Electric/Air
  • Motor: 110 or 220 VAC, 50/60 Hz, 1 Phase
  • Air Requirement: 140-165 psi (9.6-11.4 BAR)
  • Wheel Clamping Method: 4 Clamps – Internal/External
  • Table Clamping System: Dual Pneumatic Cylinders
  • Bead Breaking System: Pneumatic Blade
  • Tool Holder: Manual Lock
  • Tower Design: Rigid Fixed/Swing Arm
  • Inside Clamping Range: 12"-21" (305-533 mm)
  • Outside Clamping Range: 10"-18" (254-457 mm)
  • Max Rim Width: 11" (279 mm)
  • Max Tire Diameter: 39" (914 mm)
  • Shipping Weight: 466 lbs. (211 kg)
  • Shipping Dimensions: 40"x50"x65" (1,016x1,270x1,651 mm)
  • Recommended Footprint: 50"x50"x75" (1,270x1,270x1,905 mm)

DST2420

  • Motor Power: 1.5 HP, 110V/220V, 50/60 Hz, 1Ph
  • Cycle Time: 6-9 seconds (average)
  • Balancing Modes: Dynamic, Static, 3-Alloy
  • Max Tire Diameter: 47 inches (1,194 mm)
  • Max Tire Weight: 145 lbs (65 kg)
  • Wheel Diameter Capacity: 10-24 inches (254 mm - 610 mm)
  • Wheel Width Capacity: 1.5-18 inches (38 mm - 457 mm)
  • Balancing Speed: 180 RPM
  • Accuracy: ±1 gram (0.035 oz)
  • Resolution: 0.01 oz, 1.4°
  • Shipping Weight: 356 lbs (161 kg)
  • Dimensions: 38" x 30" x 46" (965 mm x 762 mm x 1,168 mm)

Ranger R745-110V + DST2420-110-220V and Tape Wheel Weights Combo Special Features

R745

    • inflation gauge with integrated air dump valve: standard / pistol type
    • Water filter
    • Oiler / lubricator
    • Air regulator
    • Breaker bar
    • Large soap / lubricator bucket
    • Brush
    • Traveling drop-center hold down device
    • Inflation restraint device
    • Tool tray / bin storage

    DST2420

    • Digital Sensor Technology: High-precision sensors for accurate weight placement.
    • Multi-Directional Load Sensors: Detects longitudinal, transversal, and shear forces for detailed unbalance analysis.
    • Quick-Mount System: Multi-size center cones and Quick-Nut adapter ensure secure and fast wheel mounting.
    • User-Friendly Interface: Touchpad control panel with LED indicators simplifies balancing procedures.
    • Automatic Weight Optimization: Minimizes weight usage for cost savings.
    • Versatile Balancing Modes: Supports OEM configurations, custom wheels, and performance tires.
    • Rapid Cycle Time: Completes balancing in just 6-9 seconds for maximum productivity.
    • Durable Construction: Hardened steel 40 mm shaft and robust components ensure long-term reliability.
    • Open-Side Hood Design: Accommodates larger and uniquely shaped tires.
    • Built-in Storage: Convenient top weight tray and side pegs for tools and accessories.
    • Free Starter Kit: Includes adhesive steel tape weights and clip-on steel weights to get you started.

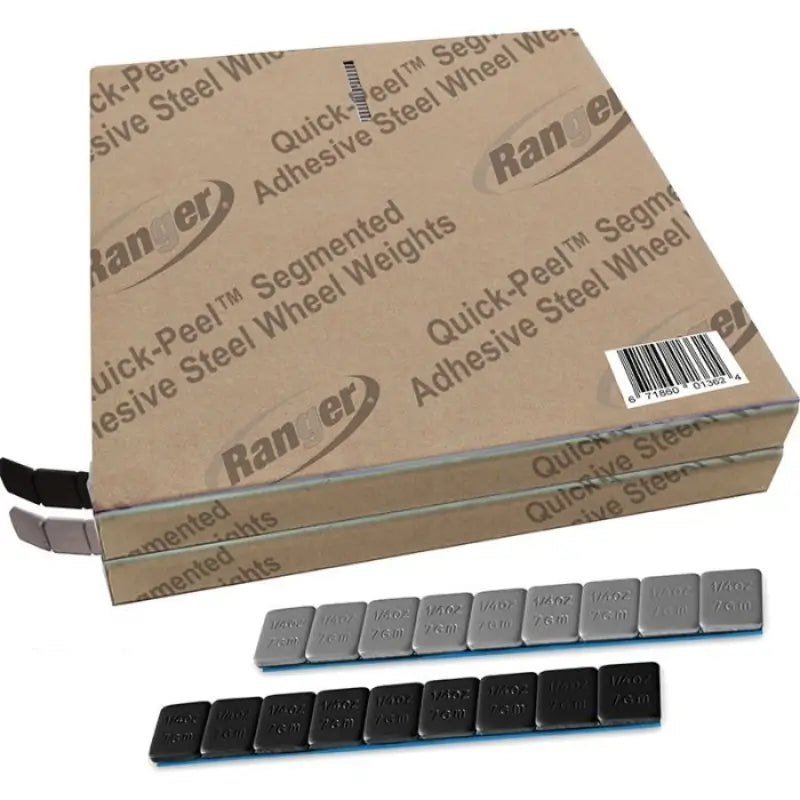

    Tape Wheel Weights

    • Silver or black powder-coated surface helps eliminate corrosion and staining of expensive wheels
    • Strong adhesive backing for dependable attachment
    • Quick-Peel™ liner for trouble-free use
    • Lead-free, steel construction has less impact on the environment
    • Meets national environmental laws and health and safety codes
    • Designed to have same fit, function & look as OEM weights
    • Narrow profile contours easier to OEM wheel shapes
    • Slender profile and out-of-sight mounting capability enhance the looks of any wheel
    • Low-profile design for increased clearance of close-proximity calipers or brake components
    • Self-dispensing carton features Free-Glide™ center hub and nylon feeder for smooth, jam-free delivery
    • Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space

    BendPak Ranger R745-110V + DST2420-110-220V and Tape Wheel Weights Documentation

    BendPak Ranger R745 Installation and Operations Manual   BendPak Ranger R745 Installation and Operations Manual
    BendPak Ranger R745 Product Brochure   BendPak Ranger R745 Product Brochure
    Ranger DST2420 Installation and Operations Manual   Ranger DST2420 Wheel Balancer Installation and Operations Manual
    Ranger DST2420 Product Brochure   Ranger DST2420 Wheel Balancer Product Brochure
    Ranger Wheel Weights Product Brochure   Ranger Wheel Weights Product Brochure

    Ranger R745-110V + DST30P-110-220V and Tape Wheel Weights Combo Optional Item (Sold Separately)
