R76ATR + DST30P Wheels and Tires Package Deal Combo by Ranger Combo View

Ranger R76ATR + DST30P Wheels and Tires Package Deal Combo

SKU 5140124
by Ranger Tire Machines
$10,695.00
  • ✓ Contact us for the BEST Price!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • ✓ Price Includes Free Shipping!
  • ✓ Discounted Warehouse Pickup Options!

Delivery Options

Notify me when back in stock

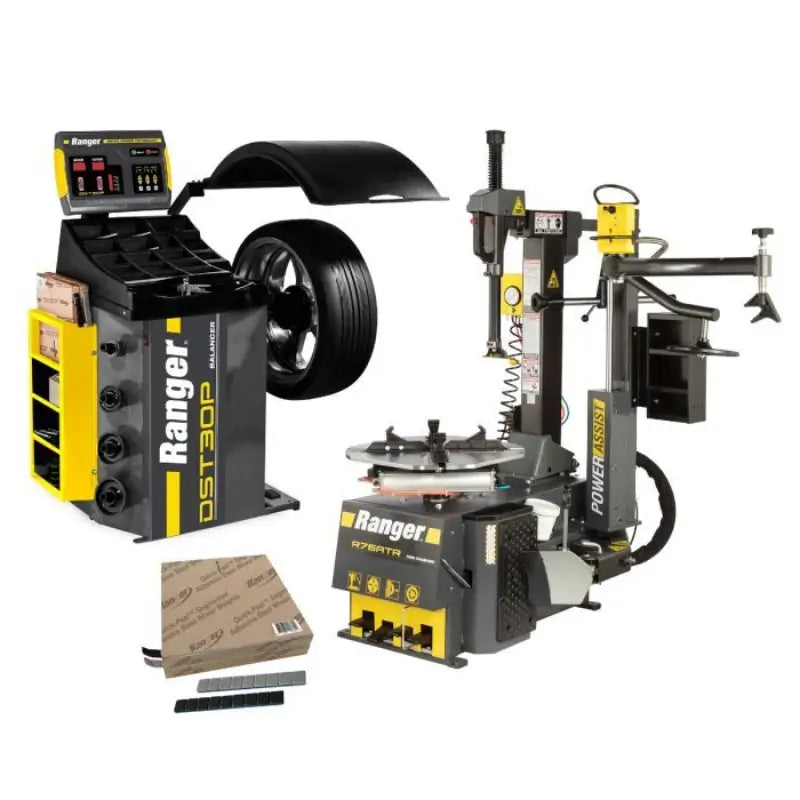

R76ATR + DST30P Wheels and Tires Package Deal Combo by Ranger

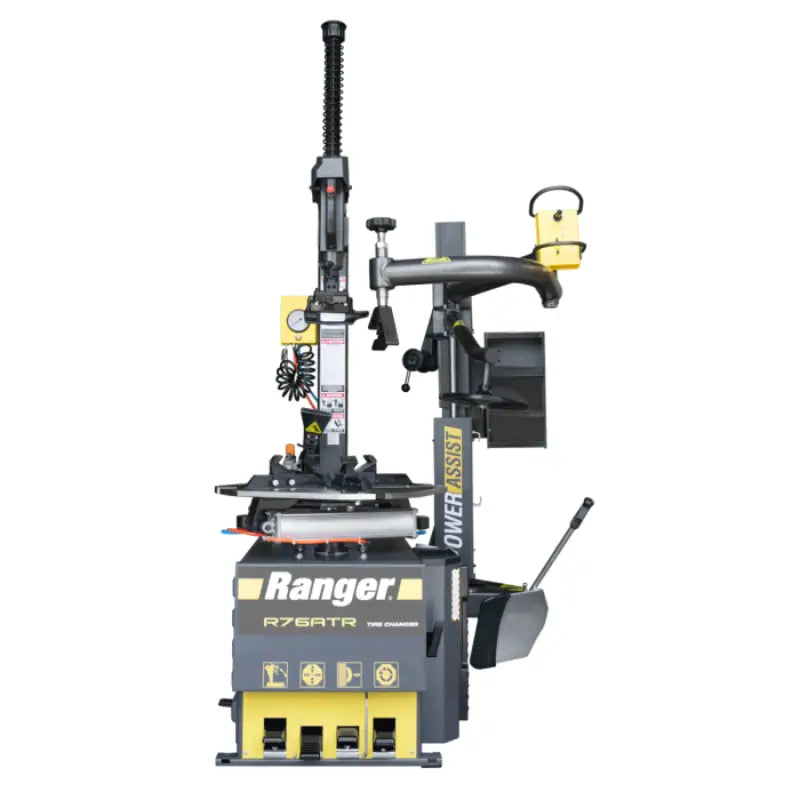

Your tire shop just met its new best friends: the Ranger R76ATR Tire Changer and DST30P Wheel Balancer Combo. The R76ATR is like the muscle-bound and caped hero you’ve been waiting for, with a tilt-back tower and TurboBlast™ bead seating system that make stiff sidewalls look downright silly. Whether it’s an 8-inch scooter wheel or 30-inch SUV wheels, this machine handles it with ease. And let’s talk about that 3 HP motor—because power like that doesn’t just change tires; it annihilates inefficiency.

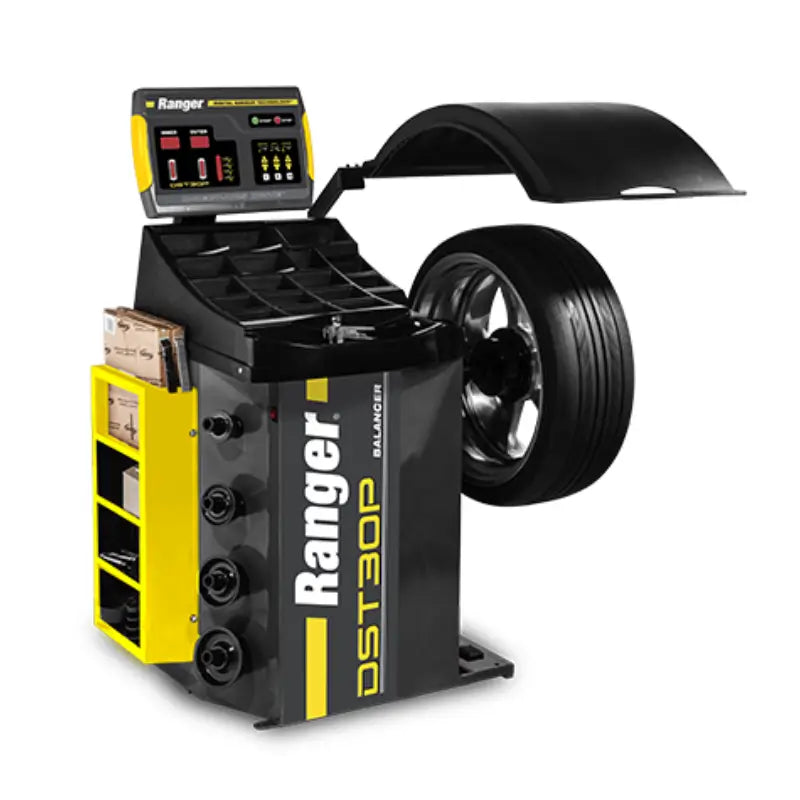

Meanwhile, the DST30P balances wheels like it's putting on a show. Six-second cycle time? Check. Precision accurate to a single gram? Double check. It’s so smart it automatically enters 3D data while you pretend you’ve got it all under control. Handling tires up to 47 inches? No sweat. With its automatic brake and quick-release hub nut, it’s the kind of machine that makes you look like a tire-whispering genius. Toss in a box of 700 Quick-Peel™ weights, and suddenly, you’re not just running a tire shop—you’re running THE tire shop.

Combo Ranger R76ATR + DST30P Specifications

R76ATR Specifications

  • Motor: 3 HP (220 VAC 50-60 Hz)
  • Drive System Type: Electric / Hydraulic
  • Air Requirement: 110-175 PSI (8-12 BAR)
  • Wheel Clamping Method: 4 Clamps (Internal / External)
  • Clamping Range (Internal): 8" - 26" (203 mm - 660 mm)
  • Clamping Range (External): 10" - 30" (254 mm - 762 mm)
  • Maximum Rim Width: 15" (381 mm)
  • Maximum Tire Diameter: 43" (1,092 mm)
  • Bead Breaking System: Adjustable Pneumatic Blade
  • Tower Design: Tilt-Back
  • Power Assist Tower: Single / Right-Side
  • Shipping Weight: 920 lbs. (417 kg)
  • Shipping Dimensions: 50" x 50" x 68" (1,270 mm x 1,270 mm x 1,727 mm)
  • Recommended Footprint: 60" x 50" x 78" (1,524 mm x 1,270 mm x 1,981 mm)

DST30P Specifications

  • Motor: 1.5 HP, 110/220V, 50/60 Hz, 1Ph
  • Working Temperature: -5°C / 27°F - 50°C / 82°F
  • Cycle Time: 7 seconds (average)
  • Balancing Modes: Dynamic / Static / 3-Alloy
  • Drive System: Belt Drive
  • Wheel Braking: Automatic / Electronic
  • Cones Included: 5 standard
  • Max. Tire Diameter: 47” (1,200 mm)
  • Max. Tire Weight: 150 lbs. (68 kg)
  • Wheel Diameter Capacity: 12” - 30” (304.8 mm - 762 mm)
  • Wheel Width Capacity: 4” - 15” (101.6 mm - 381 mm)
  • Balancing Increments: 0.25 oz (7 grams)
  • Balancing Speed: 260/320 RPM
  • Accuracy: ±1 gram (0.035 oz)
  • Resolution: 0.01 ounce, 1.4°
  • Shipping Weight: 370 lbs. (168 kg)
  • Shipping Dimensions: 44” x 30” x 46” (1,117 mm x 762 mm x 1,168 mm)

Ranger R76ATR + DST30P Combo Special Features

    R76ATR

      • 4 Clamps (Internal / External)
      • Dual Pneumatic Cylinders
      • Adjustable Pneumatic Blade
      • Tilt-Back Tower Design
      • Vertical Shaft / Tool Head Positioning
      • Inflation System
      • Inflation Gauge & Integrated Air Dump Valve
      • Inflation Pressure Regulator/Limiter
      • Water Filter
      • Oiler / Lubricator
      • Air Regulator
      • Bead Tool/Tire Iron
      • Alloy-Steel Mount-Demount Head
      • Nylon Mount-Demount Head
      • Large Soap Bucket
      • Soap Brush
      • TurboBlast™ Bead Seating System
      • Tool Tray / Bin Storage
      • Motorcycle Turntable Clamps (optional)

      DST30P

      • Dynamic, Static, and Performance Alloy settings
      • A multi-user save function holds presets to increase productivity
      • An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
      • A simultaneous retrieval of static, dynamic and ALU1/ALU2 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
      • Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
      • Low RPM balancing speed and rapid six-second cycle time
      • Automatic braking
      • Gram/ounce selection and millimeter/inch selection
      • Automatic round-off with top-dead-center weight position indicator
      • Manual or automatic start when hood is lowered
      • Self-calibration function
      • High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
      • Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
      • Precision-machined, hardened-steel 40 mm shaft
      • Quick-release hub nut for dramatically reduced set-up times
      • Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
      • Side cone storage pegs keeps accessories readily available
      • New “open-side” hood design allows for a broader coverage of tire shapes and sizes

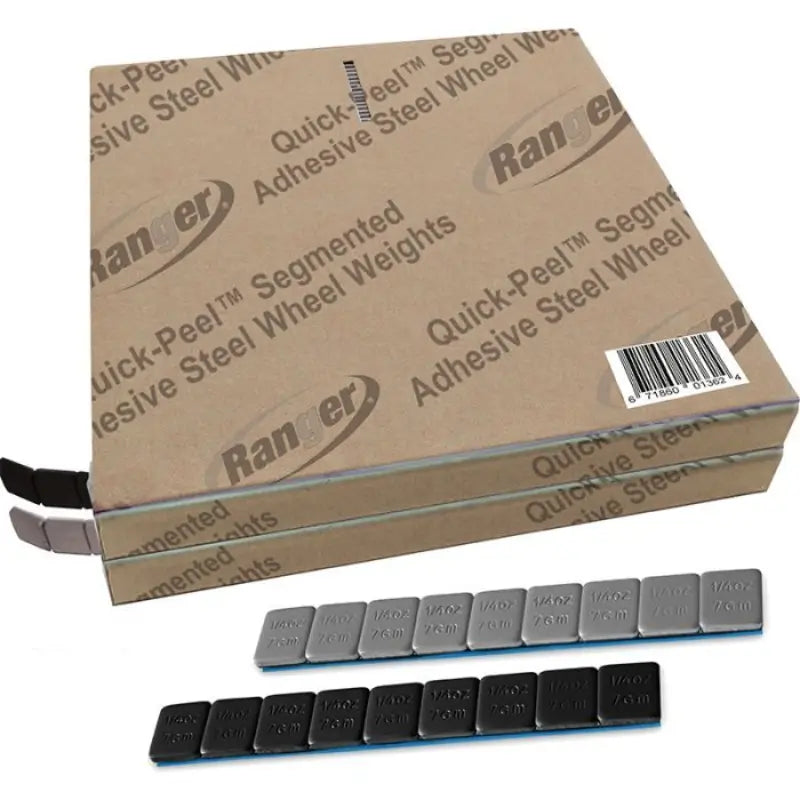

      Tape Wheel Weights

      • Silver or black powder-coated surface helps eliminate corrosion and staining of expensive wheels
      • Strong adhesive backing for dependable attachment
      • Quick-Peel™ liner for trouble-free use
      • Lead-free, steel construction has less impact on the environment
      • Meets national environmental laws and health and safety codes
      • Designed to have same fit, function & look as OEM weights
      • Narrow profile contours easier to OEM wheel shapes
      • Slender profile and out-of-sight mounting capability enhance the looks of any wheel
      • Low-profile design for increased clearance of close-proximity calipers or brake components
      • Self-dispensing carton features Free-Glide™ center hub and nylon feeder for smooth, jam-free delivery
      • Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space
      • Warranty
        • 2 Years on equipment structure
        • 2 Year on operating components
        • 1 Year Labor Warranty

      Ranger R76ATR + DST30P Tire Combo Documentation


      Ranger R76ATR Installation and Operations Manual   Ranger R76ATR Installation and Operations Manual

      Ranger R76ATR Product Brochure   Ranger R76ATR Product Brochure

      Ranger DST30P Product Brochure   Ranger DST30P Wheel Balancer Product Brochure

      Ranger Wheel Weights Product Brochure   Ranger Wheel Weights Product Brochure
