Ranger R980XR Tire Changer - Swing Arm Design

SKU 5140146
$4,695.00
  • Contact us for the BEST Price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Price Includes Free Shipping!
  • Discounted Warehouse Pickup Options!

Delivery Options

Notify me when back in stock

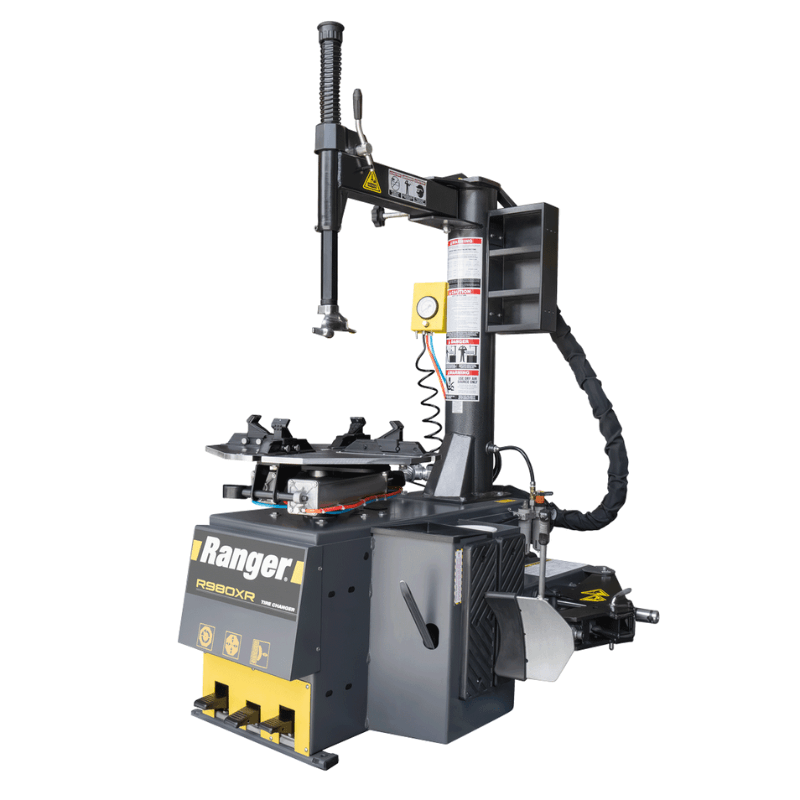

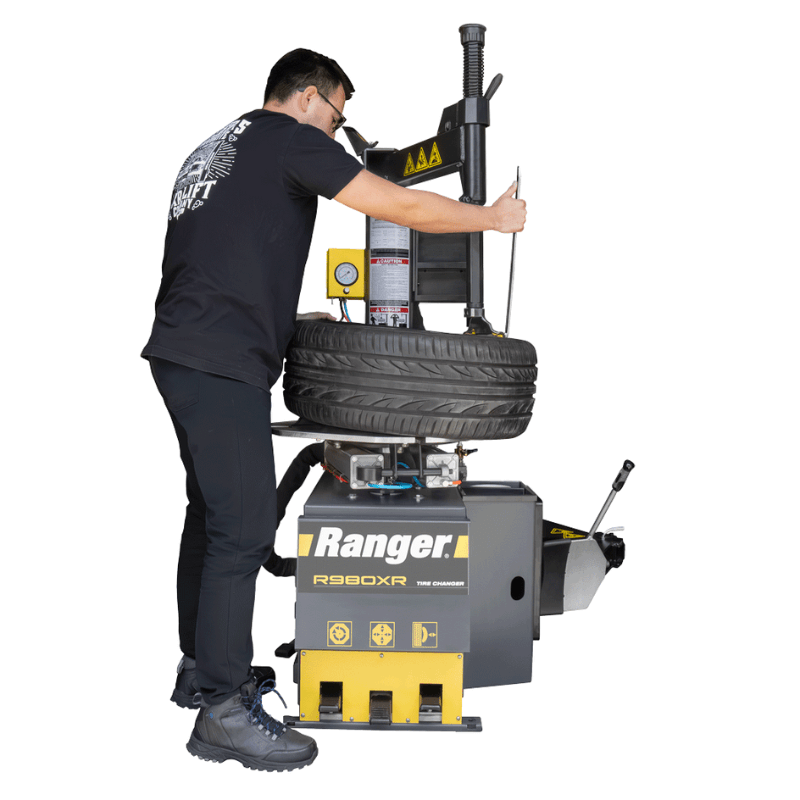

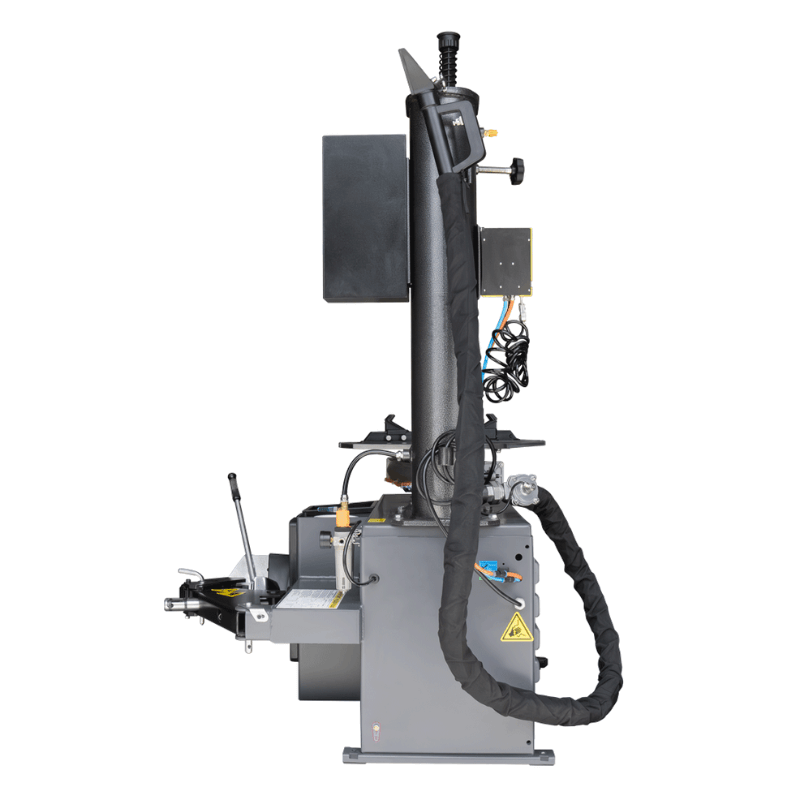

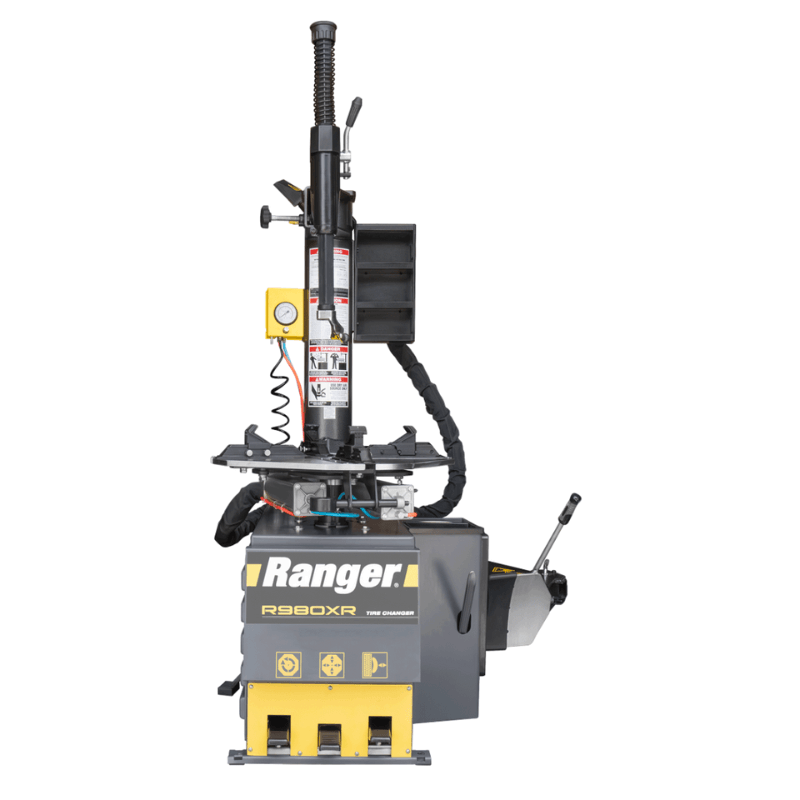

Ranger R980XR Tire Changer - Swing Arm Design

Introducing the Ranger R980XR, a tire changer so versatile it could probably double as a coffee table in a pinch—except you wouldn’t want to, because it’s busy making your life easier. With a space-saving swing-arm design, this machine snuggles right into your tight shop corners, handling everything from commuter cars to racing tires like a champ. Need to change a delicate high-end wheel? No worries—its non-marring polymer duck heads have your back (and your wheels). Plus, the stainless-steel bead breaker and high-torque electric turntable work together like a well-oiled machine… because, well, they literally are.

Maintenance? Forget about it. Thanks to its maintenance-free gearbox and advanced components, you’ll spend more time changing tires and less time fiddling with repairs. Whether you’re working in a high-pressure shop or just need a reliable sidekick for those busy days, the R980XR delivers consistent, hassle-free performance. It’s basically the workhorse every technician dreams of, minus the hay.

Tire Changer Ranger R980XR Specifications

  • Clamping Range: 8" – 30" (Internal/External)
  • Maximum Rim Width: 15" (381 mm)
  • Maximum Tire Diameter: 50" (1,270 mm)
  • Inside (Wheel) Clamping Range: 10" - 30"
  • Outside (Wheel) Clamping Range: 8" - 26"
  • Motor: 3 HP (220V AC, 50-60 Hz)
  • Air Requirement: 140–165 PSI (10–11 BAR)
  • Bead Breaking System: Dual pneumatic blade system
  • Bead Seating System: TurboBlast™ bead seating system
  • Shipping Weight: 742 lbs. (337 kg)
  • Shipping Dimensions: 45" x 50" x 68"
  • Recommended Footprint: 55" x 50" x 78"

Ranger R980XR Tire Changer Special Features

    • Wheel Clamping Method (Adjustable Clamps)
    • Table Clamping System
    • Bead Breaking System
    • Power Assist Towers
    • Tool Holder
    • Inflation Gauge With Integrated Air Dump Valve
    • Inflation Pressure Regulator/Limiter
    • Water Filter
    • Oiler / Lubricator
    • Air Regulator
    • Breaker Bar
    • Large Soap / Lubricator Bucket
    • Brush
    • Alloy-Steel Mount/Demount Head
    • Plastic-Polymer Mount/Demount Head
    • Tower Design
    • Bead Lifting Roller(s)
    • Upper Bead Assist Roller
    • Traveling Drop-Center Hold Down Device
    • Inflation Restraint Device
    • Bead Seating System
    • Tool Tray / Bin Storage
    • Motorcycle Turntable Clamps
    • Warranty
      • 2 Years on equipment structure
      • 2 Year on operating components
      • 1 Year Labor Warranty
    • Buy as a Combo Ranger R980XR + LS43B + Wheel Weights Combo
    • Buy as a Combo Ranger R980XR +DST30P + Wheel Weights Combo
    • Buy as a Combo Ranger R980XR + DST2420 +Wheel Weights Combo

    BendPak Ranger R980XR Documentation

    Ranger R980XR Installation and Operations Manual   Ranger R980XR Installation and Operations Manual

    Ranger R980XR Product Brochure   Ranger R980XR Product Brochure

    Ranger R980XR Tire Changer Optional Item (Sold Separately)
