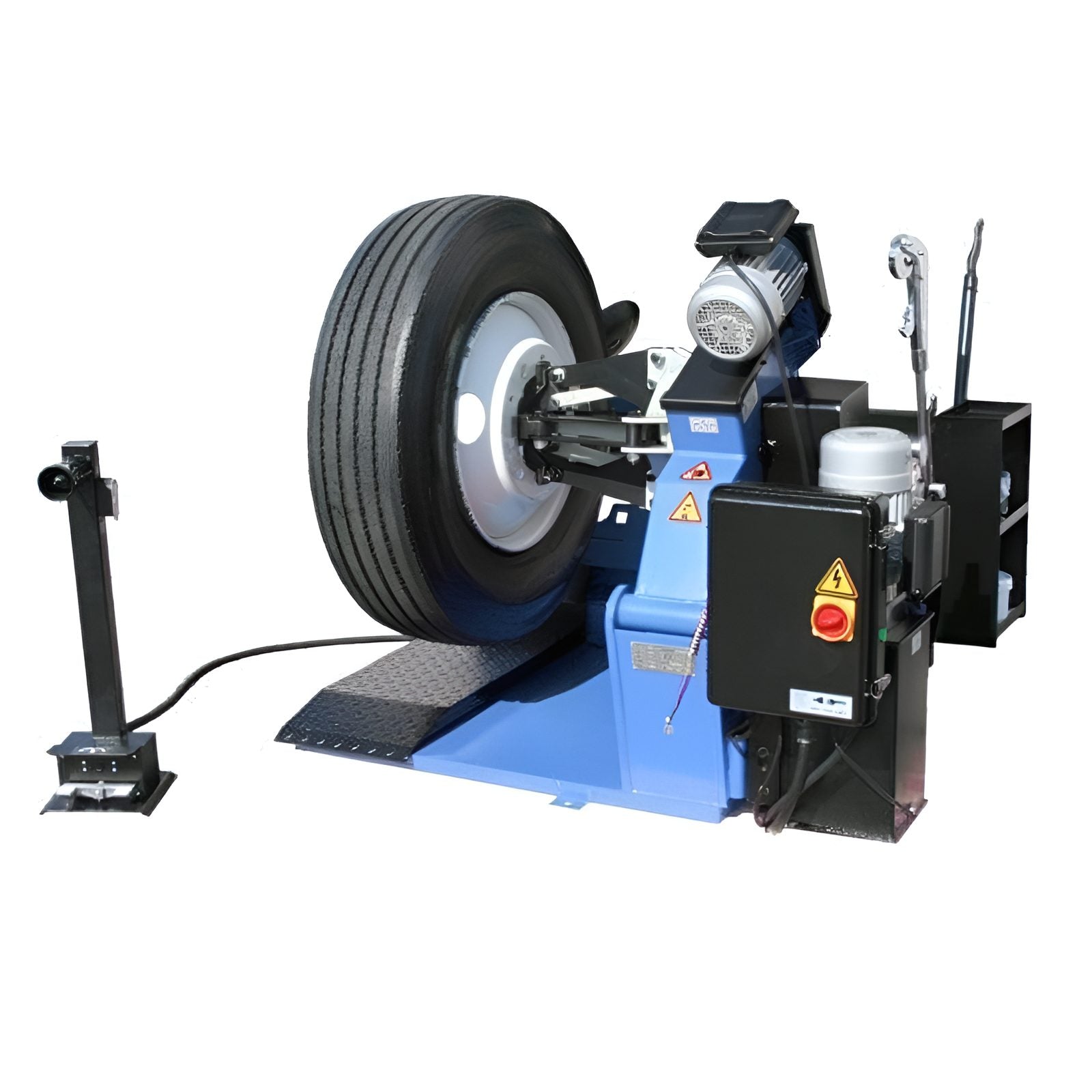

Atlas TTC301 Truck Tire Changer

TTC301 Tire Changer by Atlas

Are your current tire changers sweating bullets when faced with heavy-duty truck tires? The Atlas TTC301 Heavy Duty Truck Tire Changer is here to flex its muscles. This beast handles tires up to 63 inches in diameter and 30.5 inches wide, making those big truck tires look like bicycle wheels in comparison. It's the answer to the prayers of high-volume tire shops and farms dealing with a parade of oversized wheels.

But here's the kicker: this isn't just a one-trick pony for big tires. The TTC301 is a versatile virtuoso, with a rim clamping range from 13 to 27 inches and the ability to handle wheels weighing up to 3,300 lbs. Mind-blowing, huh? Its 3 HP chuck motor and 2 HP hydraulic motor provide the muscle, while the manual tool arm and head positioning offer the finesse. With an operating pressure of up to 1885 PSI and acoustic pressure below 70dBA, it's as powerful as it is quiet. Never let another oversized tire slow down your operation ever again.

Tire Changer TTC301 Specification:

• Rim Clamping Range: 13" - 27"
• Minimum Clamping Size W/ Alloy Adapters: 6 3/8"
• Max Wheel Weight: 3,300 lbs.
• Max Tire Diameter: 63" (5' 3")
• Max Tire Width: 30 1/2" (2' 6 1/2")
• Clamping Power: 6,614 lbs.
• Operating Pressure: 0-1885 PSI
• Acoustic Pressure: <70dBA
• Bead Breaker Force: 4112 lbs.
• Tool Arm Positioning: Manual
• Tool Head Positioning: Manual
• Construction: Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight: 1,390 lb.

TTC301 Tire Changer Special Features:

• Standard Truck Tire Changer
• Handles rims from 13″ to 27″ and tire diameters in excess of 63″
• Accommodates tires with a max width of up to 30 1/2″
• Bead Breaker

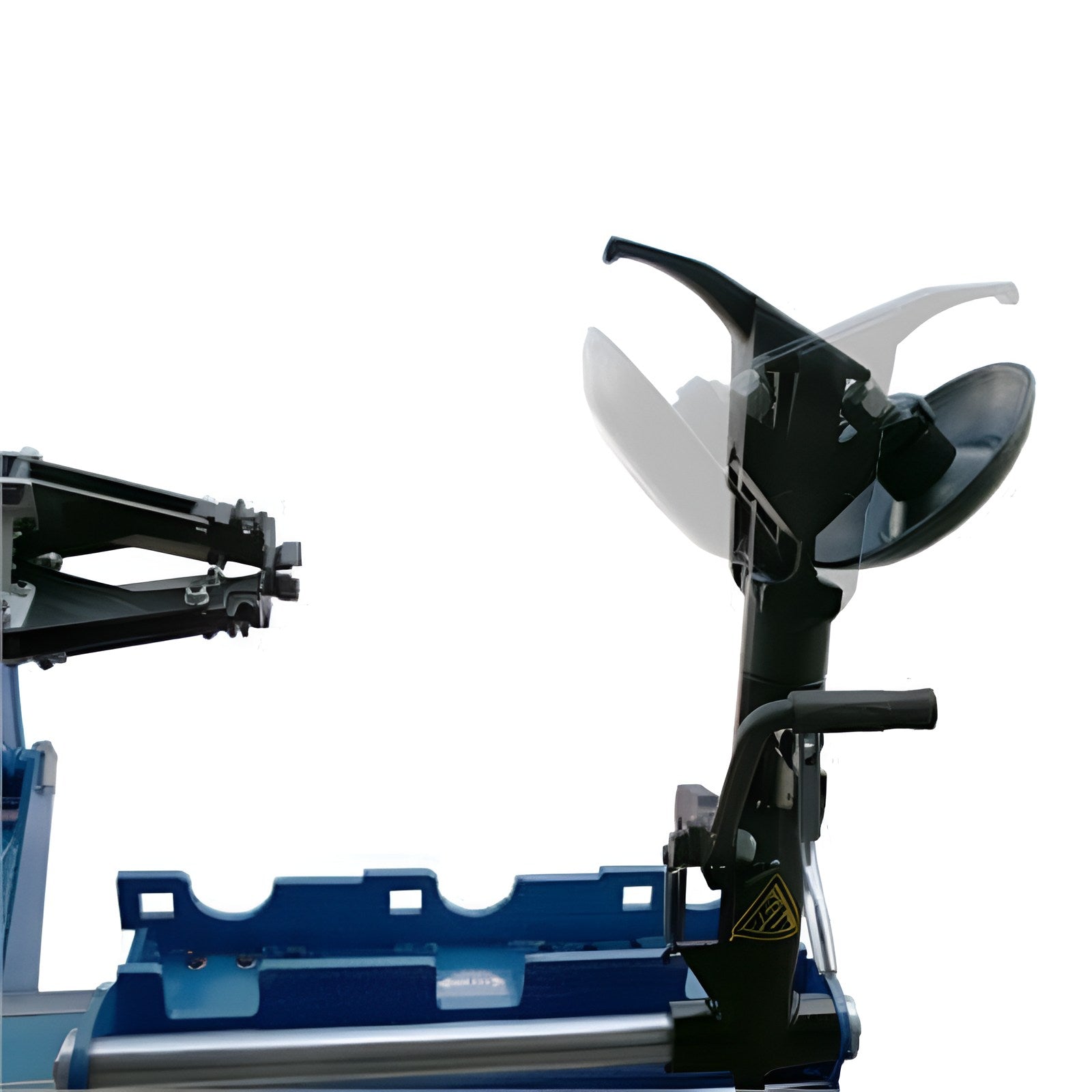

• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty
• Buy as Combo Atlas TTC301 + WBT-210

Atlas TTC301 Documentation:

  Atlas TTC301 Tire Changer Product Manual

This Item has a FLAT RATE SHIPPING FEE: $399

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ


Atlas TTC301 Video
